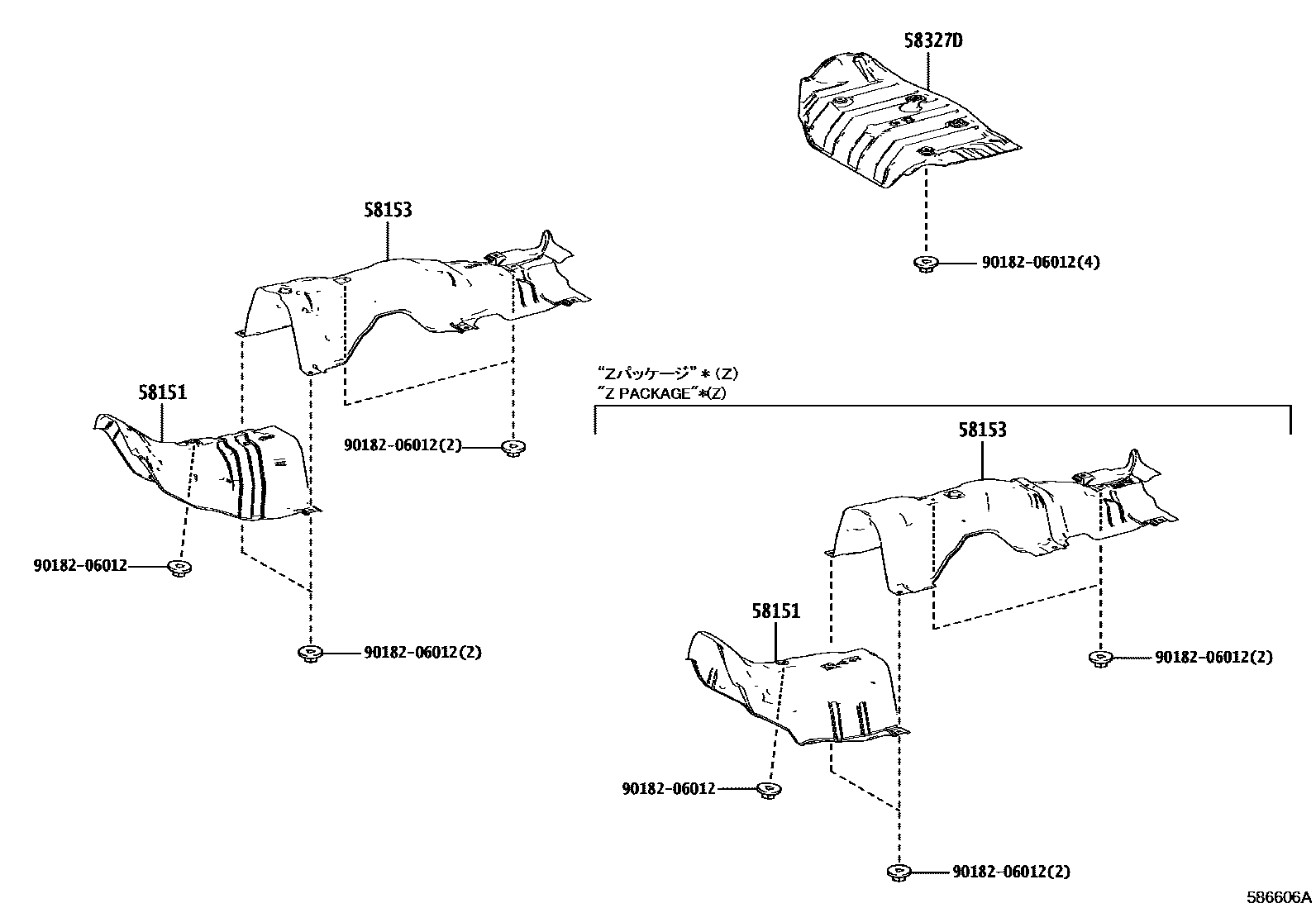

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12380iNRE210201806

main58151-12390iMZEA12..CVT201806-202508

main58151-12410iMZEA12..TAIW201806-202209

Z PACKAGE

main58151-12420iZWE211201806

main58151-16060iZWE219202209

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12230iMZEA12,NRE210,ZWE211201806-202105

sub58153-12231

main58153-12231iMZEA12..ARL202106-202508

main58153-12250iMZEA12..TAIW201806-202209

Z PACKAGE

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-12250iMZEA12..CVT201806-202508

9018206012

main90182-06012

4 parts on this diagram · 3 diagrams in section
