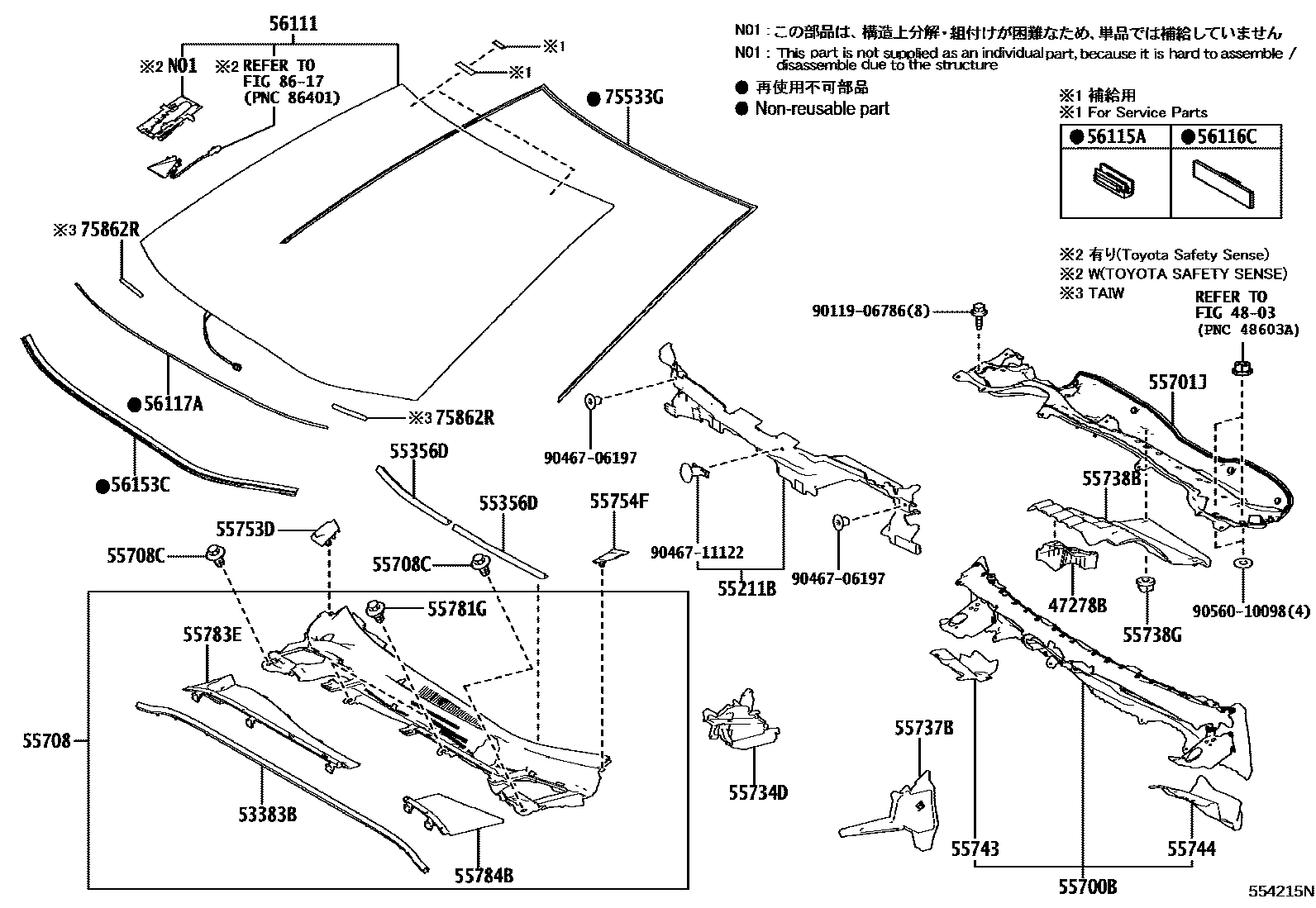

COWL PANEL & WINDSHIELD GLASS
47278BCOVER, BRAKE MASTER CYLINDER
4803
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55734DPLATE, WATER GUARD
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738GCLIP, FRONT PANEL COVER PROTECTOR
BLACK
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1298 OR 725
*D,L=1298 OR 725,Z PACKAGE&HEAD UP DISPLAY-WITH
*D,L=1298 OR 725,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
*D,L=1298 OR 725,WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)
*D,L=1298 OR 725,WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)&INSIDE REAR VIEWMIRROR-AUTOMATIC ANTI-GLARE&HEAD UP DISPLAY-WITH
*D,L=1298 OR 725,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD UP DISPLAY-WITH
*D,L=1298 OR 725,SOUTH AFRICA SPEC&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)
*D,L=1298 OR 725,Z PACKAGE
*D,L=1298 OR 725,HEAD UP DISPLAY-WITH
75533GMOULDING, WINDSHIELD, OUTSIDE
75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2
8617
9011906786
main90119-06786
9046706197
main90467-06197
9046711122
main90467-11122
9056010098
main90560-10098
32 parts on this diagram · 2 diagrams in section
