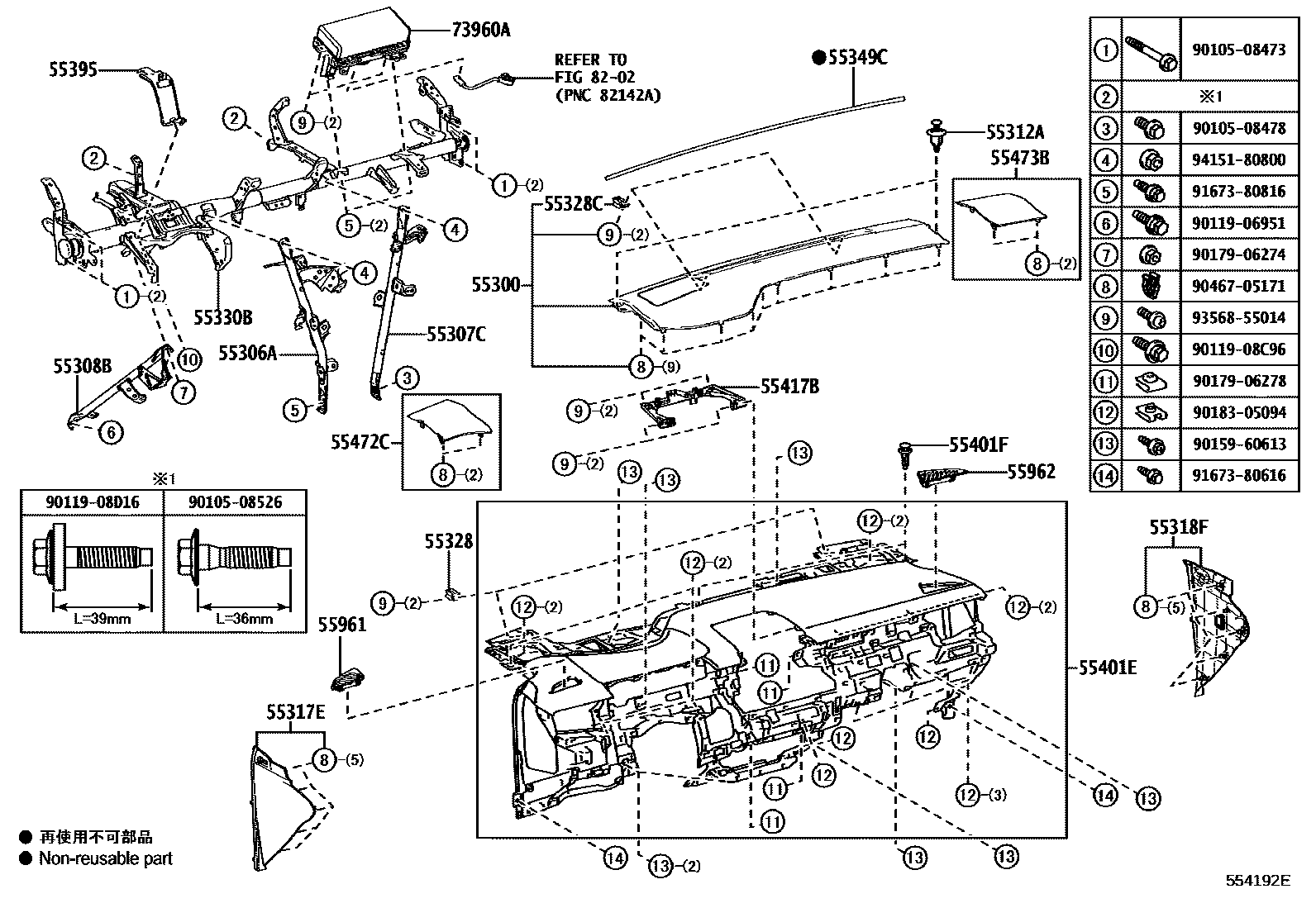

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-12040-C0iMZEA12..TAIW201806-202304

BLACK,TRIM2#,3#

main55300-12041-C0iMZEA12..TAIW202304

BLACK,TRIM2#,3#

main55300-12060-C0iMZEA12..D201806-202407

BLACK,TRIM2#

main55300-12060-C0iMZEA12..D201806-202407

BLACK,TRIM2#,3#

main55300-12061-C0iMZEA12..D202407-202508

BLACK,TRIM2#,3#

main55300-12061-C0iMZEA12..N..ARL202407-202508

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12510iMZEA12..TAIW201806-202209

main55306-12530iMZEA12,NRE210..6F¥2,080201806

main55306-12550iMZEA12..CVT..ARL¥1,780201806-202209

main55306-12570iMZEA12..ARL202209-202508

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12410iMZEA12..TAIW201806-202209

main55307-12460iMZEA12..ARL¥1,670201806-202508

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-12320iMZEA12..TAIW201806-202209

main55308-12340iMZEA12..CVT..ARL¥1,510201806-202508

55312ACLIP, INSTRUMENT PANEL

main90467-07217iMZEA12..CVT¥80201806-202508

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-12230-C0iMZEA12..CVT..D201806-202508

BLACK,TRIM2#

main55317-12230-C0iMZEA12..CVT..D201806-202508

BLACK,TRIM2#,3#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-12170-C0iMZEA12..N..ARL201806-202508

BLACK,TRIM2#,3#

main55318-12170-C0iMZEA12..N..ARL201806-202508

BLACK,TRIM2#

main55318-12190-C0iMZEA12..TAIW201806-202209

BLACK,TRIM2#,3#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iMZEA12..CVT¥340202004-202508

main55328-60090iMZEA12,NRE210,ZWE211¥340201806-202004

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-12420iMZEA12,NRE210,ZWE211¥410201806-202003

main55328-12440iMZEA12..6F;NRE210,ZWE211¥370202004-202508

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12850iMZEA12..TAIW201806-201912

sub55330-12851

main55330-12851iMZEA12..TAIW202001-202209

main55330-12860iMZEA12,NRE210,ZWE211..RHD¥20,300201806-201912

sub55330-12861¥15,300

main55330-12861iMZEA12..ARL¥15,300202001-202508

55349CCUSHION, INSTRUMENT PANEL

main55349-12190iMZEA12..6F;NRE210,ZWE211¥730201806-202209

main55349-12200iZWE219;MZEA12..TAIW¥730202209-202508

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iMZEA12..TAIW201806-202209

main55395-12040iMZEA12..6F;NRE210,ZWE211¥1,030201806-202508

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-12902-C0iMZEA12..TAIW201806-201811

BLACK,TRIM2#,3#

sub55400-12902

main55400-12902-C4iMZEA12..TAIW201811-202209

BLACK,TRIM2#,3#

sub55400-12902

main55400-12904-C0iMZEA12,NRE210,ZWE211..RHD201806-201811

BLACK,TRIM2#

sub55400-12904¥42,600

main55400-12904-C4iMZEA12..CVT..ARL201811-202508

BLACK,TRIM2#

sub55400-12904¥42,600

55401FCLIP(FOR SAFETY PAD)

main52161-16010iMZEA12..CVT¥120201806-202508

sub52161-0K040¥120

55417BRETAINER, RADIO TUNER FINISH

main55417-12060iMZEA12..TAIW¥1,170201806-202209

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-12100-C0iMZEA12..TAIW201806-202209

BLACK,TRIM2#,3#

main55472-12140-C0iMZEA12..N..ARL201806-202508

BLACK,TRIM2#

main55472-12140-C0iMZEA12..N..ARL201806-202508

BLACK,TRIM2#,3#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-12080-C0iMZEA12..TAIW201806-202209

BLACK,TRIM2#,3#

main55473-12120-C0iMZEA12..N..ARL201806-202508

BLACK,TRIM2#

main55473-12120-C0iMZEA12..CVT..D201806-202508

BLACK,TRIM2#,3#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12250-C0iMZEA12..TAIW201806-202209

BLACK,TRIM2#,3#

main55961-12260-C0iNRE210201806-202508

BLACK,TRIM2#

main55961-12260-C0iZWE211;MZEA12..6F201806

BLACK,TRIM2#,3#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12220-C0iMZEA12..TAIW201806-202209

BLACK,TRIM2#,3#

main55962-12230-C0iZWE211;MZEA12..6F201806

BLACK,TRIM2#,3#

main55962-12230-C0iMZEA12..CVT..ARL201806-202508

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12320iMZEA12..CVT¥75,600201806-202508

8202

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9010508526

main90105-08526¥100

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

9011908D16

main90119-08D16¥100

9015960613

main90159-60613¥60

9017906274

main90179-06274¥70

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

36 parts on this diagram · 8 diagrams in section
