FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE & RADIATOR SUPPORT 0002 1AIR GUIDE & RADIATOR SUPPORT 0003 1AIR GUIDE & RADIATOR SUPPORT 0004 1RADIATOR SUPPORT & FENDER APR0005 1RADIATOR SUPPORT & FENDER APR0006 1DASH PANEL 0007 1DASH PANEL

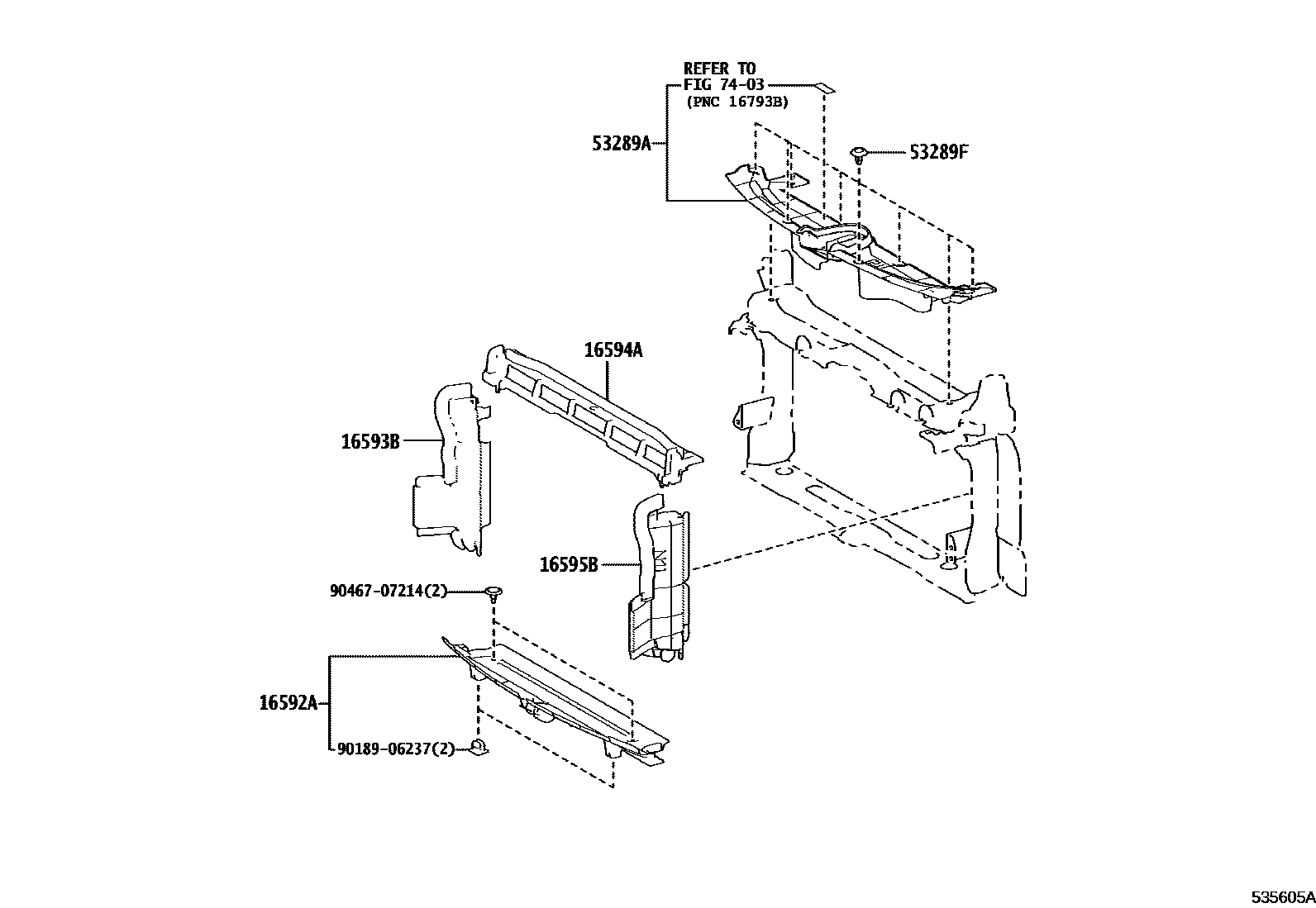

16592AGUIDE, RADIATOR AIR, NO.3

main16592-24010iM20AFKS..MZEA12..6F;8NRFTS,2ZRFXE..NRE210,ZWE211¥4,240201806-202209

sub16592-24050¥3,850

main16592-24050iM20AFKS..MZEA12..ARL¥3,850202209-202508

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24020iM20AFKS..MZEA12..6F¥1,850201806-202508

main16593-37130i8NRFTS,2ZRFXE..NRE210,ZWE211¥2,250201806

16594AGUIDE, RADIATOR AIR, NO.2

main16594-24010iM20AFKS..MZEA12..6F¥2,070201806-202209

main16594-24040iM20AFKS..MZEA12..ARL¥2,400202209-202508

main16594-37010i2ZRFXE..ZWE211¥2,010201806

main16594-47010i8NRFTS..NRE210¥2,570201806

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24020iM20AFKS..MZEA12..CVT¥2,000201806-202508

main16595-37150i2ZRFXE..ZWE211¥2,570201806

main16595-47030i8NRFTS..NRE210¥2,650201806

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-12080iZWE211¥6,200201806-202208

main53289-12090iMZEA12,NRE210¥4,850201806-202208

main53289-12120iZWE219¥4,790202209

main53289-12130iMZEA12..ARL¥4,090202209-202508

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07214iZWE219¥70202307-202311

main90467-07217iMZEA12..TAIW¥80201806-202508

7403

9018906237

main90189-06237¥100

9046707214

main90467-07214¥70

9 parts on this diagram · 7 diagrams in section
