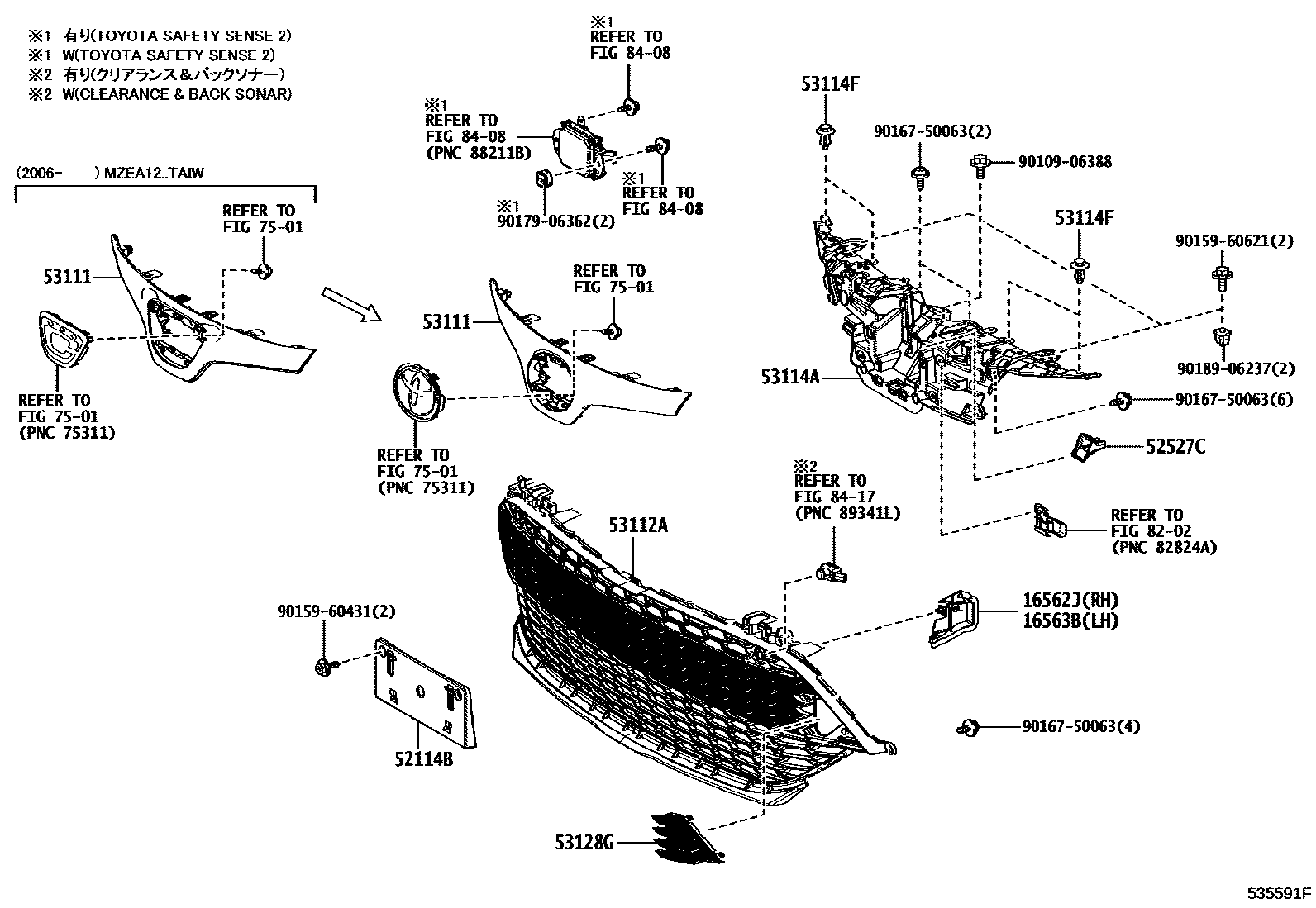

RADIATOR GRILLE

0001 1 0002 1

16562JSEAL, RADIATOR TO SUPPORT, NO.2

main16562-37050iM20AFKS..MZEA12..CVT¥780201806-202508

16563BSEAL, RADIATOR TO SUPPORT, NO.3

main16563-37050iM20AFKS..MZEA12..CVT¥780201806-202508

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-12310iMZEA12..CVT201806-202209

main52114-12440iZWE219;MZEA12..TAIW202209-202508

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-12060iMZEA12..6F;NRE210,ZWE211¥510201806-202508

53111GRILLE, RADIATOR

main53111-12E90iMZEA12..CVT..ARL¥8,200201806-202508

NO PAINT REQ.

main53111-12F20iMZEA12..TAIW¥8,300202006-202209

NO PAINT REQ.

53112AGRILLE, RADIATOR, LOWER

main53102-12140iMZEA12..N..ARL¥15,700202107-202209

main53102-12380iZWE219¥8,700202209-202508

main53112-12540iMZEA12..6F¥10,400201806

X PACKAGE

main53112-12540iMZEA12..CVT..D¥10,400201806-202209

main53112-12550iNRE210,ZWE211¥14,800201806-202209

main53112-12770iMZEA12..TAIW202209

Z PACKAGE&CLEARANCE & BACK SONAR-WITHOUT

main53112-12770iMZEA12..TAIW202209

CLEARANCE & BACK SONAR-WITHOUT

53114AGRILLE, RADIATOR, INNER

main53114-12230iMZEA12..CVT¥4,980201806-202508

53114FCLIP, RADIATOR GRILLE

main90467-05063-C0iMZEA12..CVT201806-202508

BLACK

sub90467-05063¥70

53128GGRILLE, RADIATOR, LOWER SIDE LH

main53128-12090iZWE211¥660201806

X PACKAGE

main53128-12090iMZEA12..CVT..D¥660201806-202209

main53128-12100iNRE210,ZWE211¥940201806-202209

main53128-12220iMZEA12..ARL¥740202209-202508

7501

8202

8408

8417

9010906388

main90109-06388¥70

9015960431

main90159-60431¥70

9015960621

main90159-60621¥60

9016750063

main90167-50063¥60

9017906362

main90179-06362¥60

9018906237

main90189-06237¥100

19 parts on this diagram · 2 diagrams in section
