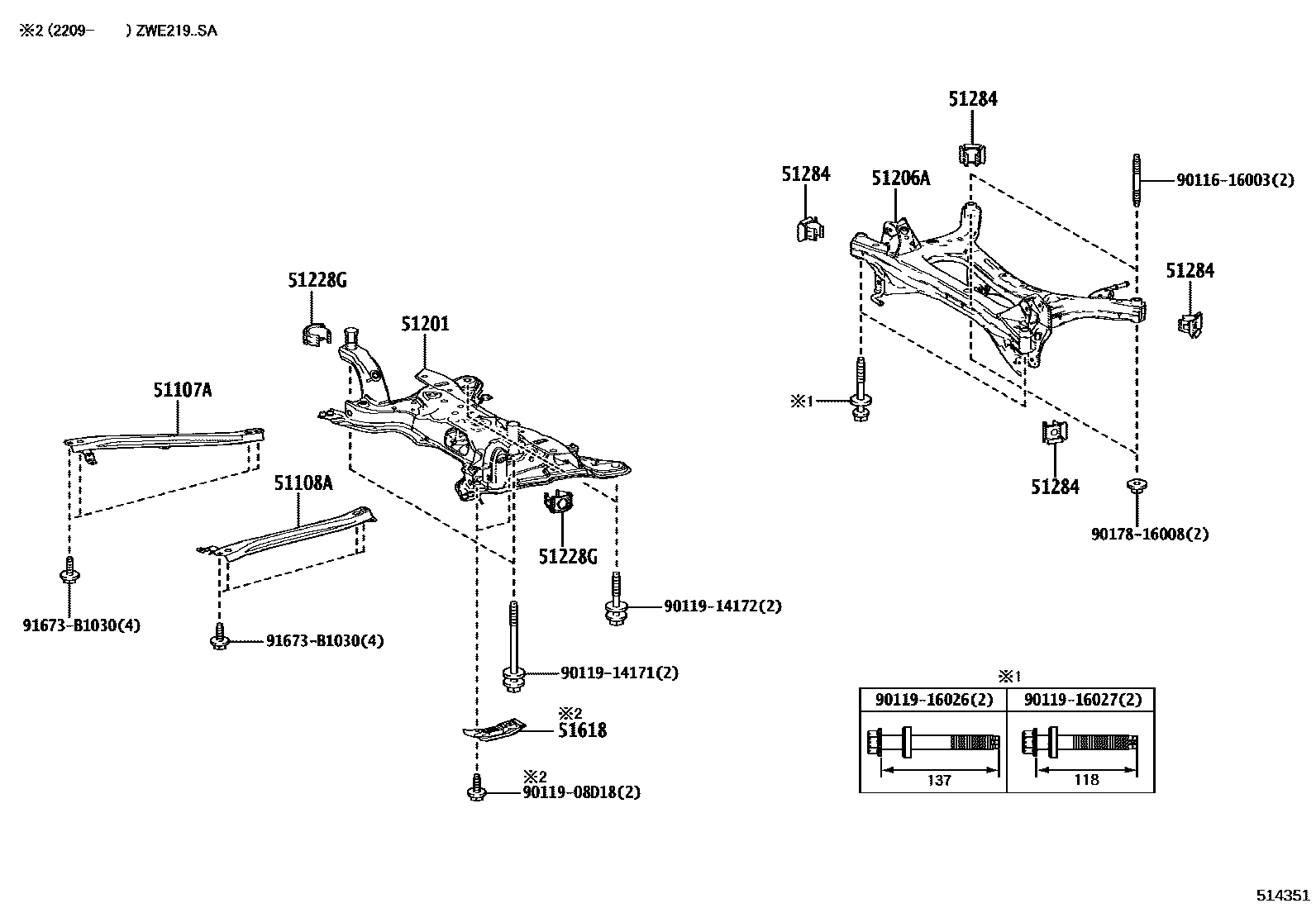

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0003 1UNDER COVER(Z PACKAGE) 0004 1UNDER COVER(Z PACKAGE)

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47010iZWE219..SA¥4,110202209

main51107-47020iMZEA12..ARL¥3,020201806-202508

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47010iZWE219..SA¥4,110202209

main51108-47020iMZEA12..6F;NRE210,ZWE211¥3,020201806-202508

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47071iMZEA12,NRE210,ZWE211¥69,200201806-201902

sub51201-47072¥57,600

main51201-47072iMZEA12..CVT¥57,600201903-202508

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-47012iMZEA12,NRE210,ZWE211¥60,000201806-202011

sub51206-47013¥50,000

main51206-47013iMZEA12..6F;NRE210,ZWE211¥50,000202012-202508

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iMZEA12..CVT¥220201806-202508

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMZEA12,NRE210,ZWE211¥340201806-202012

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010iZWE219..SA202209

9011616003

main90116-16003¥540

9011908D18

main90119-08D18¥80

9011914171

main90119-14171¥430

9011914172

main90119-14172¥310

9011916026

main90119-16026¥610

9011916027

main90119-16027¥540

9017816008

main90178-16008¥190

91673B1030

main91673-B1030¥120

15 parts on this diagram · 4 diagrams in section
