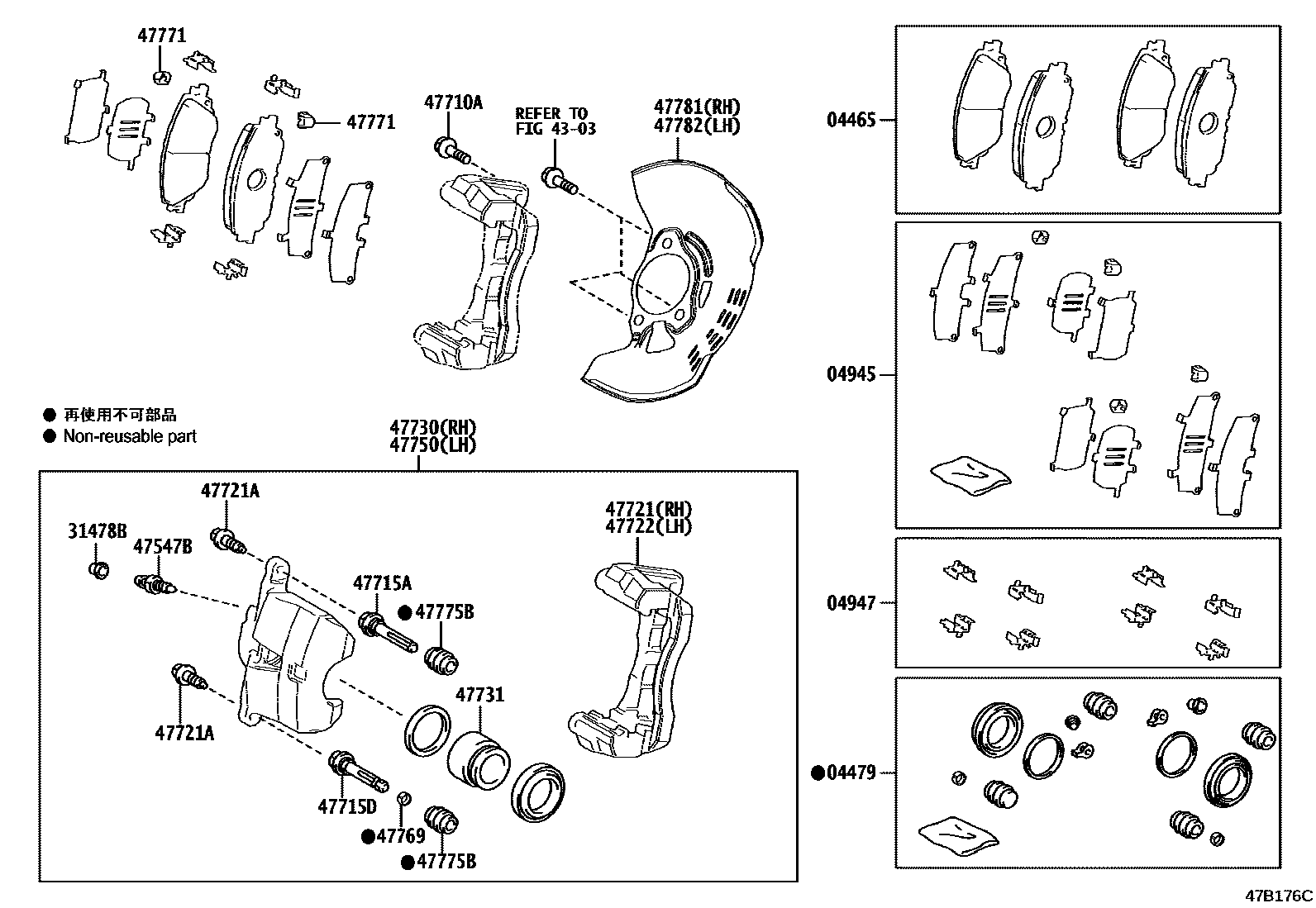

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12670iMZEA12..CVT201806-202508

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12130iMZEA12..CVT201806-202508

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12120iMZEA12..CVT201806-202508

04947FITTING KIT, DISC BRAKE, FRONT

main04947-12050iMZEA12,NRE210,ZWE211201806-201809

sub04947-47030

main04947-47030iMZEA12..CVT201810-202508

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMZEA12..CVT201806-202508

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMZEA12..CVT201806-202508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMZEA12..CVT201806-202508

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iMZEA12..CVT201806-202508

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iMZEA12..CVT201806-202508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12B10iMZEA12..CVT201806-202508

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iMZEA12..CVT201806-202508

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12B10iMZEA12..CVT201806-202508

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B10iMZEA12..CVT201806-202508

47731PISTON, FRONT DISC BRAKE

main47731-52210iMZEA12..CVT201806-202508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B10iMZEA12..CVT201806-202508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMZEA12..CVT201806-202508

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iMZEA12..CVT201806-202508

47775BBOOT, BUSH DUST, NO.1

main47775-52190iMZEA12..CVT201806-202508

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080iMZEA12..CVT201806-202508

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080iMZEA12..CVT201806-202508

21 parts on this diagram · 1 diagram in section
