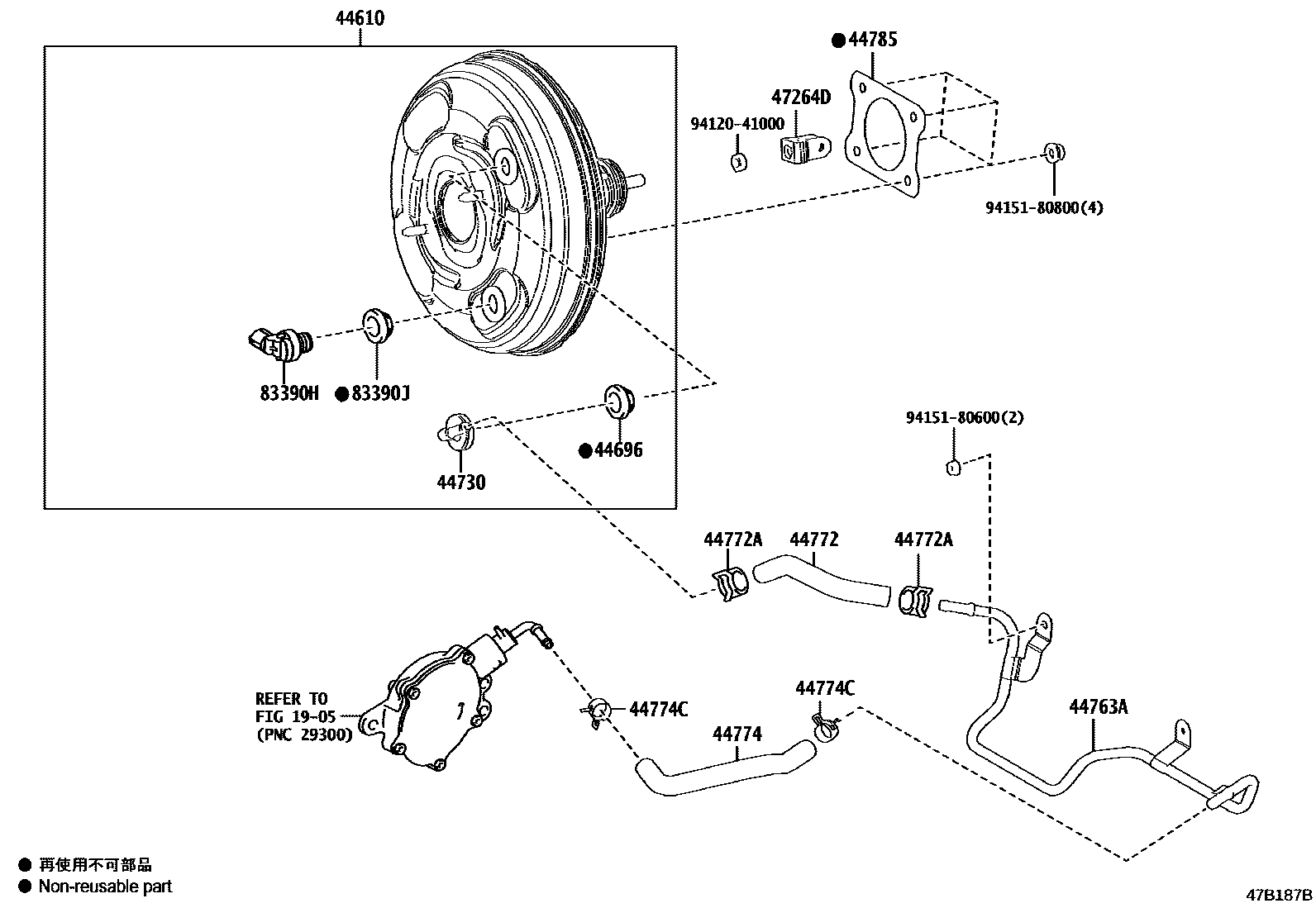

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905

44610BOOSTER ASSY, BRAKE

main44610-12M70iMZEA12..TAIW201806-202209

main44610-12M90iNRE210;MZEA12..6F201806-202508

44696GROMMET, CHECK VALVE

main90480-24439iMZEA12..ARL201806-202508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMZEA12..CVT201806-202508

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12570iNRE210201806

main44763-12590iMZEA12..6F201806-202508

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12780iMZEA12..TAIW201806-202209

main44772-12810iMZEA12..CVT..ARL201806-202508

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNRE210;MZEA12..6F201806-202508

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12800iNRE210201806

main44774-12860iMZEA12..CVT..ARL201806-202508

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iMZEA12..CVT..ARL201806-202508

44785GASKET, BRAKE BOOSTER

main44785-12040iMZEA12..6F201806-202508

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMZEA12..ARL202305-202508

main47264-52060iMZEA12..TAIW201806-202209

main47264-63010iMZEA12..ARL201806-202304

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA12..CVT201806-202508

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iMZEA12..CVT201806-202508

9412041000

main94120-41000

9415180600

main94151-80600

9415180800

main94151-80800

16 parts on this diagram · 3 diagrams in section
