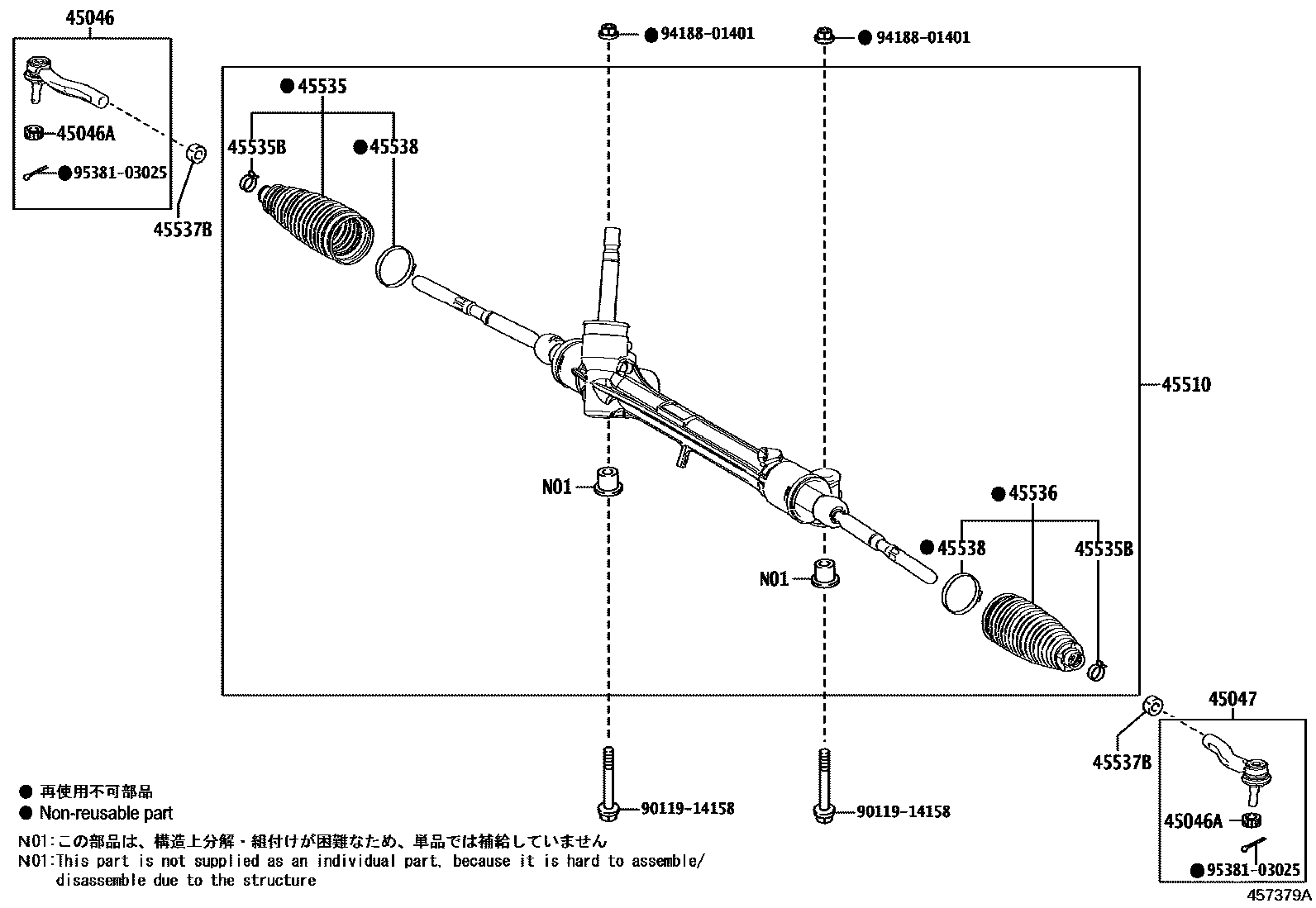

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iMZEA12..6F;NRE210,ZWE211201806

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMZEA12..CVT201806-202209

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iMZEA12..6F;NRE210,ZWE211201806

45510GEAR ASSY, STEERING

main45510-12540iMZEA12..6F;NRE210,ZWE211201806

main45510-12600iZWE219202209

main45510-12590supersedes 45510-12580iMZEA12..TAIW202209

TIRE&DISC WHEEL-225/40R18 SUMMER TIRE ALUMINUM WHEEL

main45510-12650iMZEA12..N..ARL202209-202508

TIRE&DISC WHEEL-225/40R18 SUMMER TIRE ALUMINUM WHEEL

main45510-47150iMZEA12..N..ARL201806-202209

TIRE&DISC WHEEL-225/40R18 SUMMER TIRE ALUMINUM WHEEL

main45510-47170supersedes 45510-12580iMZEA12..TAIW201806-202209

TIRE&DISC WHEEL-225/40R18 SUMMER TIRE ALUMINUM WHEEL

45535BOOT, STEERING RACK, NO.1

main45535-59075iZWE219;MZEA12..TAIW202209

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iMZEA12..CVT201806-202209

45536BOOT, STEERING RACK, NO.2

main45535-59075iMZEA12..CVT201806-202209

45537BNUT, RACK END LOCK

main90178-16001×2iZWE219;MZEA12..TAIW202209

45538RETAINER, STEERING RACK BOOT

main45538-48020×2iMZEA12..CVT201806-202209

9011914158

main90119-14158

9418801401

main94188-01401

9538103025

main95381-03025

12 parts on this diagram · 2 diagrams in section
