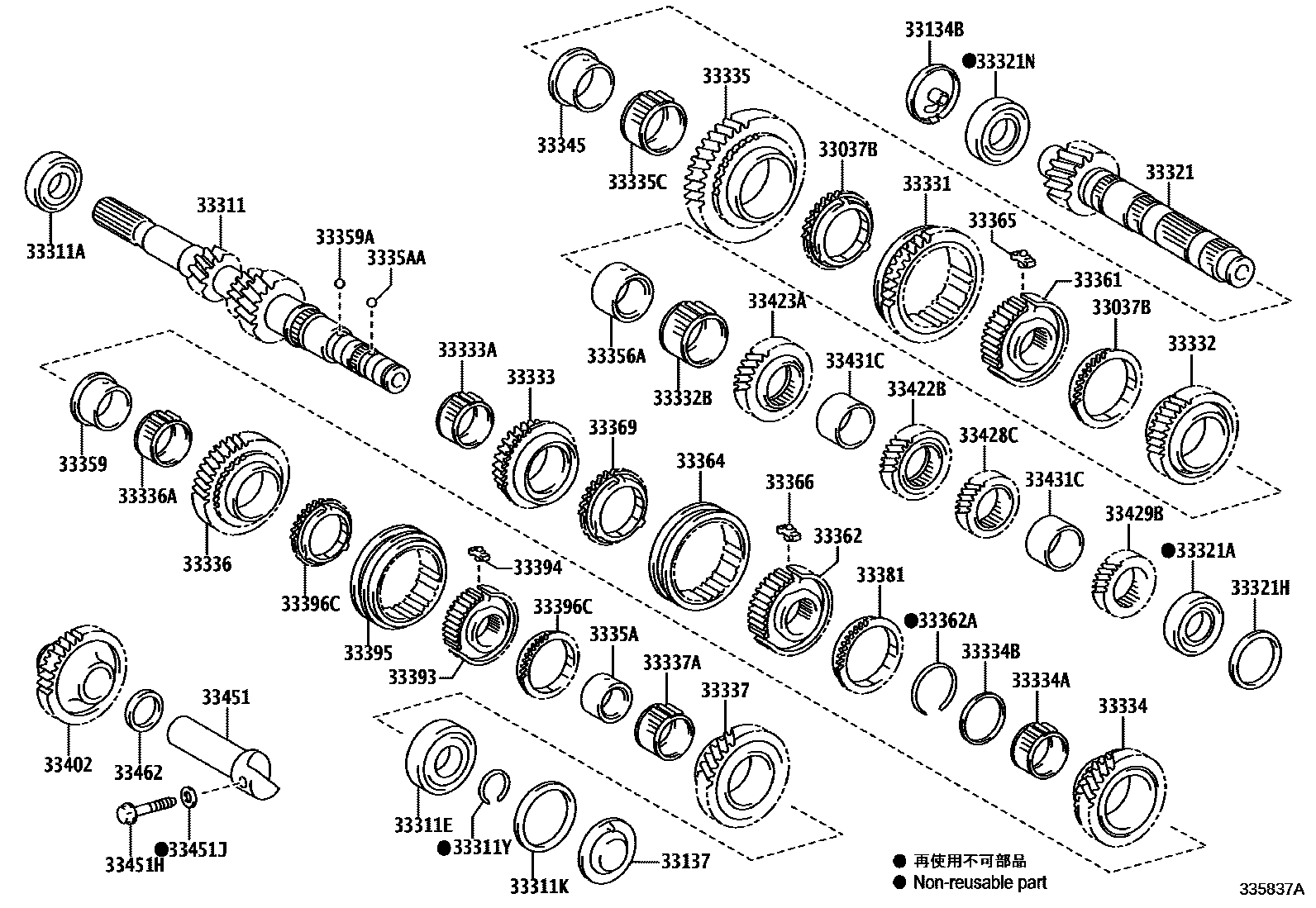

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.30,MARK 08
T=1.35,MARK 09
T=1.40,MARK 10
T=1.45,MARK 11
T=1.50,MARK 12
T=1.55,MARK 13
T=1.60,MARK 14
T=1.65,MARK 15
T=1.70,MARK 16
T=1.75,MARK 17
T=1.80,MARK 18
T=1.85,MARK 19
T=1.20,MARK B
T=1.25,MARK C
T=1.30,MARK D
T=1.35,MARK E
T=1.40,MARK F
T=1.45,MARK G
T=1.50,MARK H
T=1.55,MARK J
T=1.60,MARK K
T=1.65,MARK L
T=1.70,MARK M
T=1.75,MARK N
T=1.80,MARK P
T=1.85,MARK Q
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=1.65,MARK A
T=1.70,MARK B
T=1.75,MARK C
T=1.80,MARK D
T=1.85,MARK E
T=1.90,MARK F
T=1.95,MARK G
T=2.00,MARK H
T=2.05,MARK J
T=2.10,MARK K
T=2.15,MARK L
T=2.20,MARK M
T=2.25,MARK N
T=2.30,MARK P
T=1.95,MARK 0
T=2.01,MARK 1
T=2.07,MARK 2
T=2.13,MARK 3
T=2.19,MARK 4
T=2.25,MARK 5
T=1.83,MARK 6
T=1.89,MARK 7
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.750,MARK 50
T=1.755,MARK 51
T=1.800,MARK 52
T=1.825,MARK 53
T=1.850,MARK 54
T=1.875,MARK 55
T=1.900,MARK 56
T=1.925,MARK 57
T=1.950,MARK 58
T=1.975,MARK 59
T=2.000,MARK 60
T=2.025,MARK 61
T=2.050,MARK 62
T=2.075,MARK 63
T=2.100,MARK 64
T=2.125,MARK 65
T=2.150,MARK 66
T=2.175,MARK 67
T=2.200,MARK 68
T=2.225,MARK 69
T=2.250,MARK 70
T=2.275,MARK 71
T=2.300,MARK 72
T=2.325,MARK 73
T=2.350,MARK 74
T=2.375,MARK 75
T=2.400,MARK 76
T=2.425,MARK 77
T=2.450,MARK 78
T=2.475,MARK 79
T=2.500,MARK 80
T=2.525,MARK 81
T=2.550,MARK 82
T=2.575,MARK 83
T=2.600,MARK 84
T=2.625,MARK 85
T=2.650,MARK 86
T=2.675,MARK 87
T=2.700,MARK 88
T=2.725,MARK 89
T=2.750,MARK 90
T=2.775,MARK 91
T=2.800,MARK 92
T=1.600,MARK A
T=1.625,MARK B
T=1.650,MARK C
T=1.675,MARK D
T=1.700,MARK E
T=1.725,MARK F
T=1.750,MARK G
T=1.775,MARK H
T=1.800,MARK J
T=1.825,MARK K
T=1.850,MARK L
T=1.875,MARK M
T=1.900,MARK N
T=1.925,MARK P
T=1.950,MARK Q
T=1.975,MARK R
T=2.000,MARK S
T=2.025,MARK T
T=2.050,MARK U
T=2.075,MARK V
T=2.100,MARK W
T=2.125,MARK X
T=2.150,MARK Y
T=2.175,MARK Z
T=2.200,MARK 1
T=2.225,MARK 2
T=2.250,MARK 3
T=2.275,MARK 4
T=2.300,MARK 5
T=2.325,MARK 6
T=2.350,MARK 7
T=2.375,MARK 8
T=2.400,MARK 9
T=2.425,MARK 10
T=2.450,MARK 11
T=2.475,MARK 12
T=2.500,MARK 13
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33359RACE, 5TH GEAR BEARING INNER
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
3335ARACE, 6TH GEAR BEARING, INNER(MTM)
3335AABALL, 6TH GEAR BEARING, INNER RACE ROCK(MTM)
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.27,MARK 0
T=2.32,MARK 1
T=2.37,MARK 2
T=2.42,MARK 3
T=2.47,MARK 4
T=2.52,MARK 5
T=2.57,MARK 6
T=2.62,MARK 7
T=2.30,MARK A
T=2.36,MARK B
T=2.42,MARK C
T=2.48,MARK D
T=2.54,MARK E
T=2.60,MARK F
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33381RING, 2ND SYNCHRONIZER OUTER
33394KEY, SYNCHROMESH SHIFTING, NO.3
33396CRING, SYNCHRONIZER, NO.5(MTM)
33402GEAR SUB-ASSY, REVERSE IDLER
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
(J)
(L)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
54 parts on this diagram · 3 diagrams in section
