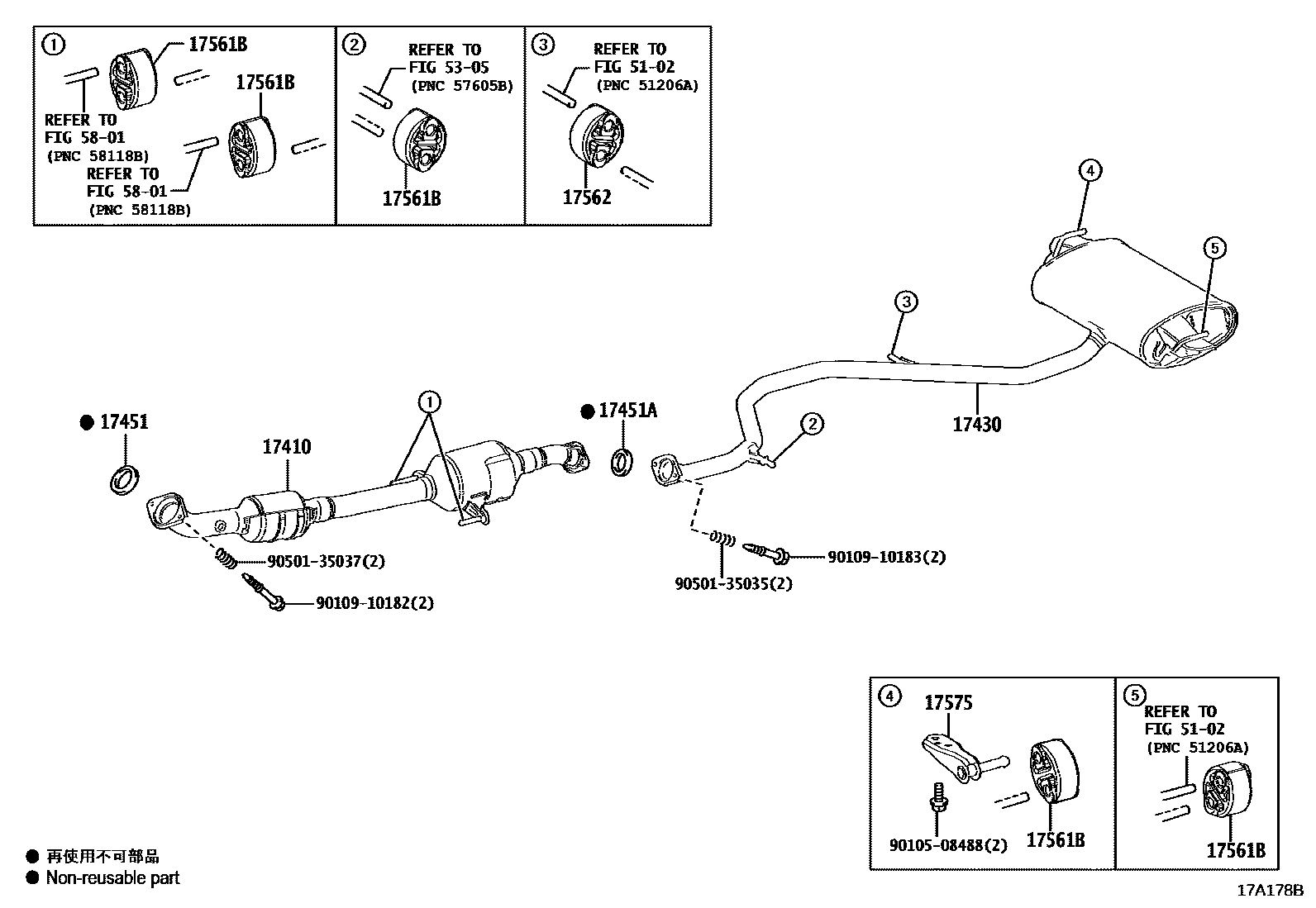

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-24260iM20AFKS..MZEA12201806-202004

sub17410-24261

sub17451-24010

sub17451-24020

main17410-24261iM20AFKS..MZEA12..CVT202004-202508

main17410-37B20i2ZRFXE..ZWE211201806-202004

sub17410-37B21

sub17451-24010

sub17451-24020

main17410-37B21i2ZRFXE..ZWE211202004

main17410-37C90i2ZRFXE..ZWE219202209-202404

main17410-37G00i2ZRFXE..ZWE219202404

main17410-47340i8NRFTS..NRE210201806

17430PIPE ASSY, EXHAUST, TAIL

main17430-37710i2ZRFXE..ZWE219201806

main17430-47270i8NRFTS..NRE210;M20AFKS..MZEA12..6F201806-202508

17451GASKET, EXHAUST PIPE

main17451-24010iM20AFKS..MZEA12..ARL202004-202508

main17451-28040iM20AFKS,2ZRFXE..MZEA12,ZWE211201806-202004

sub17451-28041

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i8NRFTS..NRE210201806-202004

sub17451-23043

main17451-24020iM20AFKS..MZEA12..CVT202004-202508

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040iM20AFKS..MZEA12..ARL201806-202508

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010iM20AFKS..MZEA12..CVT201806-202508

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030iM20AFKS..MZEA12..CVT201806-202508

5102

5305

5801

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

15 parts on this diagram · 3 diagrams in section
