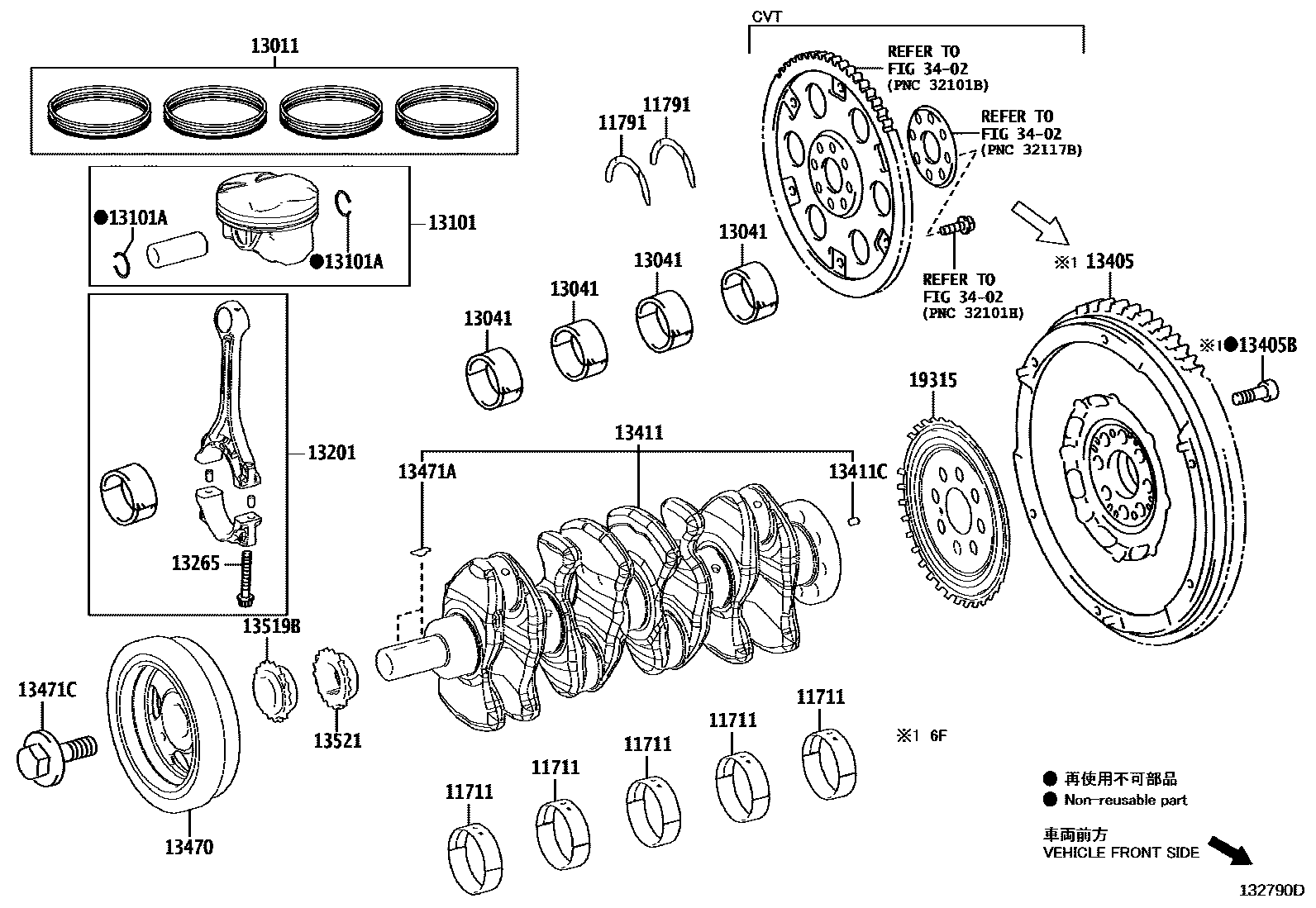

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
STD
STD
13011RING SET, PISTON
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
(J)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13519BSPROCKET, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
3402
21 parts on this diagram · 3 diagrams in section
