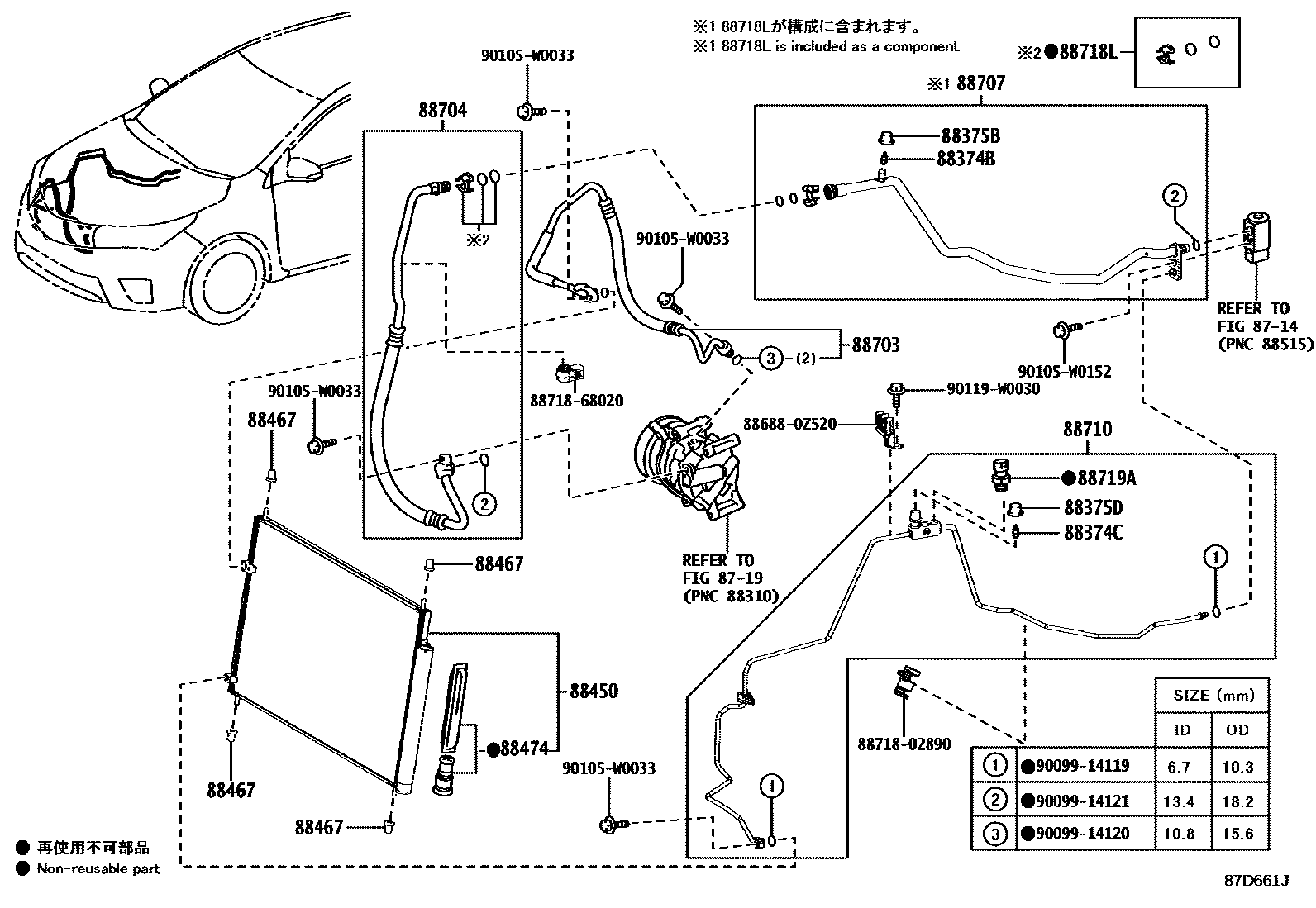

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-02020iNDE180,NRE180,ZRE18#..SAP201401-201701

AIR CONDITIONER-WITHOUT

main88374-30010iZRE18#..D..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

88374CVALVE, SERVICE, NO.2

main88374-02020iZRE182201912

main88374-30010iZRE18#..D..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

88375BCAP, SERVICE VALVE, NO.1

main88375-02140iNDE180,NRE180,ZRE18#..SAP201401-201701

AIR CONDITIONER-WITHOUT

main88375-30290iZRE18#..D..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

88375DCAP, SERVICE VALVE, NO.2

main88375-02150iNDE180,NRE180,ZRE18#..SAP201401-201701

AIR CONDITIONER-WITHOUT

main88375-30280iNDE180..TUP201306-201605

88450CONDENSER ASSY, W/RECEIVER

main88450-02280iNDE180..TUP201306-201605

main88450-02300iNDE180,NRE180,ZRE18#..SAP201401-201701

AIR CONDITIONER-WITHOUT

main88450-02520iNRE180..N..TUP201606-201808

AIR CONDITIONER-MANUAL AIR CONDITIONER

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iNDE180..TUP201306-201605

88474DRYER, COOLER

main88474-02220iZRE182201912

main88474-12010iNRE180..N..TUP201606-201808

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88474-17010iNDE180..TUP201306-201605

88703HOSE SUB-ASSY, DISCHARGE

main88703-02870iNDE180..TUP201306-201605

main88703-02880iZRE18#..SAP201701-201912

AIR CONDITIONER-COOLER LESS

main88703-02890iNRE180..D..SAP201401-201701

AIR CONDITIONER-WITHOUT

main88703-02C40iZRE18#..N..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-02C50iNRE180..N..TUP201606-201808

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88703-0Z010iNDE180..SAP201401-201701

AIR CONDITIONER-WITHOUT

88704HOSE SUB-ASSY, SUCTION

main88704-0Z130iZRE18#..N..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-0Z140iNRE180..N..TUP201606-201808

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88704-0Z150iNDE180..TUP201606-201901

main88704-0Z190iZRE18#..SAP201701-201912

AIR CONDITIONER-COOLER LESS

main88704-0Z200iNRE180..D..SAP201701-201912

AIR CONDITIONER-COOLER LESS

main88704-0Z210iNDE180..SAP201701-201912

AIR CONDITIONER-COOLER LESS

88707PIPE SUB-ASSY, SUCTION

main88707-02200iZRE18#..D..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88707-02250iNDE180,NRE180,ZRE18#..SAP201701-201912

AIR CONDITIONER-COOLER LESS

88710TUBE ASSY, AIR CONDITIONER

main88710-02A80iNDE180..SAP201401-201701

AIR CONDITIONER-WITHOUT

main88710-02C00iNRE180..N..TUP201606-201808

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88710-0Z440iNDE180..TUP201306-201605

main88710-0Z480iNRE180,ZRE181..D..SA201401-201701

AIR CONDITIONER-WITHOUT

main88710-0Z500iZRE18#..GEN..SAP201401-201701

88718LCLAMP, PIPING

main88718-52260iZRE18#..N..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88718-52280iNDE180..TUP201306-201605

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNDE180,NRE180,ZRE18#..SAP201606-201912

886880Z520BRACKET, COOLER DIAPHRAGM

main88688-0Z520

8871802890PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02890

8871868020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-68020

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

90105W0033

main90105-W0033

90105W0152

main90105-W0152

90119W0030

main90119-W0030

24 parts on this diagram · 6 diagrams in section
