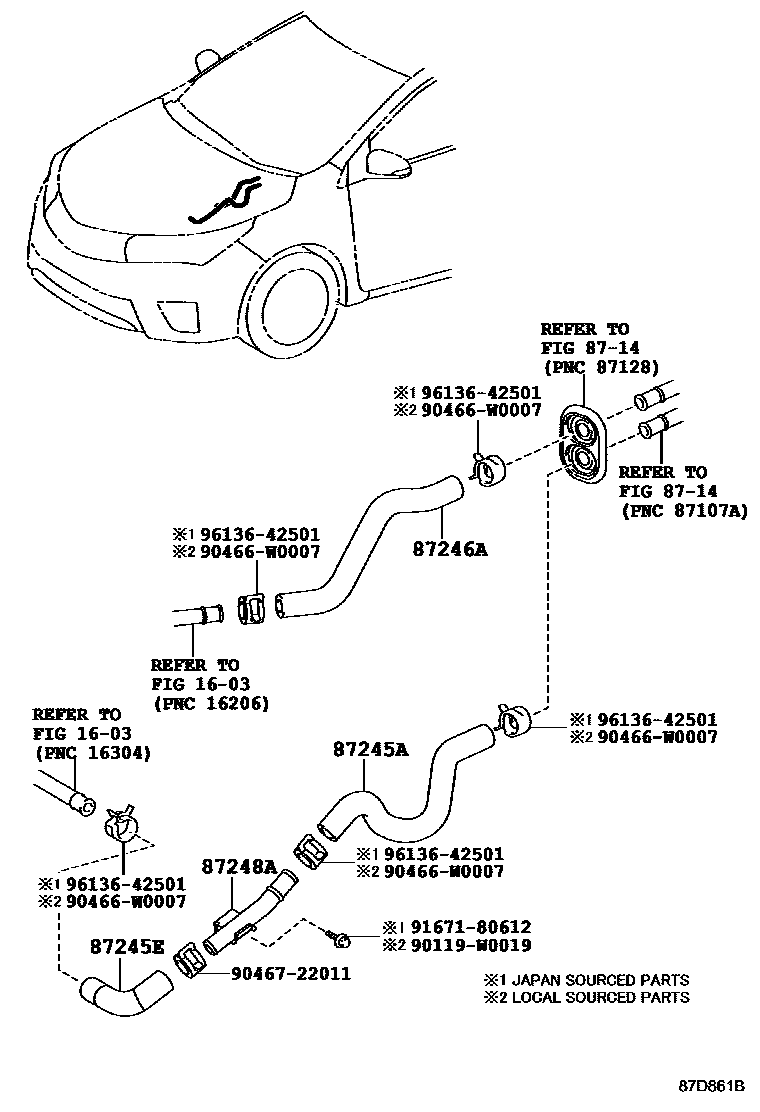

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-02640iNRE180..TUP201606-201808

main87245-02F10iNDE180..TUP201606-201901

main87245-02P00iZRE18#..TUP201606-201901

main87245-12F10iNDE180..SAP201401-201701

main87245-12G10iZRE182201912

87245EHOSE, HEATER WATER, INLET E

main87245-02F00iNDE180..TUP201606-201901

87246AHOSE, HEATER WATER, OUTLET A

main87209-05041iZRE182..CVT201912

main87245-02870iNRE180..SAP201401-201701

main87245-02A20iZRE181..6F..TUP201606-201901

main87245-02F90iNDE180..TUP201606-201901

main87245-12A10iZRE18#..6F..SAP201701-201912

main87245-12F70iNDE180..SAP201701-201912

87248APIPE, HEATER WATER INLET, A

main87248-02040iNDE180..TUP201306-201605

90119W0019

main90119-W0019

90466W0007

main90466-W0007

9046722011

main90467-22011

9167180612

main91671-80612

9613642501

main96136-42501

11 parts on this diagram · 4 diagrams in section
