HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL HEATER 0004 1AUTO AIR CONDITIONER 0005 1MANUAL AIR CONDITIONER 0006 1MANUAL HEATER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02050iZRE182..G..GEN201912

main82212-02060iZRE182..G..SA201912

main82212-02010iNDE180..N..TUP201306-201605

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02790iNDE180..TUP201306-201605

main87050-02791supersedes 87050-02D91iNDE180..TUP201606-201901

main87050-02A30iNRE180,ZRE18#..SA201701-201912

main87050-02A50iZRE182..G..SA201912

main87050-02A90iZRE18#..GEN..SAP201701-201912

main87050-02B10iZRE182..G..GEN201912

main87050-02E00iNDE180..SAP201401-201701

main87050-02800iNDE180..D..TUP201505-201605

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

main87050-02A70iNRE180,ZRE181..D..SA201401-201701

AIR CONDITIONER-WITHOUT

main87050-02E10iNDE180..D..SAP201401-201701

AIR CONDITIONER-WITHOUT

main87050-02G70iNDE180..N..SAP201401-201701

AIR CONDITIONER-AUTO AIR CONDITIONER

main87050-05790supersedes 87050-0F330iZRE18#..N..TUP201606-201901

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

main87050-05820supersedes 87050-02791iNRE180..N..TUP201606-201808

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02140iNRE180..TUP201606-201808

main87103-02300iZRE182..G..SA201912

main87103-02310iZRE182..G..GEN201912

main87103-02460iZRE182..(D,N)..SA201912

main87103-02470iZRE182..(D,N)..GEN201912

main87103-02150iNDE180..N..TUP201306-201605

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-02360iZRE182..G201912

main87106-02270iNRE180..N..TUP201606-201808

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02370iZRE182..G201912

main87106-02140iNDE180,ZRE18#..N..TUP201606-201901

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-02280iNRE180..N..TUP201606-201808

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02150iNDE180..TUP201306-201605

main87107-02210iNDE180,NRE180,ZRE18#..SAP201401-201701

87114BCOVER, HEATER

main87114-02010iNDE180..TUP201306-201605

main87114-0K010iZRE182201912

87128GROMMET, HEATER

main87128-02010iNRE180..TUP201606-201808

main87128-02140iNDE180,NRE180,ZRE18#..SAP201701-201912

main87128-42010iNDE180,NRE180,ZRE18#..SAP201401-201609

87130DBLOWER ASSY

main87130-02301supersedes 87130-02A00iNDE180..TUP201306-201605

main87130-02392iNRE180,ZRE18#..SA201701-201912

main87130-02402iNDE180..SAP201701-201912

main87130-02411iZRE182..G..SA201912

main87130-02432iZRE18#..GEN..SAP201701-201912

main87130-02451iZRE182..G..GEN201912

main87130-02311supersedes 87130-02291iZRE18#..N..TUP201606-201901

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

main87130-02321supersedes 87130-02301iNDE180..N..TUP201306-201605

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

main87130-02421iNDE180..N..SAP201401-201701

AIR CONDITIONER-AUTO AIR CONDITIONER

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-02260iNRE180..TUP201606-201808

main87106-02350iNDE180,NRE180,ZRE18#..SA201401-201701

main87106-02380iZRE182..G..SA201912

main87106-02390iZRE18#..GEN..SAP201401-201701

main87106-02400iZRE182..G..GEN201912

main87106-02180iNDE180..D..TUP201505-201605

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

87139DELEMENT, AIR REFINER

main87139-0D070iNDE180..TUP201306-201605

POLLEN FILTER

main87139-50100iNRE180..TUP201606-201808

*DPF

main87139-52040iNDE180,NRE180,ZRE18#..SAP201701-201912

POLLEN FILTER

87235ABRACKET, HEATER COVER

main87235-05010iNRE180..TUP201606-201808

87710GQUICK HEATER ASSY

main87710-02070iNDE180..TUP201606-201901

main87710-0K040iNDE180..SAP201701-201912

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02202iNDE180..TUP201306-201605

main88501-12510iNDE180,NRE180,ZRE18#..SAP201701-201912

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90068-14022iZRE182201912

ID=10.8,OD=15.6

main90099-14120iNDE180..TUP201306-201605

ID=10.8,OD=15.6

main90068-14037iNDE180,ZRE18#..N..TUP201606-201901

ID=10.8,OD=15.6,AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14024iNDE180,NRE180,ZRE18#..SAP201701-201912

ID=13.4,OD=18.2

main90099-14121iNDE180..TUP201306-201605

ID=13.4,OD=18.2

main90068-14038iNDE180,ZRE18#..N..TUP201606-201901

ID=13.4,OD=18.2,AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

88515VALVE, COOLER EXPANSION

main88515-02520iNDE180..TUP201306-201605

main88515-02600iNDE180,NRE180,ZRE18#..SAP201701-201912

main88515-68010iNDE180..TUP;ZRE18#..N..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iZRE18#..D..TUP201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

main90099-04597×2iNDE180,NRE180,ZRE18#..SAP201401-201701

sub90068-04062

88539JHOSE, DRAIN COOLER

main88539-02260iNRE180..TUP201606-201808

main88539-02280iNDE180,NRE180,ZRE18#..SA201701-201912

main88539-02290iZRE18#..GEN..SAP201701-201912

88548BCASE, AIR FILTER

main88548-02070iNDE180..TUP201306-201605

main88548-02080iNDE180,NRE180,ZRE18#..SA201401-201701

main88548-02090iZRE18#..GEN..SAP201701-201912

88625THERMISTOR, COOLER, NO.1

main88625-02110iNDE180..TUP201306-201605

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02B50iNRE180..D..TUP201606-201808

main88650-02E20iNDE180..SAP201306-201701

main88650-02E30iNRE180,ZRE18#..SAP201401-201701

main88650-02F31iZRE182..G201912

main88650-02F40iNRE180..D..TUP201606-201711

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88650-02F41iNDE180..SAP201711-201912

main88650-02F50iZRE18#..D..TUP201606-201711

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88650-02F51iZRE18#..N..TUP201711-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88650-0D360iZRE18#..D..TUP201606-201901

main88650-02D70iNDE180,NRE180,ZRE18#..N..SAP201401-201701

AIR CONDITIONER-AUTO AIR CONDITIONER

main88650-02D80iNDE180..N..TUP201306-201409

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

main88650-02D81iNDE180..N..TUP201410-201605

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

main88650-02F30iNDE180,NRE180,ZRE18#..N..SAP201701-201711

AIR CONDITIONER-AUTO AIR CONDITIONER

main88650-02F60iNDE180,NRE180,ZRE18#..N..TUP201606-201711

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

main88650-02F61supersedes 88650-02F41iNDE180,ZRE18#..N..TUP201711-201901

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

8889702210VALVE, COOLER MAGNET

main88897-02210

9006932033

main90069-32033

9009900318

main90099-00318

9009900968

main90099-00968

9011906942

main90119-06942

9011906952

main90119-06952

90119W0068

main90119-W0068

90119W0156

main90119-W0156

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

90182W0016

main90182-W0016

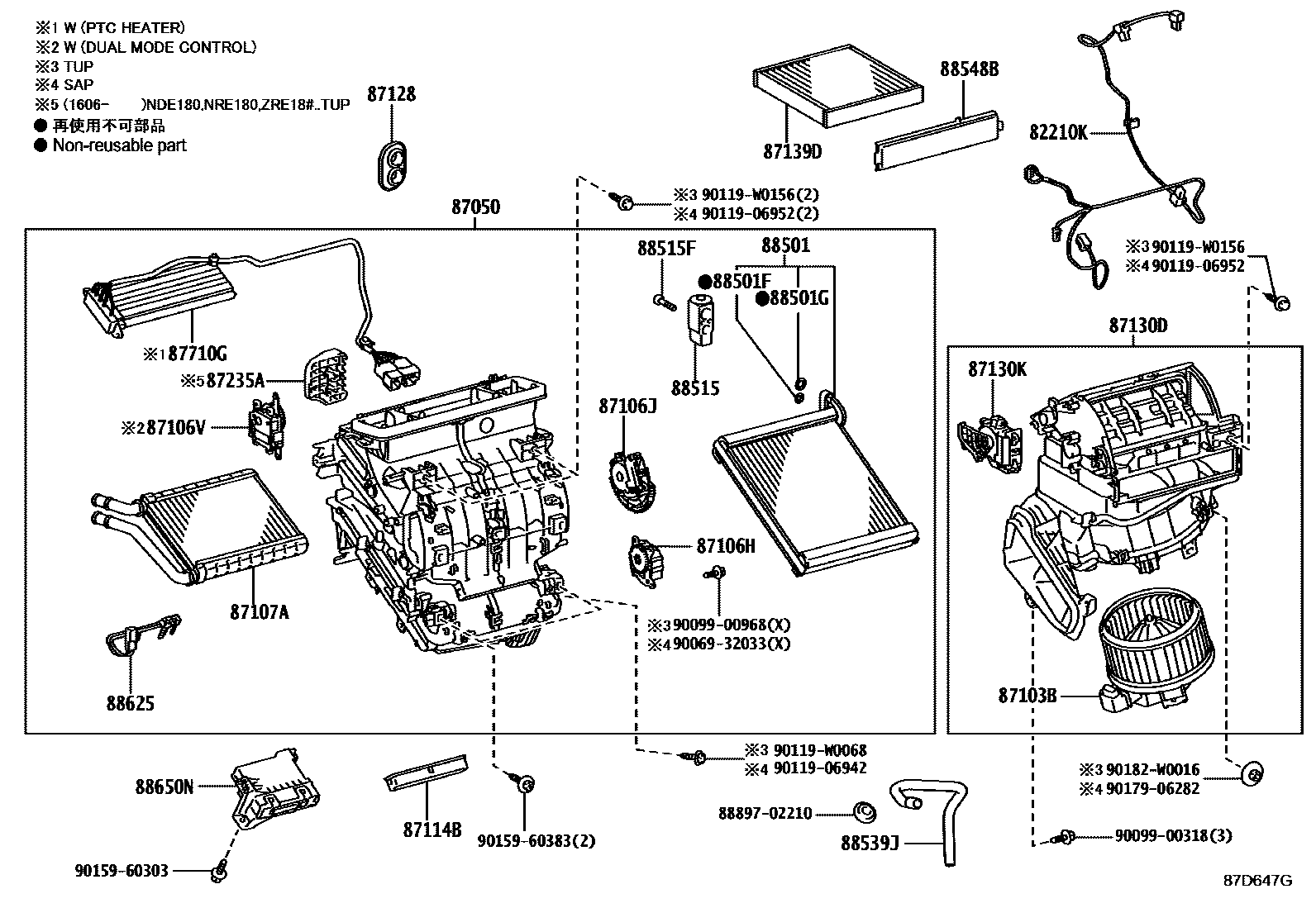

35 parts on this diagram · 6 diagrams in section
