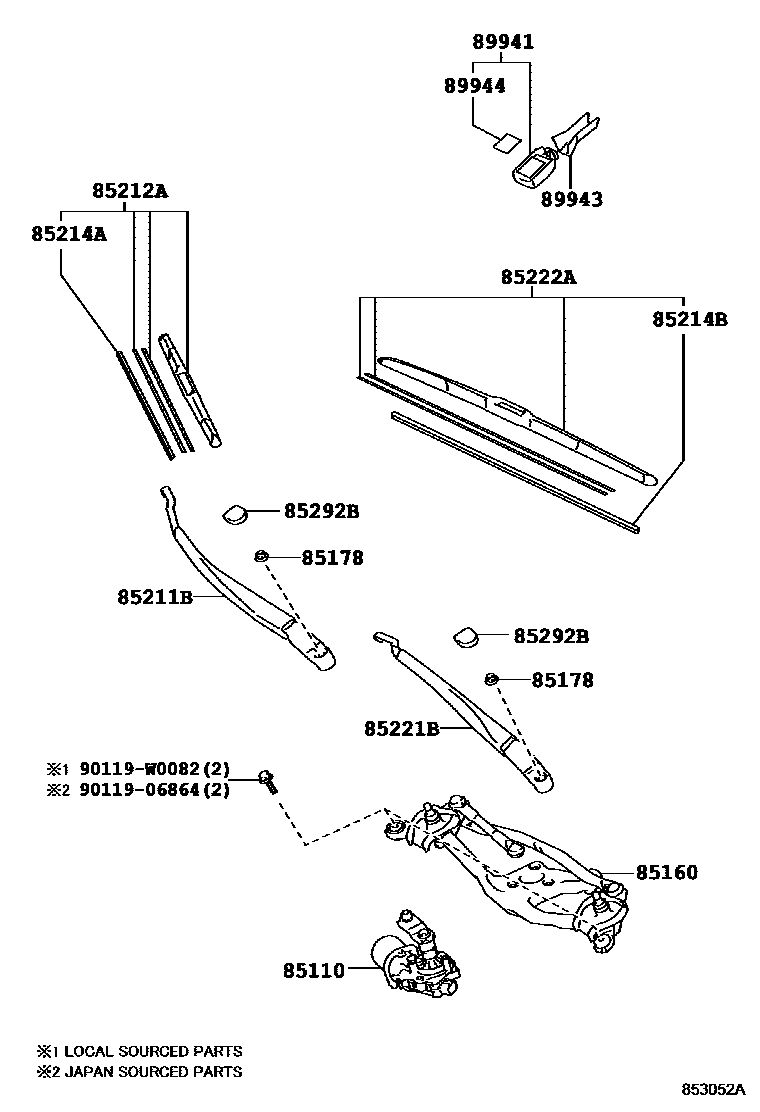

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02330iNDE180,NRE180,ZRE18#..SA201401-201912

main85110-02340iNDE180,ZRE18#..TUP201306-201912

85160LINK ASSY, WINDSHIELD WIPER

main85150-02320iNRE180..TUP201306-201901

main85150-02330iZRE18#..GEN..SAP201401-201912

main85150-02350iNDE180,NRE180,ZRE18#..SA201401-201912

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iNDE180..TUP¥80201306-201912

85211BARM, FRONT WIPER, RH

main85211-02290iNDE180,NRE180,ZRE18#..SA201401-201912

main85211-02300iNDE180,ZRE18#..TUP201306-201912

85212ABLADE, FR WIPER, RH

main85212-02250iNDE180,ZRE18#..TUP201306-201912

main85212-02290iZRE182..SA201401-201912

85214ARUBBER, WIPER, RH

main85214-02260iZRE18#..GEN..SAP201306-201912

main85214-02340iNDE180,NRE180,ZRE18#..SA201401-201912

85214BRUBBER, WIPER, LH

main85214-02260iNDE180,NRE180,ZRE18#..SA201401-201712

main85214-02340iNDE180,ZRE18#..TUP201306-201912

main85214-68030iZRE182..SA¥750201712-201912

85221BARM, FRONT WIPER, LH

main85221-02300iNDE180,NRE180,ZRE18#..SA201401-201912

main85221-02310iZRE182..GEN201306-201912

85222ABLADE, FR WIPER, LH

main85222-02260iNDE180,NRE180,ZRE18#..SA201401-201912

main85222-02300iNDE180,ZRE18#..TUP201306-201912

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010iNDE180..TUP¥200201306-201912

89941SENSOR, RAIN

main89941-52010iZRE182..G¥12,500201912

89943COVER, RAIN SENSOR

main89943-47010iZRE182..G¥1,550201912

89944TAPE, RAIN SENSOR

main89944-42010iZRE182..G¥1,490201912

9011906864

main90119-06864¥80

90119W0082

main90119-W0082¥80

15 parts on this diagram · 2 diagrams in section
