SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1STEERING 0015 1DOOR,ROOF,FLOOR & LUGGAGE

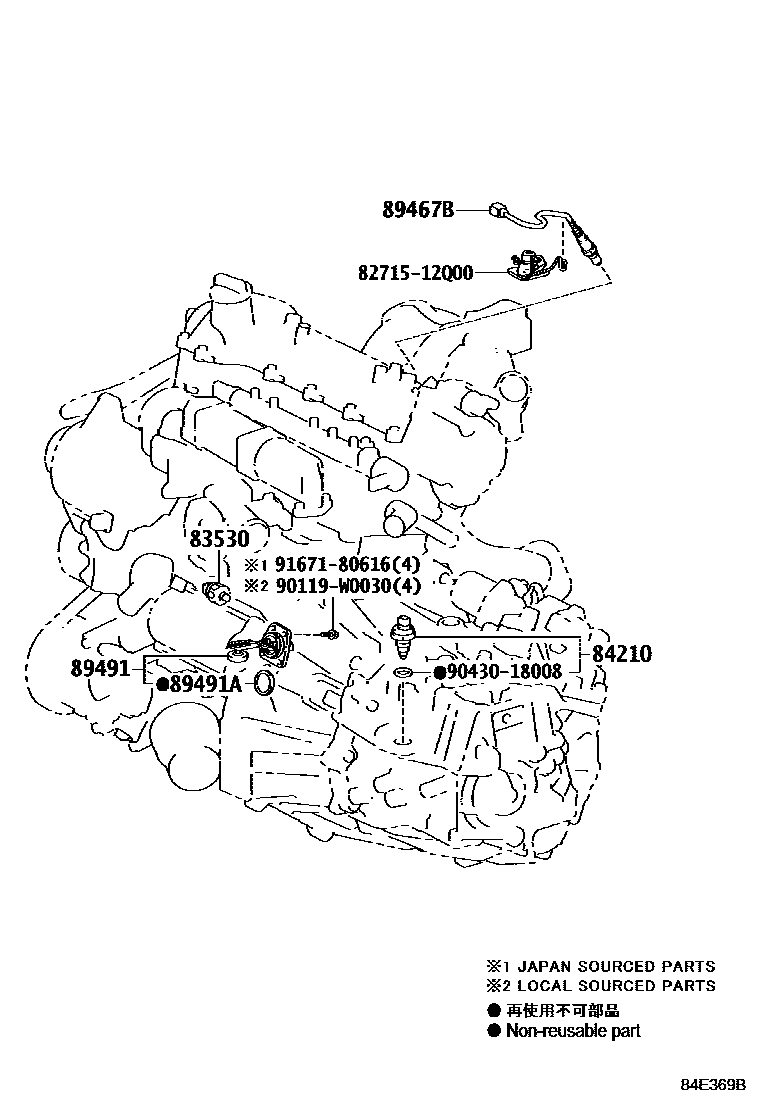

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iNRE180..TUP201401-201912

main83530-28010iNDE180..SAP201306-201912

DENSO

main83530-60010iNDE180..SAP201306-201912

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNDE180..TUP201306-201912

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE180..SAP201505-201912

main89467-02080iNDE180201306-201505

(L)

main89467-12130iNDE180201306-201505

(J)

main89467-52060iZRE18#..SAP201401-201912

main89467-52110iNRE180..TUP201401-201912

89491SENSOR, ENGINE OIL LEVEL

main89491-52031iNDE180..SAP201306-201912

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-36005iNDE180..TUP201306-201912

8271512Q00BRACKET,WIRING HARNESS CLAMP

main82715-12Q00

90119W0030

main90119-W0030

9043018008

main90430-18008

9167180616

main91671-80616

9 parts on this diagram · 13 diagrams in section
