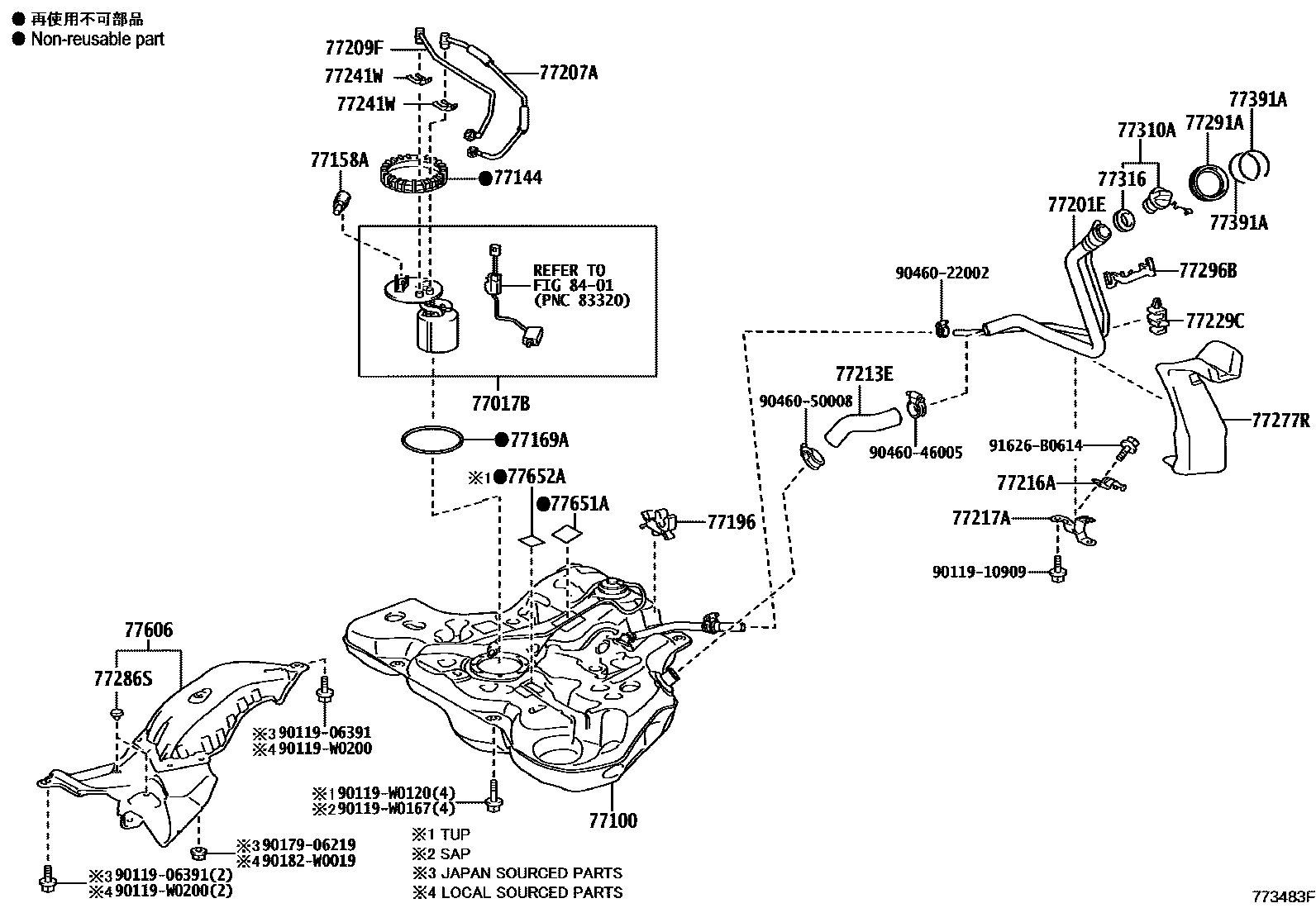

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-02080iNDE180201306-201409

sub77010-02081

main77010-02081iNDE180..SAP201410-201912

77100TANK ASSY, FUEL

main77001-02250iNRE180..TUP201606-201901

main77001-02291iNRE180,ZRE18#..SAP¥34,900201401-201912

main77001-02301iNDE180..SAP201401-201912

main77001-02680iNDE180..TUP201306-201901

77144RETAINER, FUEL PUMP GAUGE

main77144-02080iZRE182¥2,490201401-201912

main77144-0H010iNDE180,ZRE18#..TUP¥2,490201306-201901

77158ASUPPORT, TANK SUCTION TUBE

main77158-0D020iNDE180..TUP¥380201306-201912

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02070iNDE180,NRE180,ZRE18#..SAP201401-201912

main77169-0D030iNDE180..TUP¥260201306-201901

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02050iNDE180..TUP¥620201306-201901

main77196-12080iZRE182¥520201401-201912

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02470iNRE180..TUP201606-201901

main77201-02480iNDE180..TUP201306-201901

main77201-12A10iZRE182201401-201912

main77201-12A20iNDE180..SAP201401-201912

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-02050iNDE180..TUP201306-201901

main77204-02060iNDE180..SAP201401-201912

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02090iNRE180..TUP¥970201306-201901

main77209-02140iNDE180,NRE180,ZRE18#..SAP201401-201912

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02170iNDE180,NRE180,ZRE18#..SAP201306-201912

main77213-02170iNDE180,NRE180,ZRE18#..SAP201507-201701

(L)

main77213-12300iNDE180,NRE180,ZRE18#..SAP201507-201701

(J)

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02170iNRE180..TUP¥410201306-201901

main77216-12190iNDE180,NRE180,ZRE18#..SAP¥350201401-201912

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02140iNDE180..TUP201306-201901

main77217-47080iNDE180,NRE180,ZRE18#..SAP¥630201401-201912

77229CCLAMP, BREATHER TUBE

main77229-12070iNDE180..TUP¥520201306-201912

77241WCLIP, TUBE JOINT

main77241-32060iNDE180..TUP¥80201306-201912

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-02160iNDE180..TUP201306-201912

main77277-02280iZRE182..SA201912

77286SCUSHION, FUEL TANK PROTECTOR

main77286-02070iNDE180..TUP201306-201912

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02240iNDE180..TUP201306-201912

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-52030iNDE180..TUP¥960201306-201912

77310ACAP ASSY, FUEL TANK

main77300-12020iNRE180..TUP¥1,660201606-201901

main77300-12030iNDE180..TUP¥1,660201306-201901

main77300-20020iNDE180..SAP¥2,200201401-201912

main77300-52030iNRE180,ZRE18#..SAP¥1,560201401-201912

77316GASKET, FUEL TANK CAP

main77316-52040iNDE180..TUP¥230201306-201912

77391ARING, FUEL INLET BOX

main77391-12020iNDE180,NRE180,ZRE18#..SAP¥180201306-201912

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02021iNRE180..TUP201306-201901

main77606-02040iNDE180,NRE180,ZRE18#..SAP201401-201912

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iNDE180..TUP¥230201306-201912

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iZRE18#..TUP¥200201306-201912

8401

9011906391

main90119-06391¥100

9011910909

main90119-10909¥100

90119W0120

main90119-W0120

90119W0167

main90119-W0167

90119W0200

main90119-W0200

9017906219

main90179-06219¥70

90182W0019

main90182-W0019

9046022002

main90460-22002¥530

9046046005

main90460-46005¥190

9046050008

main90460-50008¥240

91626B0614

main91626-B0614¥60

36 parts on this diagram · 5 diagrams in section
