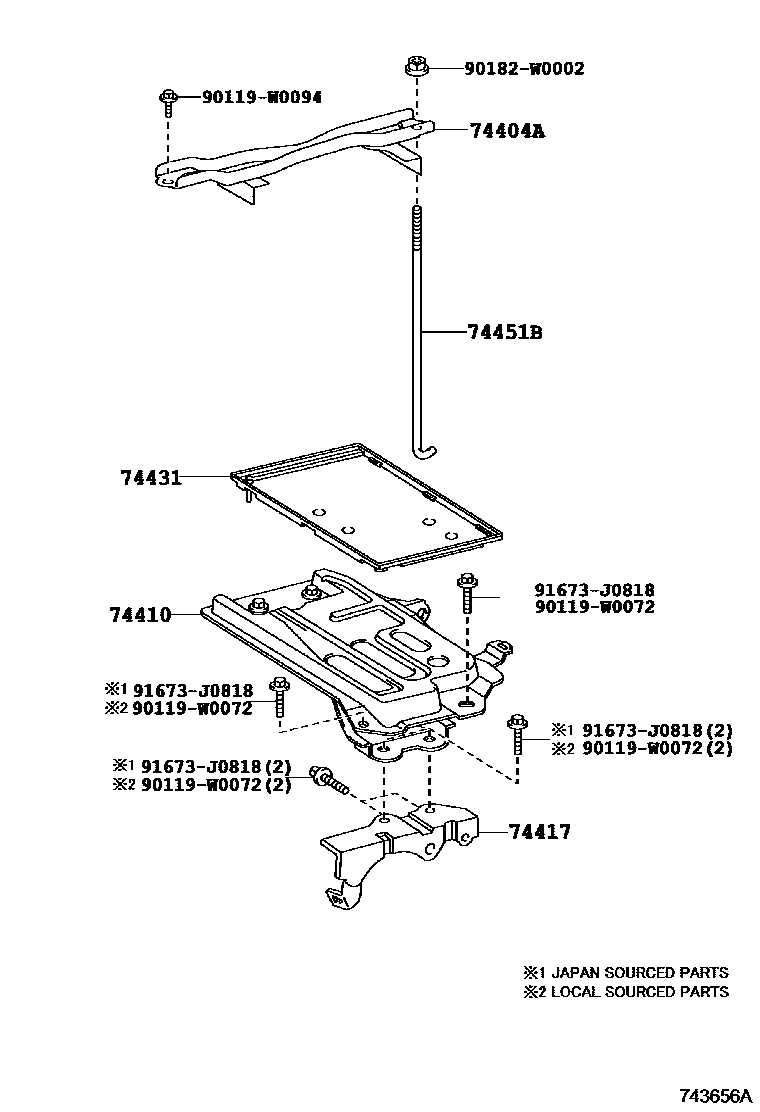

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-02350iNDE180..TUP201306-201605

main74404-02400iNDE180..SAP201401-201701

FRONT FOG LAMP-WITH

main74404-02410iZRE182201912

74410CARRIER ASSY, BATTERY

main74410-02020iZRE18#..TUP201606-201901

main74410-02030iNDE180..TUP201606-201901

main74410-02180iNDE180..SAP201701-201912

main74410-02190iNRE180,ZRE18#..SAP201401-201701

74417BRACKET, BATTERY CARRIER

main74401-02010iNDE180..TUP201306-201605

main74401-12010iNDE180,NRE180,ZRE18#..SAP201401-201701

74431TRAY, BATTERY

main74431-02160iZRE18#..TUP201606-201901

main74431-02220iNDE180..SAP201401-201701

main74431-02230iNRE180,ZRE18#..SAP201401-201701

main74431-02150supersedes 74431-02170iNDE180..TUP201611-201901

SUB COLD AREA SPEC

main74431-02210iNRE180,ZRE18#..N..SAP201401-201701

FRONT FOG LAMP-WITH

74451BBOLT, BATTERY CLAMP

main74451-02140iNDE180..TUP201308-201407

main74451-30110iNDE180,NRE180,ZRE18#..SAP201606-201912

90119W0072

main90119-W0072

90119W0094

main90119-W0094

90182W0002

main90182-W0002

91673J0818

main91673-J0818

9 parts on this diagram · 2 diagrams in section
