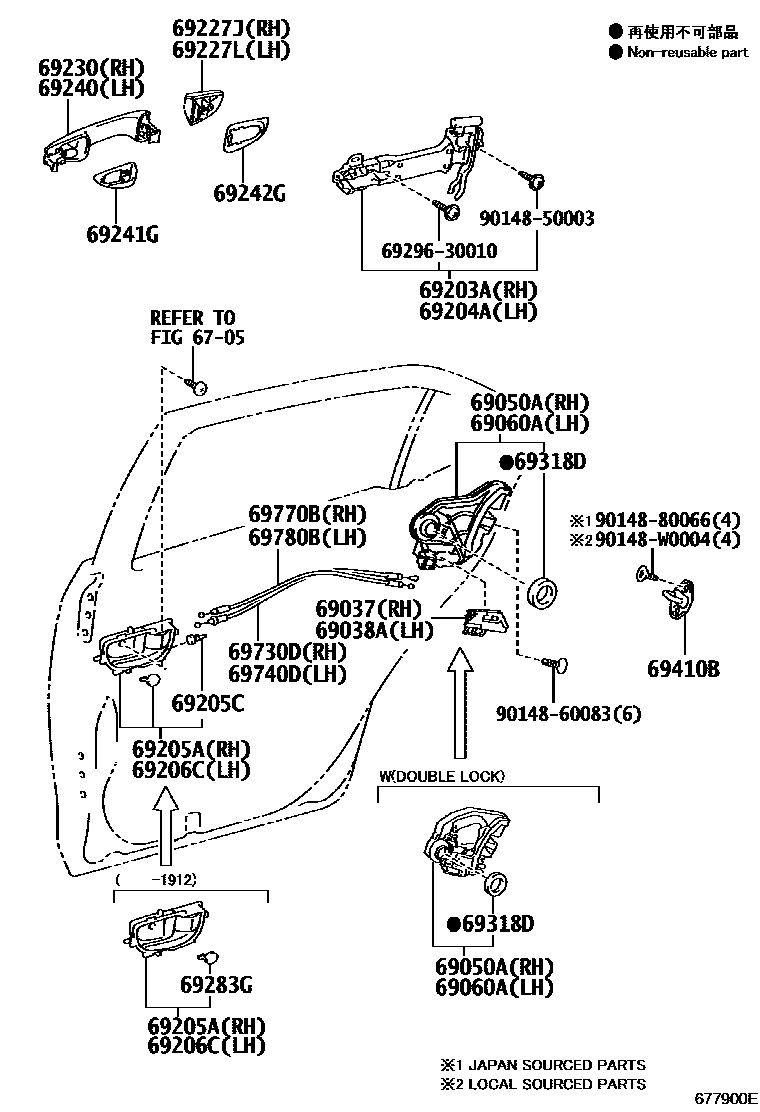

REAR DOOR LOCK & HANDLE
6705
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA &KNEE)
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA &KNEE)
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
FLAXEN,TRIM0#
EU BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
EU BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
FLAXEN,TRIM0#
EU BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
EU BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LESS COLOR
LESS COLOR
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LESS COLOR
LESS COLOR
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
PAINT REQ.
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
PAINT REQ.
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),METAL STREAM ME,1K0
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G2
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE,8Q4
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
RH
LH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
RH
LH
LH
69283GPLUG, REAR DOOR INSIDE HANDLE BEZEL
IVORY,TRIM0#
FLAXEN,TRIM0#
EU BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148W0004
main90148-W0004
28 parts on this diagram · 1 diagram in section
