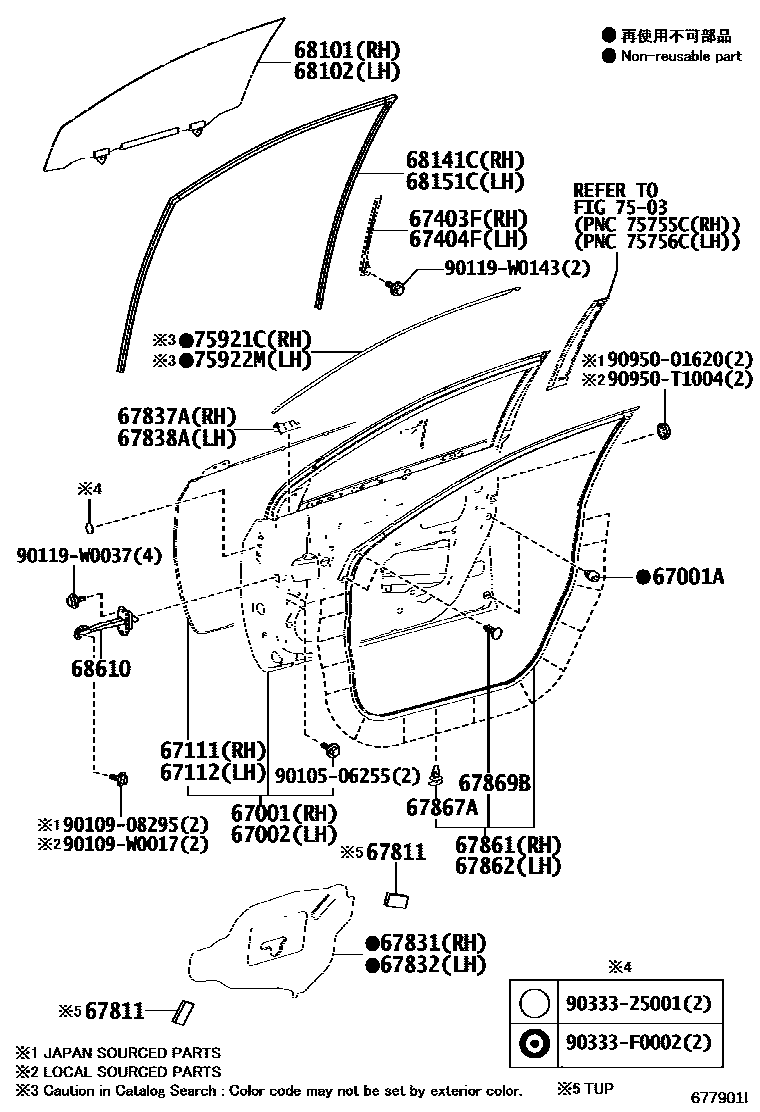

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02390iNDE180,ZRE18#..TUP201306-201901

main67001-02400iZRE182201401-201912

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iNRE180..TUP201306-201912

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02390iNDE180..TUP201306-201901

main67002-02400iNDE180,NRE180,ZRE18#..SAP201401-201912

67111PANEL, FRONT DOOR, OUTER RH

main67111-02230iNDE180,ZRE18#..TUP201306-201901

main67111-02240iZRE182201401-201912

67112PANEL, FRONT DOOR, OUTER LH

main67112-02230iNDE180,ZRE18#..TUP201306-201901

main67112-02240iZRE182201401-201912

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02190iNDE180,NRE180,ZRE18#..SAP201809-201912

main67403-12320iNRE180..TUP201306-201901

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02190iZRE182201809-201912

main67404-12300iNDE180,ZRE18#..TUP201306-201901

67811PAD, FRONT DOOR SILENCER

main67811-02300iNDE180,NRE180,ZRE18#..TUP201306-201901

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02330iNDE180,ZRE18#..TUP201306-201901

main67831-02340iNDE180,NRE180,ZRE18#..SAP201401-201912

main67831-02550iZRE182201912

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02330iNDE180..TUP201306-201901

main67832-02340iNDE180,NRE180,ZRE18#..SAP201401-201912

main67832-02550iZRE182201912

67837ASEAL, FRONT DOOR VENT, RH

main67837-02050iNDE180,NRE180,ZRE18#..SAP201306-201912

67838ASEAL, FRONT DOOR VENT, LH

main67838-02020iNDE180..TUP201306-201912

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02270iNDE180..TUP201306-201912

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02270iNDE180..TUP201306-201912

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150iNDE180..TUP201306-201912

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNRE180..TUP201306-201912

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02430iNRE180..TUP201306-201901

main68101-02450iNDE180,NRE180,ZRE18#..SAP201401-201912

main68101-02700iZRE182201912

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02430iNDE180..TUP201306-201901

main68102-02450iNDE180,NRE180,ZRE18#..SAP201401-201912

main68102-02700iZRE182201912

68141CRUN, FRONT DOOR GLASS, RH

main68141-02310iNDE180..TUP201306-201912

68151CRUN, FRONT DOOR GLASS, LH

main68151-02300iNDE180..TUP201306-201912

68610CHECK ASSY, FRONT DOOR

main68610-02240iNDE180..TUP201306-201608

sub68610-02241

main68610-02241iNDE180,NRE180,ZRE18#..SAP201609-201712

sub68610-02242

main68610-02242iNDE180,NRE180,ZRE18#..SAP201801-201912

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02160iNDE180..TUP201306-201901

main75921-02210iNDE180,NRE180,ZRE18#..SAP201401-201912

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02160iNDE180..TUP201306-201901

main75922-02210iZRE182201401-201912

9010506255

main90105-06255

9010908295

main90109-08295

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0143

main90119-W0143

9033325001

main90333-25001

90333F0002

main90333-F0002

9095001620

main90950-01620

90950T1004

main90950-T1004

33 parts on this diagram · 2 diagrams in section
