INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

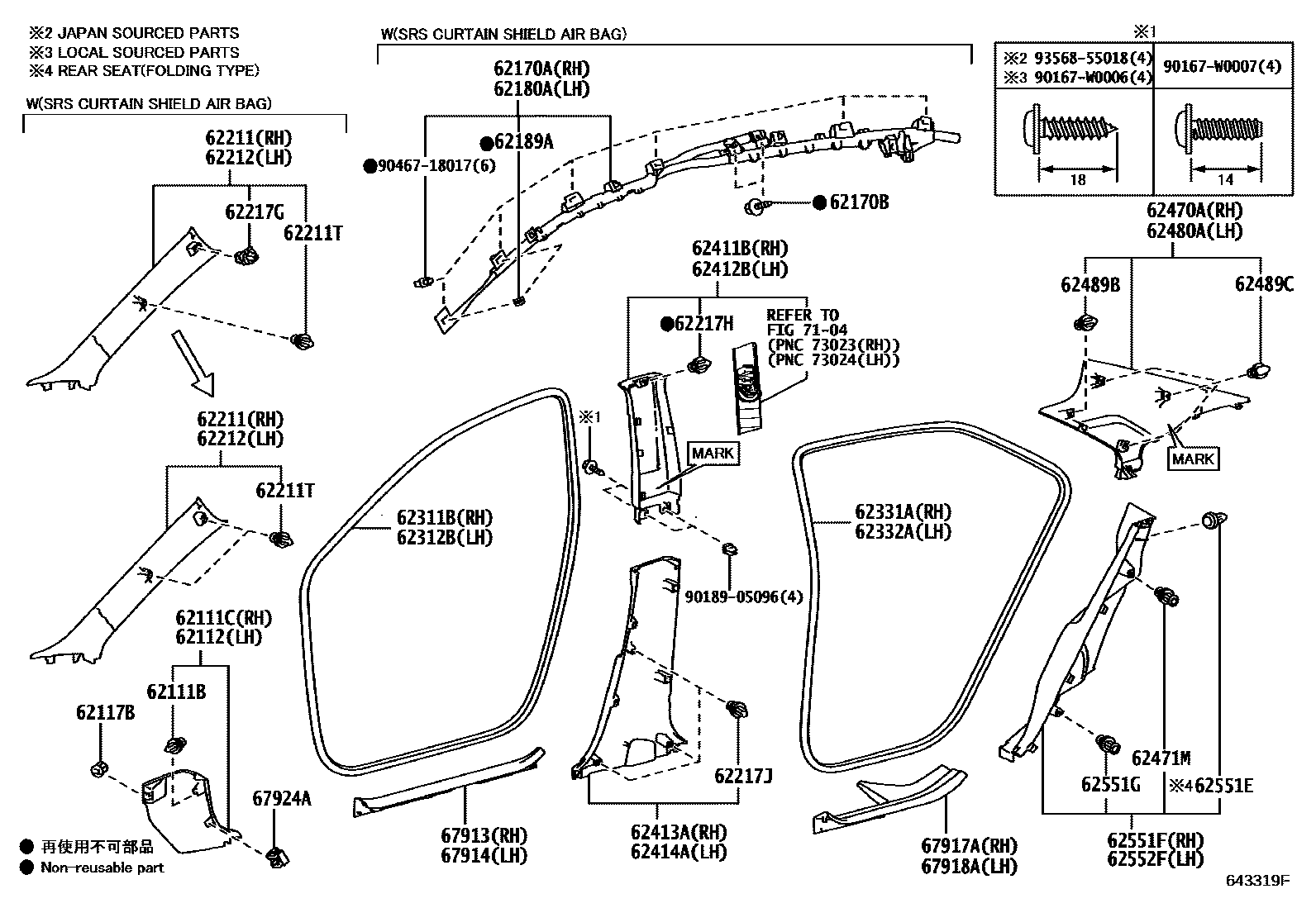

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-W0005i201306-201912
62111CBOARD, COWL SIDE TRIM, RH
main62111-02260-C0i201306-201505
BLACK,TRIM0#,2#
sub62111-02260
main62111-02260-C0i201401-201505
BLACK,TRIM2#
sub62111-02260
main62111-02260-C1i201505-201912
EU BLACK,TRIM2#
sub62111-02260
main62111-02260-C1i201505-201912
EU BLACK,TRIM0#,2#
sub62111-02260
main62111-02260-C1i201912
EU BLACK,TRIM2#,3#
sub62111-02260
62112BOARD, COWL SIDE TRIM, LH
main62112-02260-C0i201306-201505
BLACK,TRIM0#,2#
sub62112-02260
main62112-02260-C0i201401-201505
BLACK,TRIM2#
sub62112-02260
main62112-02260-C1i201505-201912
EU BLACK,TRIM0#,2#
sub62112-02260
main62112-02260-C1i201505-201912
EU BLACK,TRIM2#
sub62112-02260
main62112-02260-C1i201912
EU BLACK,TRIM2#,3#
sub62112-02260
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-06147i201306-201912
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-02210i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
main62170-02210i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER
main62170-02220i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
62170BBOLT, W/WASHER
main90119-06869i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),(J)
main90119-06869i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),(J)
main90119-06869i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,(J)
main90119-W0078i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),(L)
main90119-W0078i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),(L)
main90119-W0078i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,(L)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-02200i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER
main62180-02200i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
main62180-02210i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER
main62189-42010i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
main62189-42010i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
62211GARNISH, FRONT PILLAR, RH
main62210-02150-A0i201306-201605
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),IVORY,TRIM0#
main62210-02150-A1i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#
main62210-02150-B0i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#
main62210-02160-A0i201306-201605
IVORY,TRIM0#
main62210-02160-A1i201606-201901
FLAXEN,TRIM0#
main62210-02160-B0i201306-201901
LT.GRAY,TRIM2#
main62210-02170-A0i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER,IVORY,TRIM0#
main62210-02170-A1i201701-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,FLAXEN,TRIM0#
main62210-02170-B0i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,LT.GRAY,TRIM2#
main62210-02170-B0i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM2#
main62210-02180-A0i201610-201701
IVORY,TRIM0#
main62210-02180-A1i201701-201912
FLAXEN,TRIM0#
main62210-02180-B0i201401-201912
LT.GRAY,TRIM2#
main62210-02580-B0i201912
LT.GRAY,TRIM2#
main62210-02580-B0i201912
LT.GRAY,TRIM2#,3#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-W0005i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER
main90467-W0005i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
main90467-W0005i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
main90467-W0005i201306-201912
62212GARNISH, FRONT PILLAR, LH
main62220-02150-A0i201306-201605
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),IVORY,TRIM0#
main62220-02150-A1i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#
main62220-02150-B0i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#
main62220-02160-A0i201306-201605
IVORY,TRIM0#
main62220-02160-A1i201606-201901
FLAXEN,TRIM0#
main62220-02160-B0i201306-201901
LT.GRAY,TRIM2#
main62220-02170-A0i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER,IVORY,TRIM0#
main62220-02170-A1i201701-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,FLAXEN,TRIM0#
main62220-02170-B0i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM2#
main62220-02170-B0i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,LT.GRAY,TRIM2#
main62220-02180-A0i201610-201701
IVORY,TRIM0#
main62220-02180-A1i201701-201912
FLAXEN,TRIM0#
main62220-02180-B0i201401-201912
LT.GRAY,TRIM2#
main62220-02580-B0i201912
LT.GRAY,TRIM2#,3#
main62220-02580-B0i201912
LT.GRAY,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
main62217-52120i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
main62217-52120i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER
main62217-52120i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
62217HCLIP, CENTER PILLER GARNISH
main90467-10188i201306-201912
main90467-10188i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE)
62217JCLIP, CENTER PILLER GARNISH
main90467-W0005i201306-201912
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-02260i201306-201912
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-02250i201306-201912
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-02280i201306-202203
main62331-02281i202204-202208
sub62331-02280
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-02280i201306-202203
main62332-02281i202204-202208
sub62332-02280
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-02210-A0i201306-201605
IVORY,TRIM0#
main62410-02210-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62410-02210
main62410-02210-A1i201606-201901
FLAXEN,TRIM0#
main62410-02210-B1i201306-201901
LT.GRAY,TRIM2#
main62410-02250-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62410-02250
main62410-02250-A1i201701-201912
FLAXEN,TRIM0#
main62410-02250-B0i201401-201912
LT.GRAY,TRIM2#
main62410-02250-B0i201912
LT.GRAY,TRIM2#,3#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62420-02210-A0i201306-201605
IVORY,TRIM0#
main62420-02210-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62420-02210
main62420-02210-A1i201606-201901
FLAXEN,TRIM0#
main62420-02210-B1i201306-201901
LT.GRAY,TRIM2#
main62420-02250-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62420-02250
main62420-02250-A1i201701-201912
FLAXEN,TRIM0#
main62420-02250-B0i201401-201912
LT.GRAY,TRIM2#
main62420-02250-B0i201912
LT.GRAY,TRIM2#,3#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-02210-C0i201306-201505
BLACK,TRIM0#,2#
sub62413-02210
main62413-02210-C1i201505-201901
EU BLACK,TRIM0#,2#
sub62413-02210
main62413-02270-C0i201401-201912
BLACK,TRIM0#,2#
main62413-02270-C0i201401-201912
BLACK,TRIM2#
main62413-02270-C0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM0#
main62413-02270-C0i201912
BLACK,TRIM2#,3#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-02210-C0i201306-201505
BLACK,TRIM0#,2#
sub62414-02210
main62414-02210-C1i201505-201901
EU BLACK,TRIM0#,2#
sub62414-02210
main62414-02270-C0i201401-201912
BLACK,TRIM2#
main62414-02270-C0i201401-201912
BLACK,TRIM0#,2#
main62414-02270-C0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM0#
main62414-02270-C0i201912
BLACK,TRIM2#,3#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-02320-A0i201306-201605
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),IVORY,TRIM0#
main62470-02320-A0i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62470-02320
main62470-02320-A1i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#
main62470-02320-B0i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#
main62470-02330-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62470-02330
main62470-02330-A0i201306-201605
IVORY,TRIM0#
main62470-02330-A1i201606-201901
FLAXEN,TRIM0#
main62470-02330-B0i201306-201901
LT.GRAY,TRIM2#
main62470-02370-A0i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62470-02370
main62470-02370-A1i201701-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,FLAXEN,TRIM0#
main62470-02370-B0i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM2#
main62470-02370-B0i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,LT.GRAY,TRIM2#
main62470-02380-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62470-02380
main62470-02380-A1i201701-201912
FLAXEN,TRIM0#
main62470-02380-B0i201912
LT.GRAY,TRIM2#,3#
main62470-02380-B0i201401-201912
LT.GRAY,TRIM2#
62471MCLIP
main90467-A0033i201306-201912
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-02320-A0i201306-201605
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),IVORY,TRIM0#
main62480-02320-A0i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62480-02320
main62480-02320-A1i201606-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0#
main62480-02320-B0i201306-201901
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),LT.GRAY,TRIM2#
main62480-02330-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62480-02330
main62480-02330-A0i201306-201605
IVORY,TRIM0#
main62480-02330-A1i201606-201901
FLAXEN,TRIM0#
main62480-02330-B0i201306-201901
LT.GRAY,TRIM2#
main62480-02360-A0i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62480-02360
main62480-02360-A1i201701-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,FLAXEN,TRIM0#
main62480-02360-B0i201401-201912
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM2#
main62480-02360-B0i201401-201912
AIR CONDITIONER-AUTO AIR CONDITIONER,LT.GRAY,TRIM2#
main62480-02370-A0i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE),IVORY,TRIM0#,MARK=62480-02370
main62480-02370-A1i201701-201912
FLAXEN,TRIM0#
main62480-02370-B0i201912
LT.GRAY,TRIM2#,3#
main62480-02370-B0i201401-201912
LT.GRAY,TRIM2#
62489BCLIP, ROOF SIDE INNER GARNISH
main90467-10188i201306-201912
main90467-10188i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE)
main90467-10188i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT COVER MATERIAL-FABLIC(BASE GRADE)
62489CCLIP, ROOF SIDE INNER GARNISH
main90467-A0033i201306-201912
main90467-A0033i201610-201701
SEAT COVER MATERIAL-FABLIC(BASE GRADE)
main90467-A0033i201610-201701
AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT COVER MATERIAL-FABLIC(BASE GRADE)
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-10167i201306-201912
62551FGARNISH, REAR SEAT SIDE, RH
main62551-02380-C0i201401-201505
BLACK,TRIM2#
sub62551-02380
main62551-02380-C0i201306-201505
BLACK,TRIM0#,2#
sub62551-02380
main62551-02380-C1i201505-201901
EU BLACK,TRIM0#,2#
sub62551-02380
main62551-02380-C1i201505-201610
EU BLACK,TRIM2#
sub62551-02380
main62551-02790-C0i201611-201912
BLACK,TRIM2#
main62551-02790-C0i201611-201912
BLACK,TRIM0#,2#
main62551-02840-C0i201912
BLACK,TRIM2#
main62551-02840-C0i201912
BLACK,TRIM2#,3#
main62551-02840-C0i201912
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
62551GCLIP
main62489-0E010i201306-201912
62552FGARNISH, REAR SEAT SIDE, LH
main62552-02360-C0i201306-201505
BLACK,TRIM0#,2#
sub62552-02360
main62552-02360-C0i201401-201505
BLACK,TRIM2#
sub62552-02360
main62552-02360-C1i201505-201901
EU BLACK,TRIM0#,2#
sub62552-02360
main62552-02360-C1i201505-201610
EU BLACK,TRIM2#
sub62552-02360
main62552-02880-C0i201611-201912
BLACK,TRIM2#
main62552-02880-C0i201611-201912
BLACK,TRIM0#,2#
main62552-02B00-C0i201912
BLACK,TRIM2#
main62552-02B00-C0i201912
BLACK,TRIM2#,3#
main62552-02B00-C0i201912
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-02260-C0i201306-201505
BLACK,TRIM0#,2#
sub67913-02260
main67913-02260-C0i201401-201505
BLACK,TRIM2#
sub67913-02260
main67913-02260-C1i201912
EU BLACK,TRIM2#,3#
sub67913-02260
main67913-02260-C1i201505-201912
EU BLACK,TRIM0#,2#
sub67913-02260
main67913-02260-C1i201505-201912
EU BLACK,TRIM2#
sub67913-02260
67914PLATE, FRONT DOOR SCUFF, LH
main67914-02260-C0i201306-201505
BLACK,TRIM0#,2#
sub67914-02260
main67914-02260-C0i201401-201505
BLACK,TRIM2#
sub67914-02260
main67914-02260-C1i201505-201912
EU BLACK,TRIM0#,2#
sub67914-02260
main67914-02260-C1i201505-201912
EU BLACK,TRIM2#
sub67914-02260
main67914-02260-C1i201912
EU BLACK,TRIM2#,3#
sub67914-02260
67917APLATE, REAR DOOR SCUFF, RH
main67917-02330-C0i201306-201505
BLACK,TRIM0#,2#
sub67917-02330
main67917-02330-C0i201401-201505
BLACK,TRIM2#
sub67917-02330
main67917-02330-C1i201505-201912
EU BLACK,TRIM0#,2#
sub67917-02330
main67917-02330-C1i201505-201912
EU BLACK,TRIM2#
sub67917-02330
main67917-02330-C1i201912
EU BLACK,TRIM2#,3#
sub67917-02330
67918APLATE, REAR DOOR SCUFF, LH
main67918-02330-C0i201306-201505
BLACK,TRIM0#,2#
sub67918-02330
main67918-02330-C0i201401-201505
BLACK,TRIM2#
sub67918-02330
main67918-02330-C1i201505-201912
EU BLACK,TRIM0#,2#
sub67918-02330
main67918-02330-C1i201505-201912
EU BLACK,TRIM2#
sub67918-02330
main67918-02330-C1i201912
EU BLACK,TRIM2#,3#
sub67918-02330
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67924-52140i201306-201912
7104
90167W0006
main90167-W0006
90167W0007
main90167-W0007
9018905096
main90189-05096
9046718017
main90467-18017
9356855018
main93568-55018

42 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
