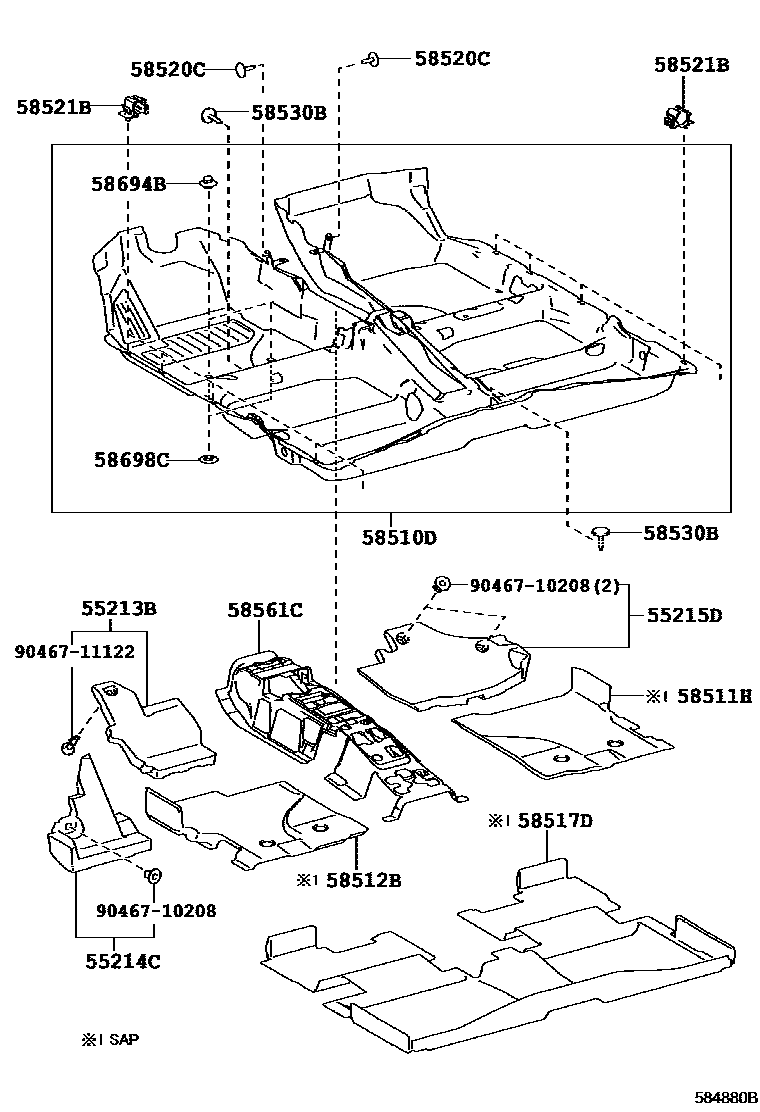

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#
sub58510-02W60
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
58511HMAT, FLOOR, FRONT RH
58512BMAT, FLOOR, FRONT LH
58517DMAT, REAR FLOOR
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM2#,3#
BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58561CSILENCER, FRONT FLOOR, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710208
9046711122
15 parts on this diagram · 3 diagrams in section
