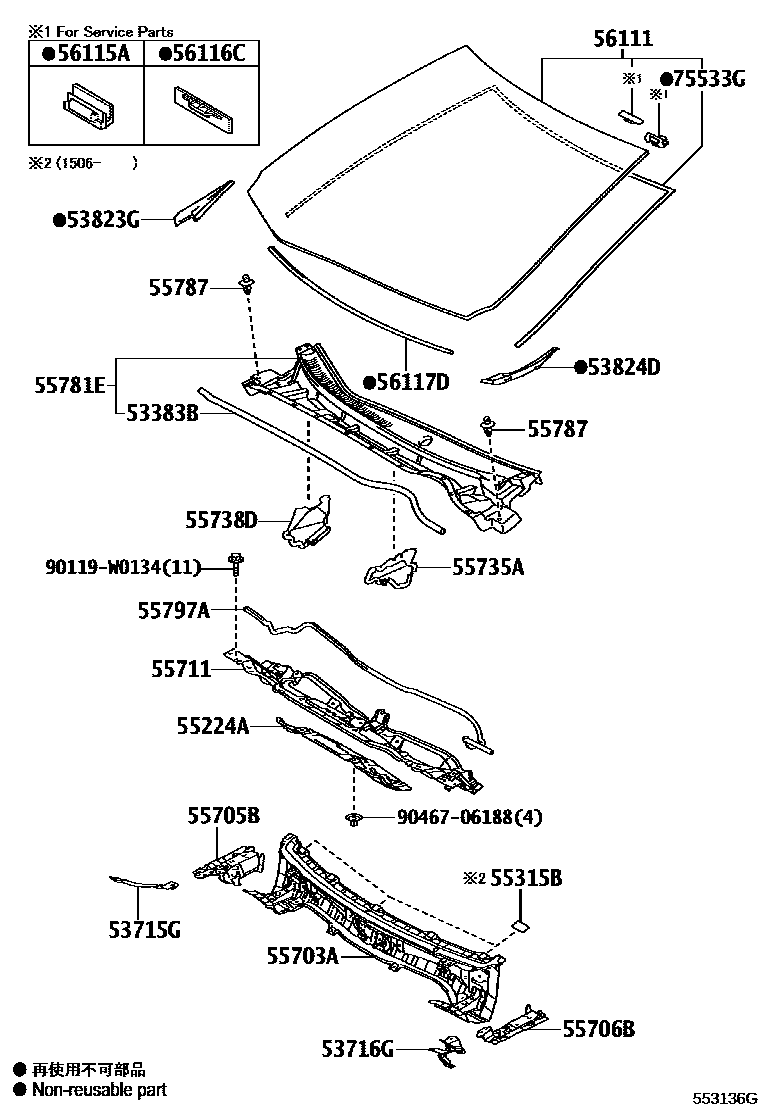

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53715GEXTENSION, FRONT FENDER APRON, REAR RH
53716GEXTENSION, FRONT FENDER APRON, REAR LH
53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55315BSPACER, INSTRUMENT PANEL, NO.1
55703APANEL SUB-ASSY, COWL TOP, INNER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55735APLATE, WATER GUARD, LH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55787CLIP, COWL VENTILATOR LOUVER, INNER
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER
INTERMITTENT WIPER-WITH(AUTO)
INTERMITTENT WIPER-WITH(AUTO)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=1262.5,INTERMITTENT WIPER-WITH(AUTO)
*D,L=1262.5
*D,L=1262.5,INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER
75533GMOULDING, WINDSHIELD, OUTSIDE
90119W0134
main90119-W0134
9046706188
main90467-06188
23 parts on this diagram · 3 diagrams in section
