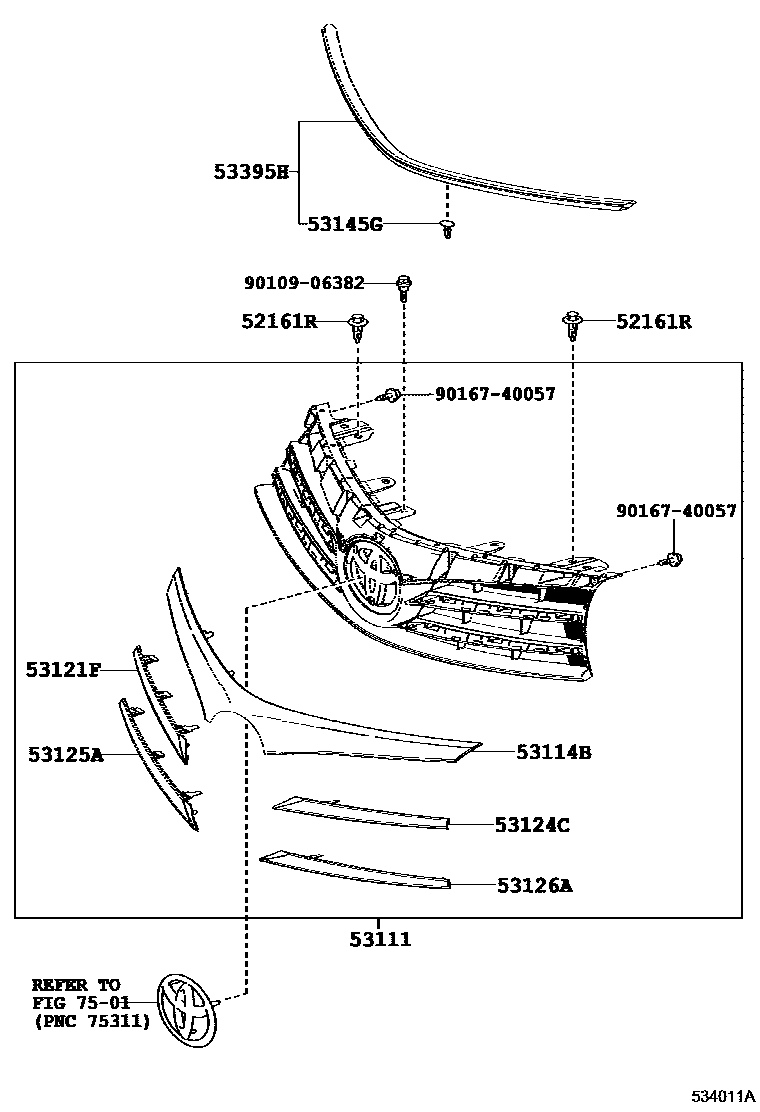

RADIATOR GRILLE
52161RPIECE, FRONT BUMPER
(L)
53111GRILLE, RADIATOR
PLATED
sub53111-02790
sub53114-02270
sub53121-02180
sub53124-02170
sub53125-02040
sub53126-02060
sub90167-40057
PLATED
PLATED
PLATED
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
OXIDE BRONZE ME.,6X1
BLUE ME.,8N0
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
OXIDE BRONZE ME.,6X1
BLUE ME.,8N0
PLATED
53114BGRILLE, RADIATOR, UPPER
53121FMOULDING, RADIATOR GRILLE, UPPER RH
53124CMOULDING, RADIATOR GRILLE, UPPER LH
53125AMOULDING, RADIATOR GRILLE, CENTER RH
53126AMOULDING, RADIATOR GRILLE, CENTER LH
53145GCLIP, RADIATOR GRILLE
53395HSEAL, HOOD TO RADIATOR GRILLE
7501
9010906382
main90109-06382
9016740057
main90167-40057
12 parts on this diagram · 2 diagrams in section
