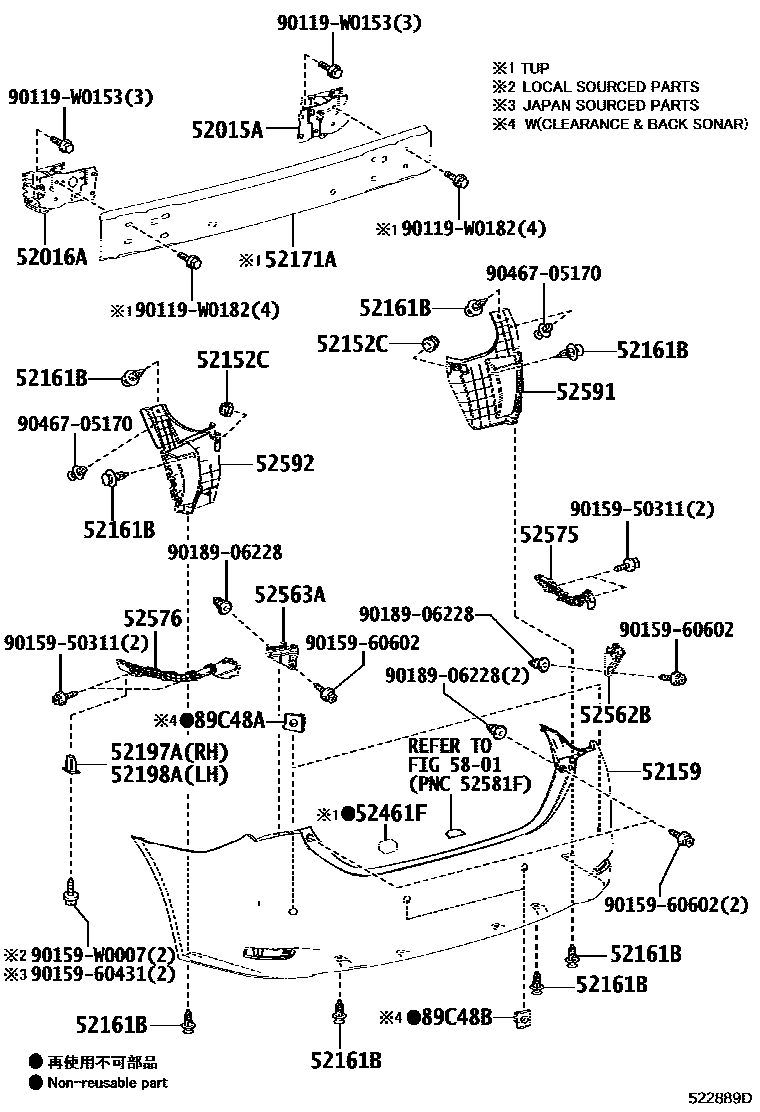

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52152CCLIP, REAR BUMPER SIDE
BLACK
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,MUD GUARD-WITH&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
PAINT REQ.,MUD GUARD-WITH&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
52161BPIECE, REAR BUMPER
(L)
52171AREINFORCEMENT, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52461FPAD, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
5801
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
VEHICLE STABILITY CONT-WITH(W/CUT OFF SWITCH)&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE &
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITH(*IPA)
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA)
VEHICLE STABILITY CONT-WITH(W/CUT OFF SWITCH)&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&CLEARANCE &
90119W0153
main90119-W0153
90119W0182
main90119-W0182
9015950311
main90159-50311
9015960431
main90159-60431
9015960602
main90159-60602
90159W0007
main90159-W0007
9018906228
main90189-06228
9046705170
main90467-05170
26 parts on this diagram · 1 diagram in section
