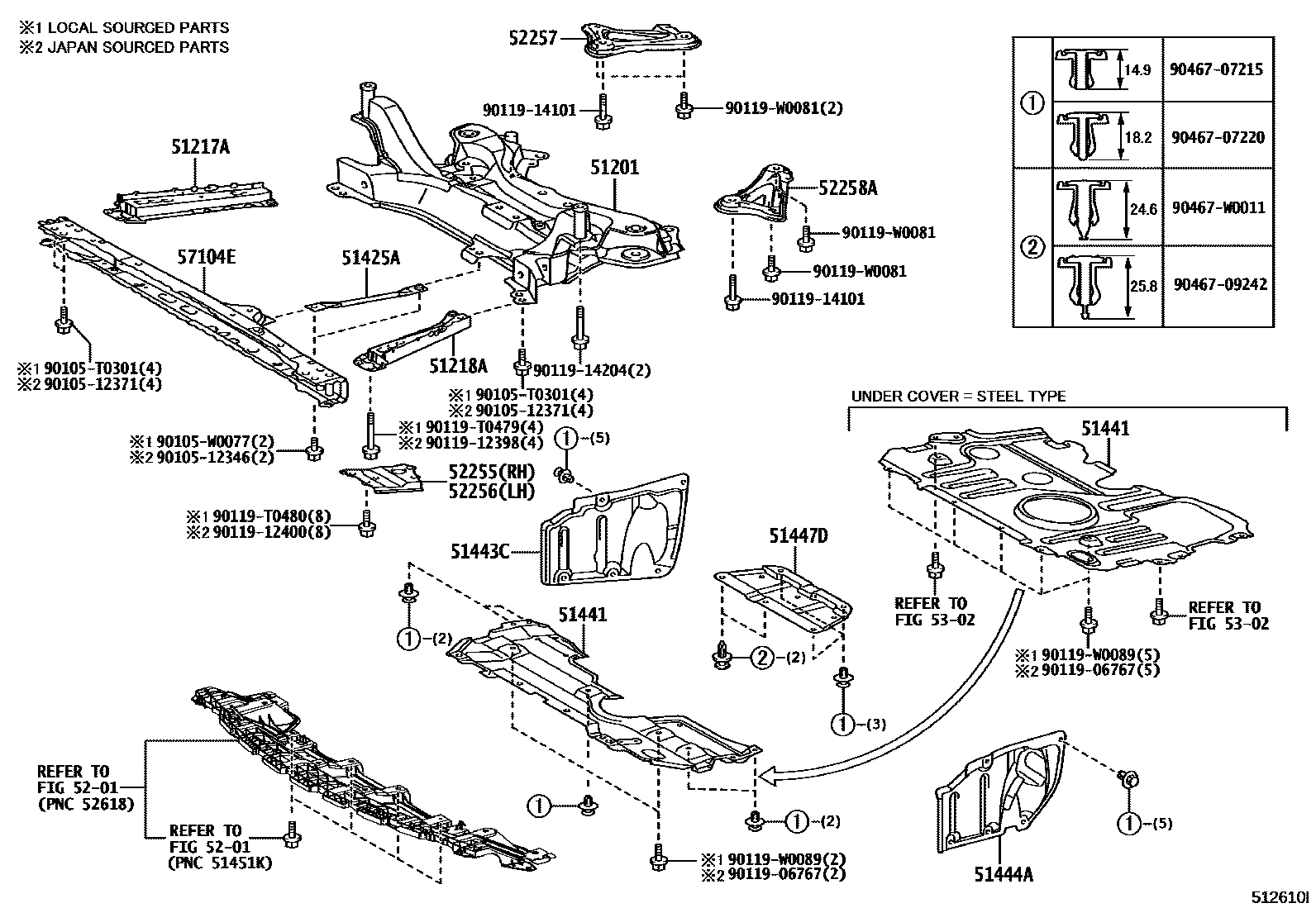

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02101iNDE180201306-201307

main51201-02102iNDE180..TUP201308-201605

main51201-02122iZRE182201912

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02010iNDE180,ZRE18#..TUP201606-201901

main51107-02020iNDE180,NRE180,ZRE18#..SAP201701-201906

main51107-02021iZRE182201912

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02010iNDE180..TUP201306-201605

main51108-02020iNDE180,NRE180,ZRE18#..SAP201401-201701

main51108-02021iNDE180,NRE180,ZRE18#201907-201912

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02010iNRE180..TUP201606-201808

main51425-02020iZRE182201912

51441COVER, ENGINE UNDER, NO.1

main51441-02220iNDE180,ZRE18#..TUP201606-201901

main51441-02240iNDE180,NRE180,ZRE18#..SAP201401-201701

main51408-02050supersedes 51441-02220iZRE18#..TUP201606-201901

ENGINE UNDER COVER & PROTECTOR-WITH(STEEL)

main51408-02070supersedes 51441-02240iNRE180,ZRE18#..SAP201701-201912

ENGINE UNDER COVER & PROTECTOR-WITH(STEEL)

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02050iNDE180..TUP201306-201605

main51443-02060iNDE180,NRE180,ZRE18#..SAP201401-201701

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02041iNDE180,ZRE18#..TUP201606-201901

main51444-02050iNDE180,NRE180,ZRE18#..SAP201401-201701

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02010iNDE180..TUP201306-201605

main51447-02020iNDE180,NRE180,ZRE18#..SAP201401-201701

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iNRE180..TUP201606-201808

main52255-02020iNDE180,NRE180,ZRE18#..SAP201701-201906

main52255-02021iZRE182201912

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iNRE180..TUP201606-201808

main52256-02020iNDE180,NRE180,ZRE18#..SAP201701-201906

main52256-02021iZRE182201912

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02060iNDE180..TUP201306-201605

main52257-02070iNDE180,NRE180,ZRE18#..SAP201701-201906

main52257-02071iZRE182201912

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02060iNDE180..TUP201306-201605

main52258-02070iNDE180,NRE180,ZRE18#..SAP201401-201701

main52258-02071iNDE180,NRE180,ZRE18#201907-201912

5302

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02250iNRE180..TUP201606-201808

main57104-47020iNDE180,NRE180,ZRE18#..SAP201701-201912

9010512346

main90105-12346

9010512371

main90105-12371

90105T0301

main90105-T0301

90105W0077

main90105-W0077

9011906767

main90119-06767

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914204

main90119-14204

90119T0479

main90119-T0479

90119T0480

main90119-T0480

90119W0081

main90119-W0081

90119W0089

main90119-W0089

9046707215

main90467-07215

9046707220

main90467-07220

9046709242

main90467-09242

90467W0011

main90467-W0011

32 parts on this diagram · 1 diagram in section
