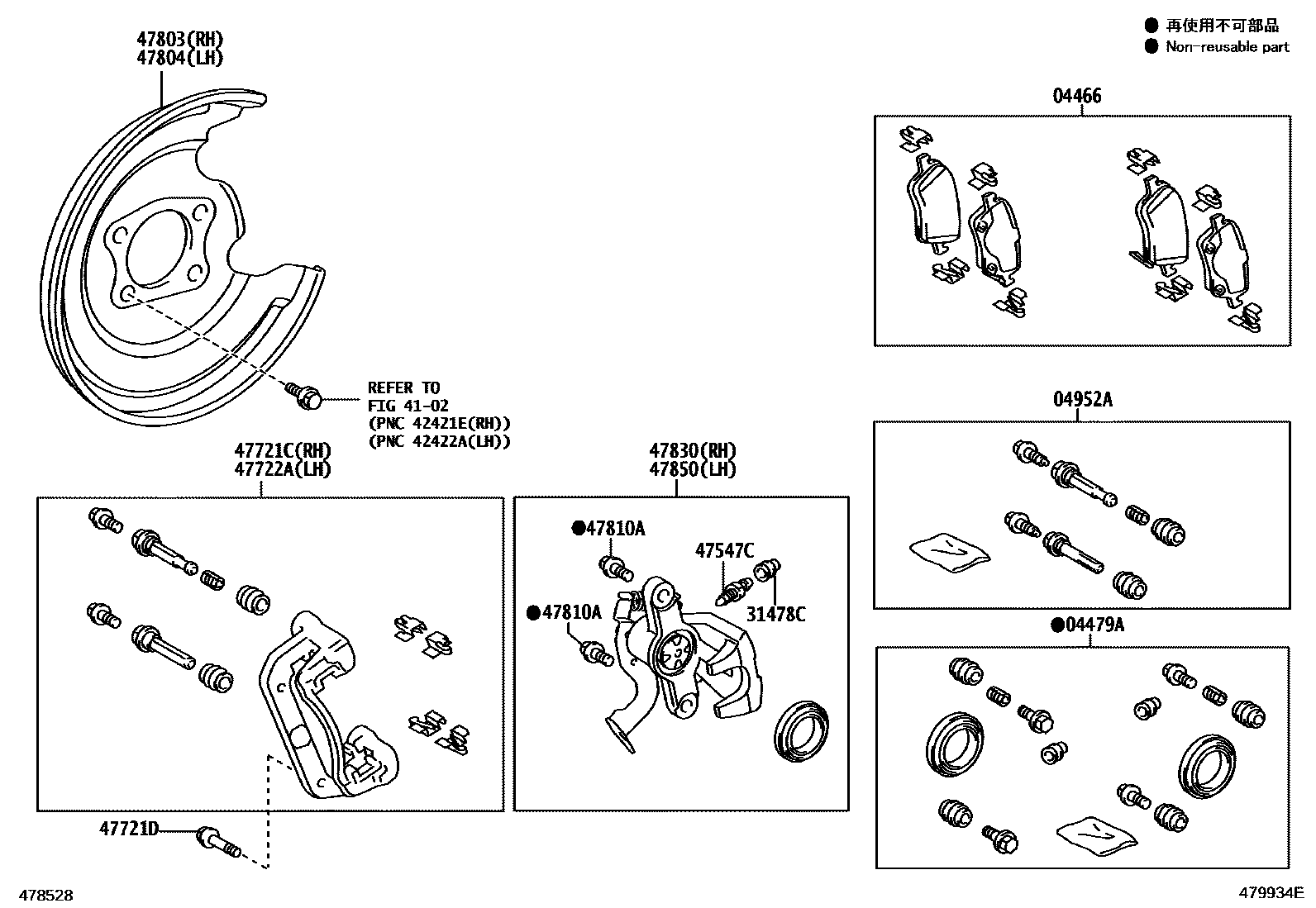

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02181iNDE180201306-201701

MARK GALFER G3409

main04466-02290iNDE180..TUP201311-201506

MARK GALFER G3409

sub04466-02291

main04466-02291iNDE180..TUP201506-201701

MARK GALFER G3409

sub04466-02292

main04466-02292iNRE180..TUP201702-201901

MARK GALFER G3409

main04466-02350iZRE182201702-201912

MARK GALFER GA3409

main04466-47080iZRE18#..GCC201606-201901

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iNDE180..TUP201306-201912

main04479-52170iZRE18#..GCC201606-201901

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iNDE180..TUP201306-201912

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZRE18#..GCC201606-201901

main90069-39001iNDE180,ZRE18#..GEN..TUP201306-201912

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZRE18#..GCC201606-201901

main90069-39000iNDE180,NRE180,ZRE18#..SAP201306-201912

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09020iZRE182201306-201912

main47821-09081iNDE180..TUP201506-201602

main47821-09082iNDE180,ZRE18#..GEN..TUP201602-201901

main47821-12151iZRE18#..GCC201606-201901

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10576iZRE182201306-201912

*10-1.25PX19-15.25

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iZRE18#..GCC201606-201901

main47822-09020iNDE180..TUP201306-201912

main47822-09081iNDE180..TUP201506-201602

main47822-09082iNDE180..TUP201602-201901

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02120iNDE180..TUP201306-201912

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02120iNDE180,NRE180,ZRE18#..SAP201306-201912

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main47715-05060iNDE180;NRE180,ZRE18#..SAP201306-201912

sub47715-28060

main90015-AA102iZRE18#..GCC201606-201901

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iZRE182201306-201912

main47830-02101iNDE180,ZRE18#..GEN..TUP201506-201901

main47830-12250iZRE18#..GCC201606-201901

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iZRE182201306-201912

sub47850-02101

main47850-02101iNRE180..TUP201506-201901

main47850-12250iZRE18#..GCC201606-201901

14 parts on this diagram · 3 diagrams in section
