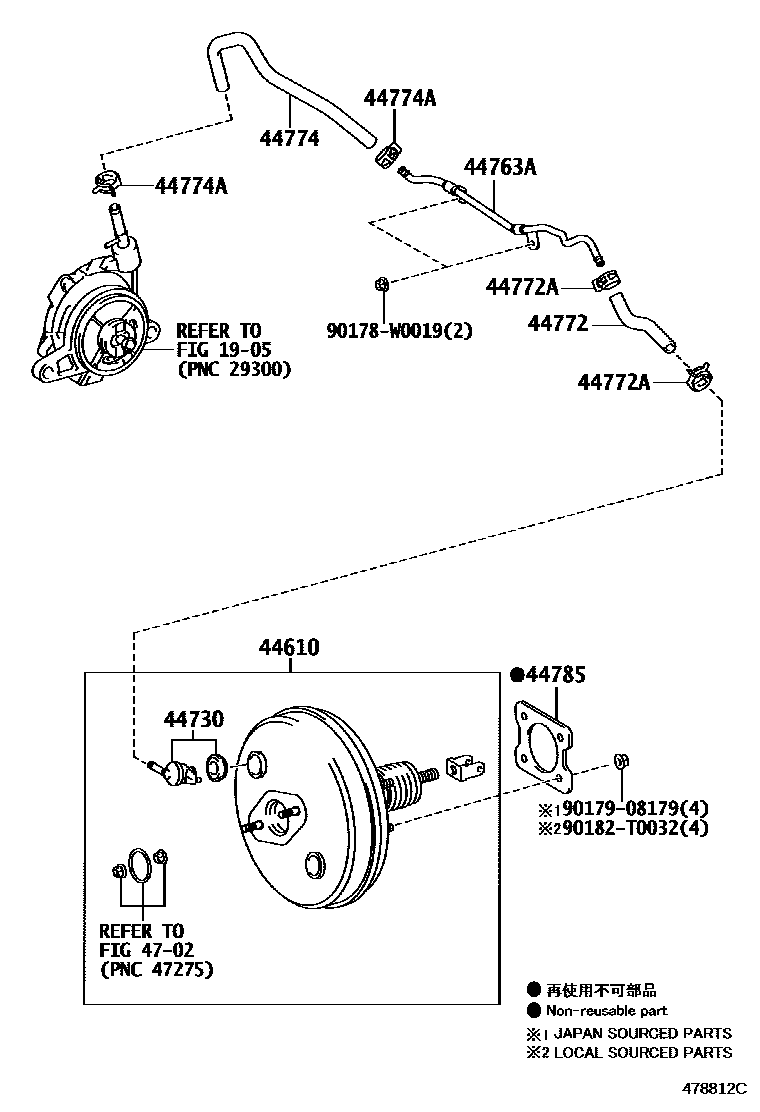

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09A50iZRE18#..GEN..SAP201306-201701

sub44610-09D30

main44610-09A70iZRE18#..N..SA201401-201701

VSC-WITH(W/CUT OFF SWITCH)

sub44610-09D50

main44610-09C40iNDE180,NRE180,ZRE18#..SA201401-201701

sub44610-09E30

main44610-09D30iNDE180,ZRE18#..GEN..TUP201606-201912

main44610-09D40iZRE181..GEN..TUP;ZRE182..N..GEN..TUP201606-201901

VEHICLE STABILITY CONT-WITH(W/CUT OFF SWITCH)

main44610-09D40iZRE182..GEN201912

main44610-09D50iZRE182..SA201912

main44610-09D50iZRE18#..SA201701-201912

VEHICLE STABILITY CONT-WITH(W/CUT OFF SWITCH)

main44610-09E30iNDE180,NRE180,ZRE18#..SA201701-201912

main44610-12L30iZRE18#..GCC201606-201901

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iNDE180,NRE180,ZRE18#..SAP201306-201912

main44730-20170iZRE18#..GCC201606-201901

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12400iZRE18#..GEN..SAP201306-201912

main44763-12440iZRE18#..SA201401-201912

main44763-12450iNDE180..SAP201401-201912

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02340iZRE18#..GEN..SAP201712-201912

main44772-02350iZRE18#..SA201712-201912

main44772-02360iNRE180..TUP201712-201808

main44772-12580iNDE180..TUP201306-201901

main44772-12620iZRE18#..SA201401-201912

main44772-12701iNRE180..SAP201401-201912

main44772-12710iNRE180..TUP201606-201711

sub44772-02360

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iZRE18#..SAP201401-201912

main90467-16014iNDE180,NRE180..SAP201306-201912

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02410iZRE18#..GEN..SAP201712-201912

main44774-02420iZRE18#..TUP201712-201901

main44774-02430iZRE18#..SA201712-201912

main44774-02440iNRE180..TUP201712-201808

main44774-12530iZRE18#..GEN..SAP201401-201711

sub44774-02410

main44774-12560iZRE18#..SA201401-201711

main44774-12740iNRE180..TUP201606-201711

sub44774-02440

main44774-12751iNDE180..TUP201306-201901

main44774-12770iNDE180..SAP201401-201912

main44774-64040iZRE18#..TUP201606-201711

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iZRE18#..TUP201401-201912

main90467-16014iNDE180..TUP201306-201901

main90467-16014iNDE180..SAP201401-201912

NO.1:REFER ILLUST.

main96133-41500iNDE180..SAP201401-201912

NO.2:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-05020iNDE180,NRE180,ZRE18#..SAP201606-201912

main44785-05020iNDE180..TUP201306-201701

(L)

main44785-12040iNDE180,NRE180,ZRE18#..SAP201306-201701

(J)

4702

90178W0019

main90178-W0019

9017908179

main90179-08179

90182T0032

main90182-T0032

13 parts on this diagram · 7 diagrams in section
