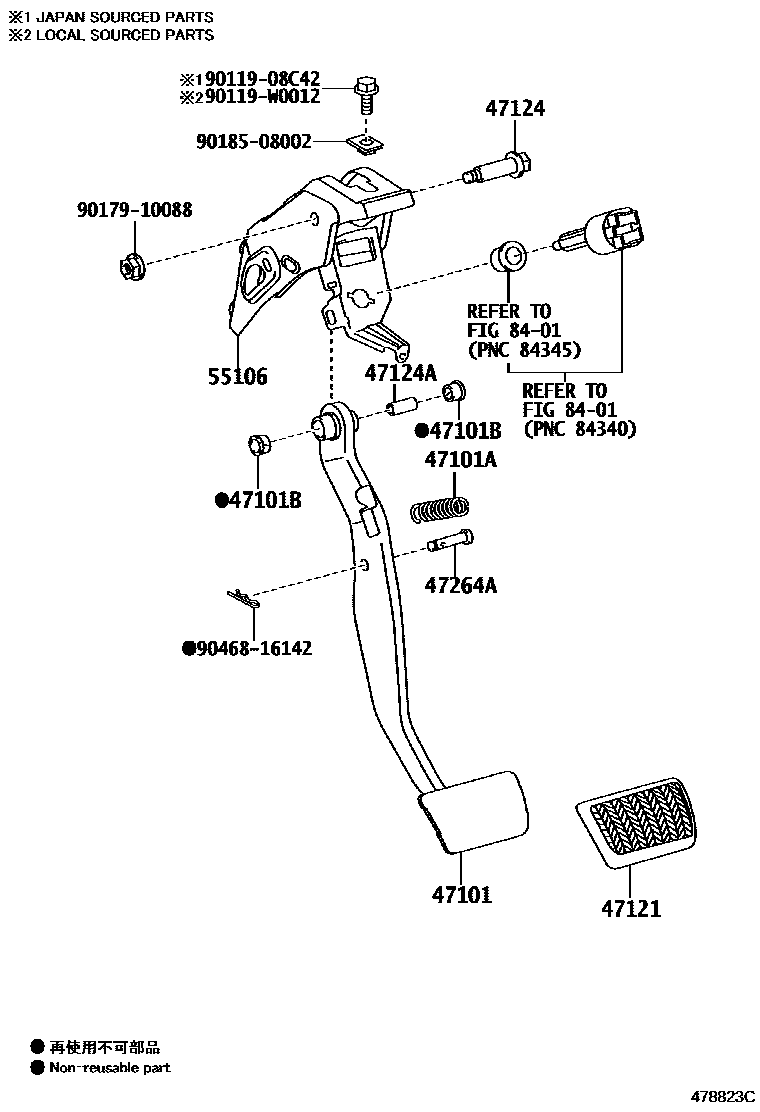

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-02450iNDE180..TUP201306-201605

main47101-02460iZRE182..CVT..GEN201912

main47101-12710iZRE182..6F..SA201912

main47101-12720iZRE18#..CVT..SA201701-201912

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15007iNDE180..TUP201306-201605

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNDE180..TUP201306-201605

47121PAD, BRAKE PEDAL

main31321-42010iNDE180,NRE180,ZRE18#..6F..SAP201606-201912

main47121-42010iZRE18#..CVT..SAP201401-201701

47124SHAFT, BRAKE PEDAL

main90101-10039iNDE180..TUP201306-201605

main90109-10174iZRE182..SA201912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iZRE18#..GEN..SAP201306-201701

47264APIN(FOR PUSH ROD)

main47148-33011iNDE180..TUP201306-201605

main90249-08256iNDE180,NRE180,ZRE18#..SAP201401-201701

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02160iNDE180..TUP201306-201605

main55106-12680iZRE182..SA201912

8401

9011908C42

main90119-08C42

90119W0012

main90119-W0012

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

14 parts on this diagram · 2 diagrams in section
