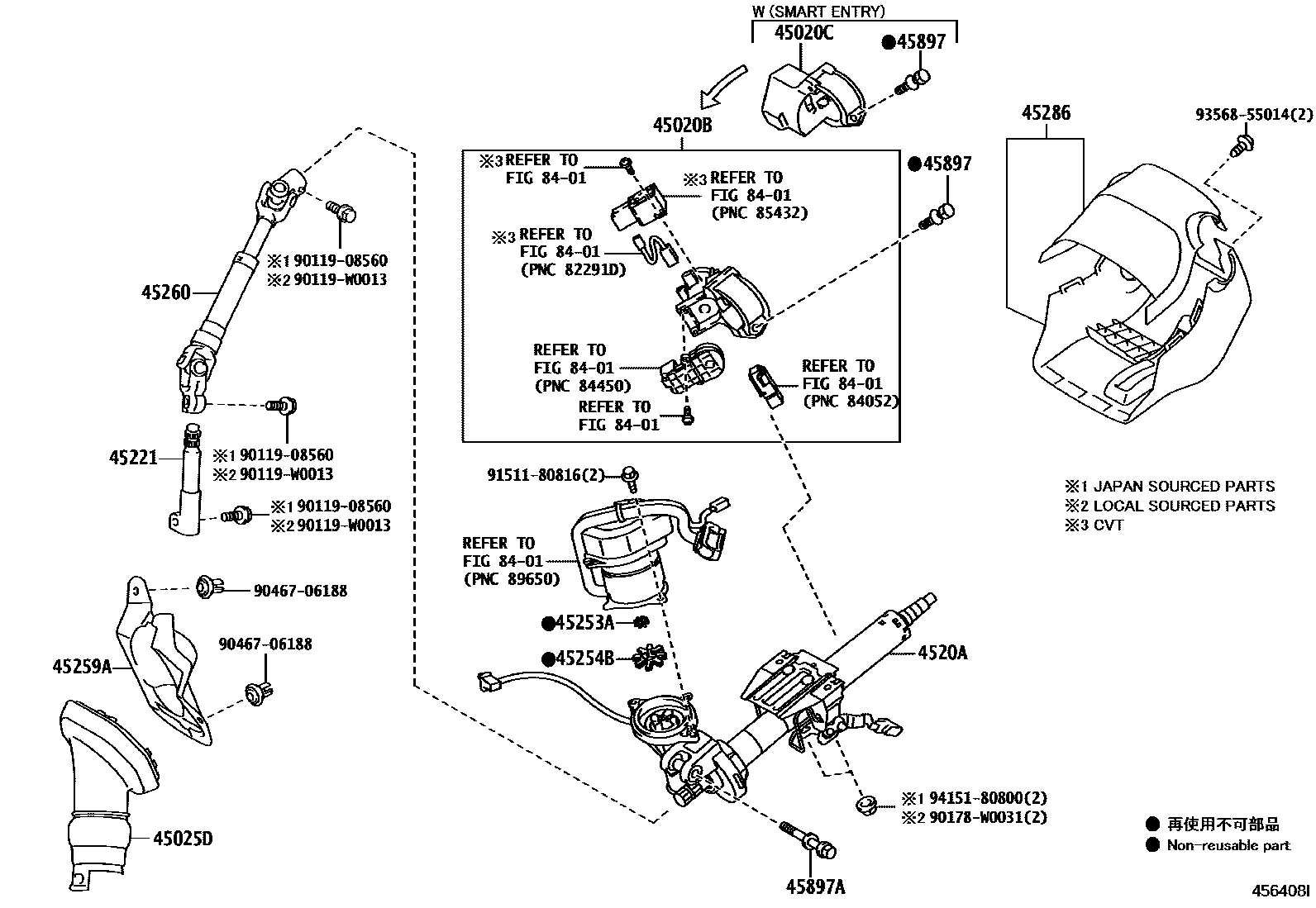

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45020-02460iZRE18#..CVT201401-201912

main45020-02480iNDE180,NRE180,ZRE18#..6F..SAP201306-202309

sub45020-02760

main45020-02650iZRE18#..CVT201605-201806

sub45020-02460

main45020-02760iNDE180,NRE180,ZRE18#..6F201512-201806

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D120iZRE182..G201912

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iNDE180,NRE180,ZRE18#..SA201401-201912

main45025-02090iNRE180..TUP201306-201912

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02132iZRE182..G..SA201912

main4520A-02140iNDE180,NRE180,ZRE18#..SA201401-201403

sub4520A-02141

main4520A-02141iNDE180,NRE180,ZRE18#..SA201404-201411

sub4520A-02142

main4520A-02142iNDE180,NRE180,ZRE18#..SA201412-201508

sub4520A-02143

main4520A-02143iNDE180,NRE180,ZRE18#..SA201509-201912

main4520A-02153iZRE182..G..GEN201912

main4520A-02160iNDE180,ZRE18#..GEN201306-201403

sub4520A-02161

main4520A-02161iNDE180,ZRE18#..GEN201404-201411

sub4520A-02162

main4520A-02162iNDE180,ZRE18#..GEN201412-201508

sub4520A-02163

main4520A-02163iNRE180..TUP201509-201912

45221SHAFT, STEERING INTERMEDIATE

main45221-02100iNRE180..TUP201306-201912

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iNDE180..TUP201306-201912

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZRE182201306-201912

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iNDE180,NRE180,ZRE18#..SA201401-201912

main45259-02080iZRE18#..GEN..SAP201306-201912

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02160iNDE180..TUP201306-201912

45286COVER, STEERING COLUMN

main45286-02942-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

sub45286-02942

main45286-02942-C1iNDE180..TUP201505-201605

EU BLACK,TRIM0#,2#

sub45286-02942

main45286-02945-C0iZRE182..G201912

BLACK,TRIM2#

main45286-02946-C0iZRE182..N201401-201912

BLACK,TRIM2#

main45286-02946-C0iZRE181..CVT..N..GEN..SAP201701-201912

BLACK,TRIM0#,2#

main45286-02946-C0iZRE182..D201912

BLACK,TRIM2#,3#

main45286-02950-C0iNDE180,ZRE18#..TUP201606-201901

EU BLACK,TRIM0#,2#

45897BOLT, STEERING LOCK SET

main45897-12020iNDE180,NRE180,ZRE18#..SAP201401-201604

main45897-12050iNDE180,NRE180,ZRE18#..SAP201306-201912

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iNDE180,NRE180,ZRE18#..SAP201306-201912

main90119-10981iNRE180..TUP201607-201901

(J)

main90119-W0215iNRE180..TUP201607-201901

(L)

8401

9011908560

main90119-08560

90119W0013

main90119-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

9151180816

main91511-80816

9356855014

main93568-55014

9415180800

main94151-80800

20 parts on this diagram · 2 diagrams in section
