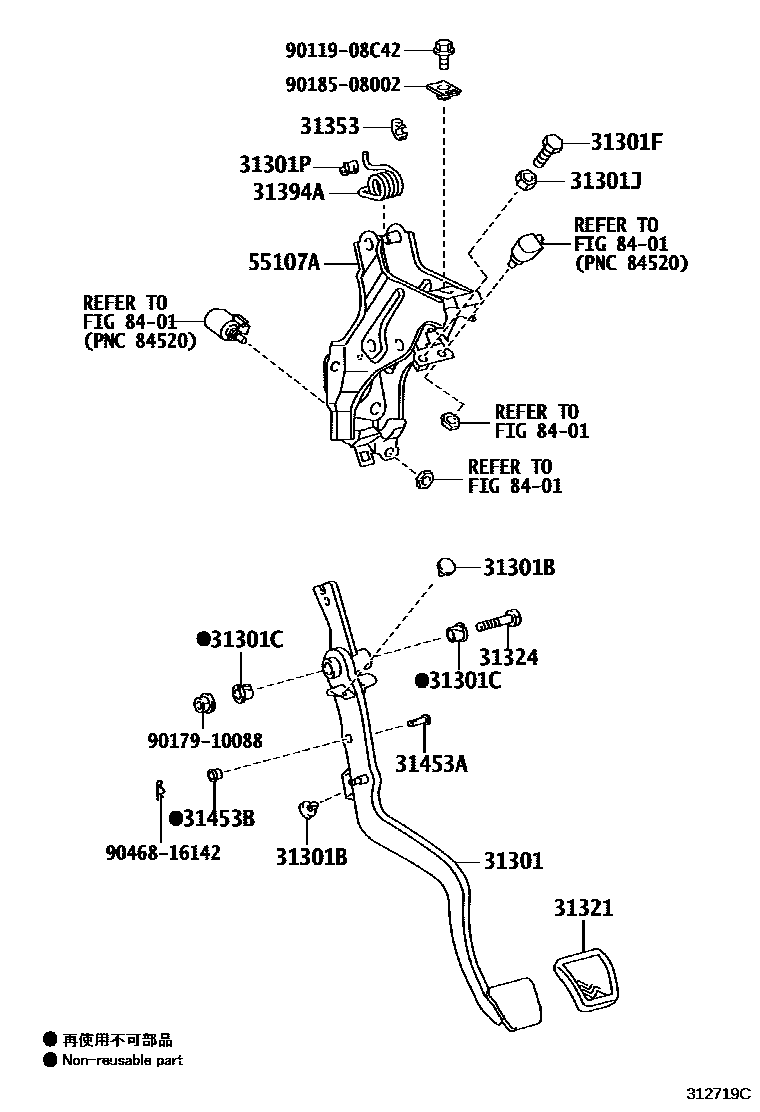

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0F081iNRE180..TUP201606-201808

main31301-0F141iNDE180..TUP201306-201901

main31301-12620iZRE182..D..GEN201401-201912

main31311-12371iZRE182..6F..SA201401-201912

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNDE180,NRE180,ZRE18#..6F..SAP201401-201912

main90541-W0002iNDE180..TUP201306-201901

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNDE180,ZRE181..6F..TUP201306-201912

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZRE18#..6F..GEN..SAP201401-201912

main90101-10369iNDE180,NRE180,ZRE18#..6F..SA201306-201912

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE182..D..GEN201401-201912

main94130-61000iZRE182..6F..SA201306-201912

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iZRE18#..6F..GEN..SAP201306-201912

31321PAD, CLUTCH PEDAL

main31321-42010iNDE180,NRE180,ZRE18#..6F..SAP201306-201912

31324SHAFT, CLUTCH PEDAL

main90101-10039iNDE180,NRE180,ZRE18#..6F..SA201401-201912

main90109-10167iNDE180,ZRE181..6F..TUP201306-201912

31353HOLDER, CLUTCH PEDAL SPRING

main31353-0F010iNDE180..TUP201306-201901

main31353-26010iNDE180,ZRE18#..6F..SAP201401-201912

31394ASPRING, PEDAL W/HOOK

main31394-0F020iNDE180,ZRE181..6F..TUP201306-201901

main31394-12060iNDE180,ZRE18#..6F..SA201401-201912

main31394-12080iZRE18#..6F..GEN..SAP201401-201912

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iNDE180..TUP201306-201912

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZRE18#..6F..GEN..SAP201306-201912

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0F061iNRE180..TUP201606-201808

main55107-0F071iNDE180..TUP201306-201901

main55107-12271iNRE180..SAP201401-201912

main55107-12291iNDE180,ZRE18#..6F..SA201401-201912

main55107-12301iZRE182..D..GEN201401-201912

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

18 parts on this diagram · 9 diagrams in section
