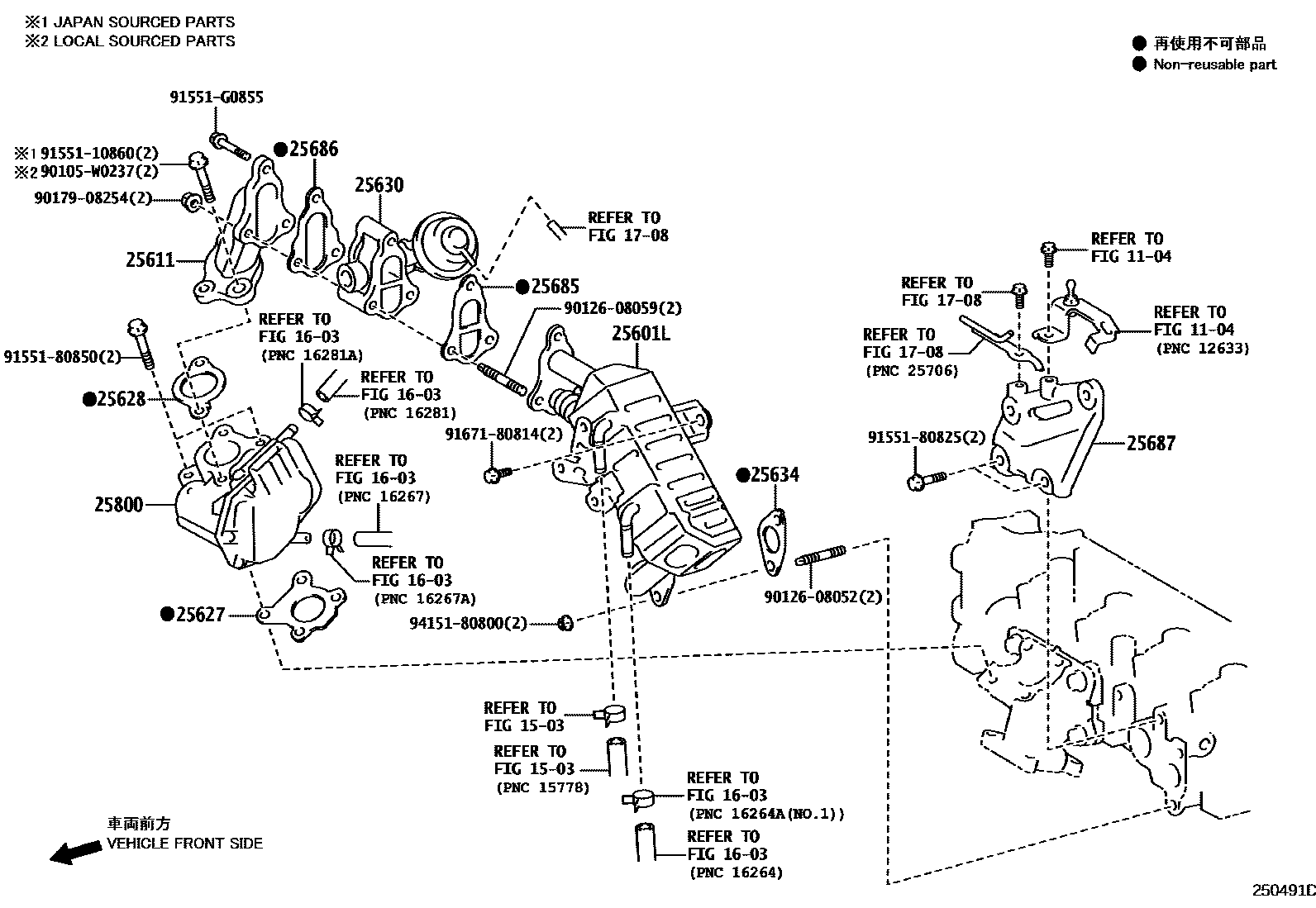

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1104

1503

1603

1708

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-33070i1NDTV..NDE180201306-201411

sub25601-33071

main25601-33071i1NDTV..NDE180..SAP201412-201901

25611CONNECTOR, EGR PIPE

main25611-33020i1NDTV..NDE180..TUP201306-201609

main25611-33021i1NDTV..NDE180..SAP201609-201901

25627GASKET, EGR VALVE

main25627-33010i1NDTV..NDE180..TUP201306-201901

25628GASKET, EGR INLET

main25628-33040i1NDTV..NDE180..TUP201306-201901

25630VALVE ASSY, EGR, NO.2

main25630-33010i1NDTV..NDE180201306-201501

main25630-33020i1NDTV..NDE180..TUP201501-201901

25634GASKET, EGR PIPE

main25634-33010i1NDTV..NDE180201306-201502

main25634-33030i1NDTV..NDE180..TUP201503-201901

main25634-47010i1NRFE..NRE180..TUP201401-201808

25685GASKET, EGR COOLER, NO.1

main25685-33010i1NDTV..NDE180..TUP201306-201901

25686GASKET, EGR COOLER, NO.2

main25686-33010i1NDTV..NDE180..TUP201306-201901

25687BRACKET, EGR COOLER, NO.1

main25687-33021i1NDTV..NDE180..TUP201306-201901

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-33011i1NDTV..NDE180..TUP201306-201901

90105W0237

main90105-W0237

9012608052

main90126-08052

9012608059

main90126-08059

9017908254

main90179-08254

9155110860

main91551-10860

9155180825

main91551-80825

9155180850

main91551-80850

91551G0855

main91551-G0855

9167180814

main91671-80814

9415180800

main94151-80800

24 parts on this diagram · 3 diagrams in section
