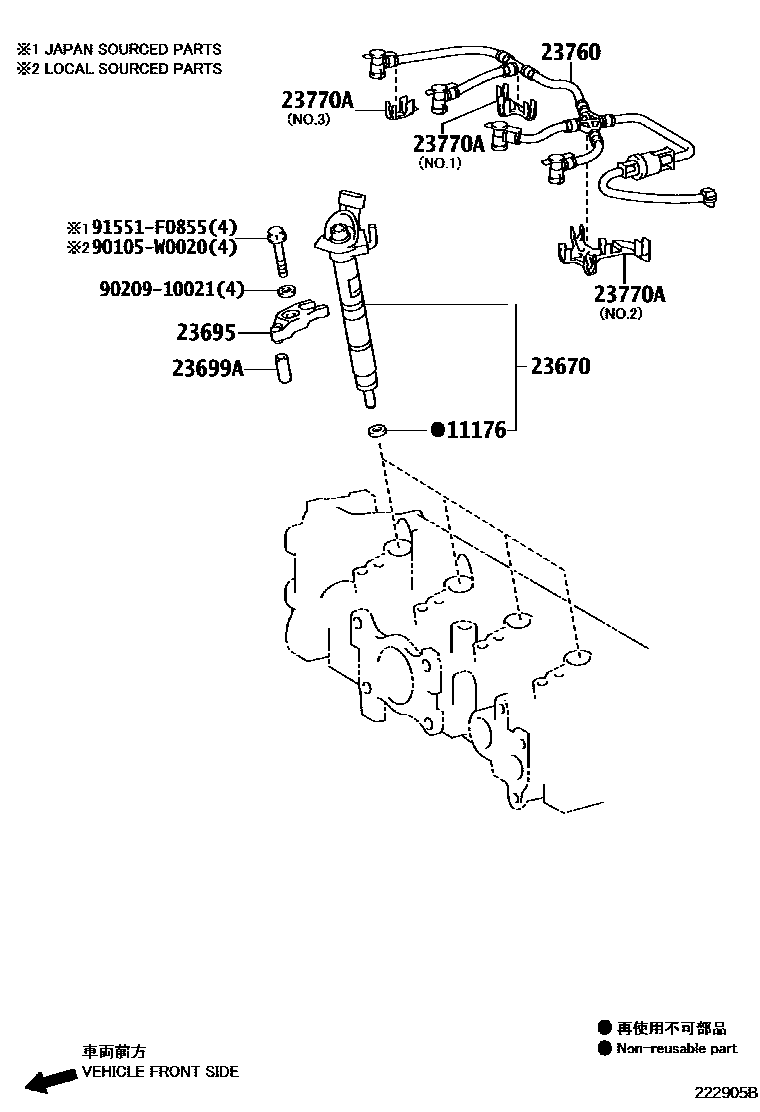

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010i1NDTV..NDE180..TUP¥300201306-201901

23670INJECTOR ASSY

main23670-09390i1NDTV..NDE180..TUP¥50,400201306-201901

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-33020i1NDTV..NDE180..TUP¥1,070201306-201901

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-33020i1NDTV..NDE180..TUP¥260201306-201901

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0W010i1NDTV..NDE180..TUP¥3,650201306-201901

23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)

main23841-33030i1NDTV..NDE180..TUP¥260201306-201901

NO.1:REFER ILLUST.

main23841-33040i1NDTV..NDE180..SAP¥370201306-201901

NO.2:REFER ILLUST.

main23841-33050i1NDTV..NDE180..SAP¥180201306-201901

NO.3:REFER ILLUST.

90105W0020

main90105-W0020

9020910021

main90209-10021¥90

91551F0855

main91551-F0855¥100

9 parts on this diagram · 1 diagram in section
