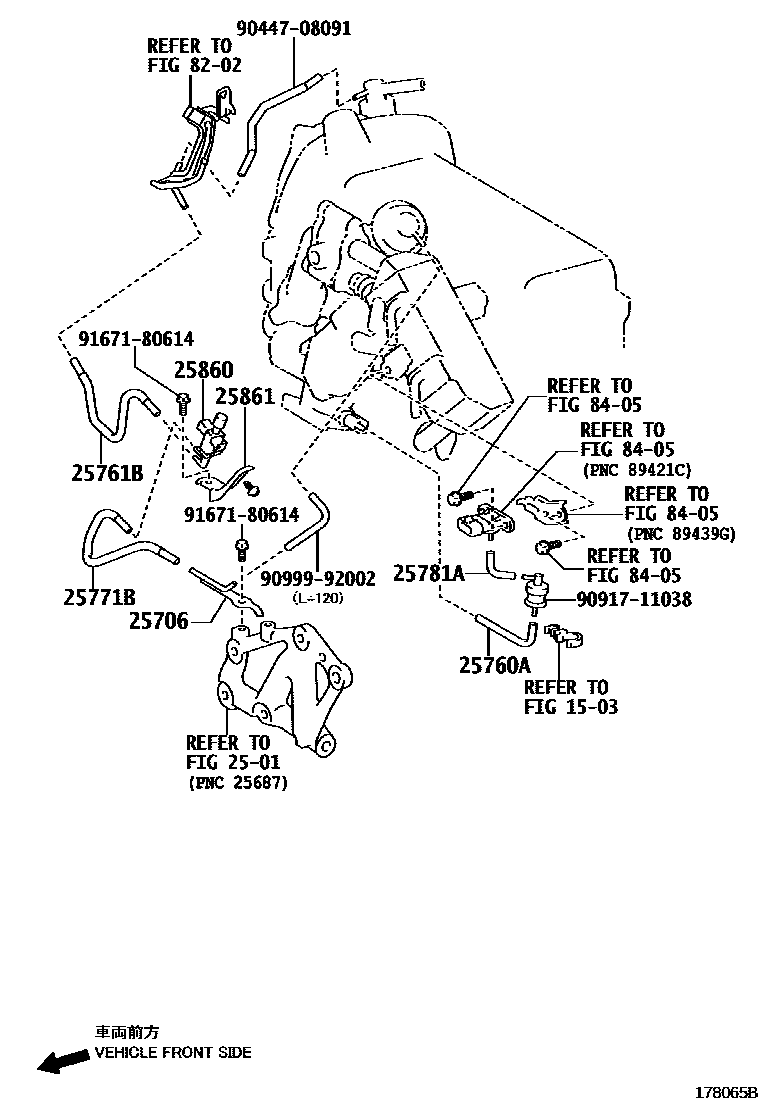

VACUUM PIPING

0001 1 0002 1 0003 1

1503

2501

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-33080i1NDTV..NDE180..TUP201306-201605

25760AHOSE ASSY, VACUUM TRANSMITTING

main257A1-33010i1NDTV..NDE180..SAP201306-201701

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-33060i1NDTV..NDE180201306-201410

main25761-33080i1NDTV..NDE180..TUP201606-201901

main25761-37011i1ZRFE..ZRE181..TUP201606-201901

main25761-37080i2ZRFE..ZRE182201912

25771BHOSE, VACCUM TRANSMITTING, NO.2

main25771-33050i1NDTV..NDE180201306-201410

main25791-33020i1NDTV..NDE180..SAP201411-201701

25781AHOSE, VACUUM TRANSMITTING, NO.3

main25791-33010i1NDTV..NDE180..TUP201306-201605

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y020i1NRFE..NRE180..TUP201606-201808

main25860-30070i1NDTV..NDE180..TUP201606-201901

main25860-47010i1NRFE..NRE180..SAP201701

main90910-12281i2ZRFE..ZRE182..SAP201606-201912

25861BRACKET, VACUUM SWITCHING VALVE

main25861-33020i1NDTV..NDE180..SAP201306-201701

main25861-37010i2ZRFE..ZRE182201912

8202

8405

9044708091

main90447-08091

9091711038

main90917-11038

9099992002

main90999-92002

9167180614

main91671-80614

15 parts on this diagram · 3 diagrams in section
