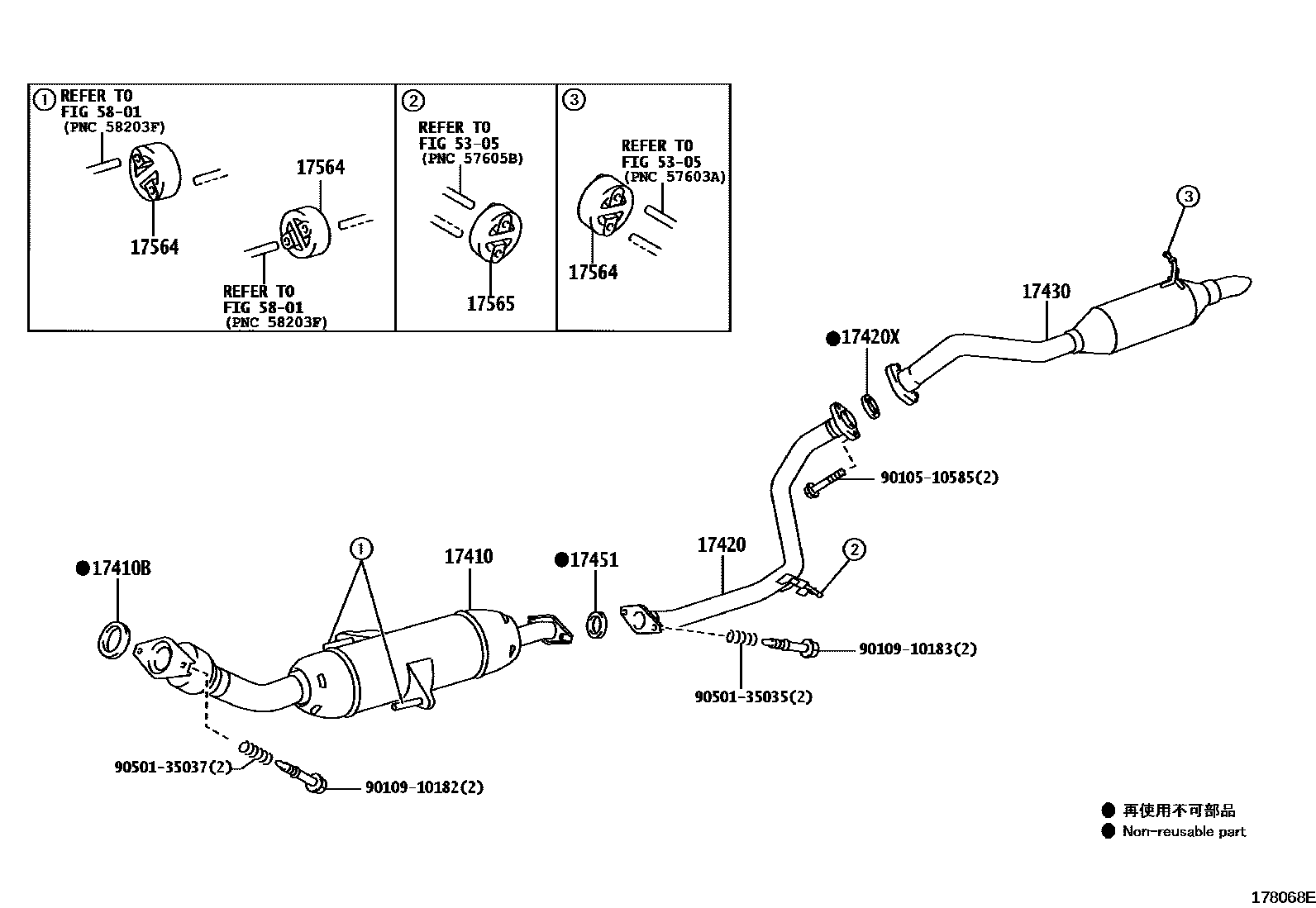

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0N080i1NDTV..NDE180..TUP201306-201901

main17410-0N090i1NDTV..NDE180..SAP201401-201912

main17410-0T570i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

*114=TOYOTA/RD2RD1/Y

main17410-0T580i1ZRFE,2ZRFE..ZRE18#..SAP201401-201912

main17410-0Y080i1NRFE..NRE180..TUP201606-201808

*114=TOYOTA/EU CE8/Y

main17410-0Y090i1NRFE..NRE180..SAP201401-201912

*114=TOYOTA/CE8/Y

17410BGASKET, EXHAUST PIPE

main17451-0R010i1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP¥1,360201306-201901

main17451-28040i1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..SAP¥1,510201401-202311

sub17451-28041¥1,510

main17451-28041i2ZRFE..ZRE182¥1,510202311

main17451-47020i1NRFE..NRE180..SAP¥1,810201401-201912

sub17451-21070¥1,360

17420PIPE ASSY, EXHAUST, CENTER

main17420-0N010i1NDTV..NDE180..TUP201306-201901

main17420-0N020i1NDTV..NDE180..SAP201401-201912

main17420-0T030i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main17420-0T040i2ZRFE..ZRE182201401-201912

main17420-0Y010i1NRFE..NRE180..TUP201606-201808

main17420-0Y020i1NRFE..NRE180..SAP201401-201912

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP¥500201306-201912

17430PIPE ASSY, EXHAUST, TAIL

main17430-0N130i1NDTV..NDE180..SAP201401-201912

main17430-0N160i1NDTV..NDE180..TUP201306-201901

main17430-0T270i1NRFE..NRE180..TUP201606-201901

main17430-0T280i1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP201401-201912

17451GASKET, EXHAUST PIPE

main17451-0D112i1NDTV..NDE180..TUP¥1,170201306-201901

main17451-28032i1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP¥1,360201401-201912

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0J031i1NDTV..NDE180..TUP¥680201306-201901

main17565-22040i1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP¥670201401-201912

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D100i1NDTV..NDE180..TUP¥760201306-201901

main17565-22030i2ZRFE..ZRE182¥570201401-201912

5305

5801

9010510585

main90105-10585¥120

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

15 parts on this diagram · 6 diagrams in section
