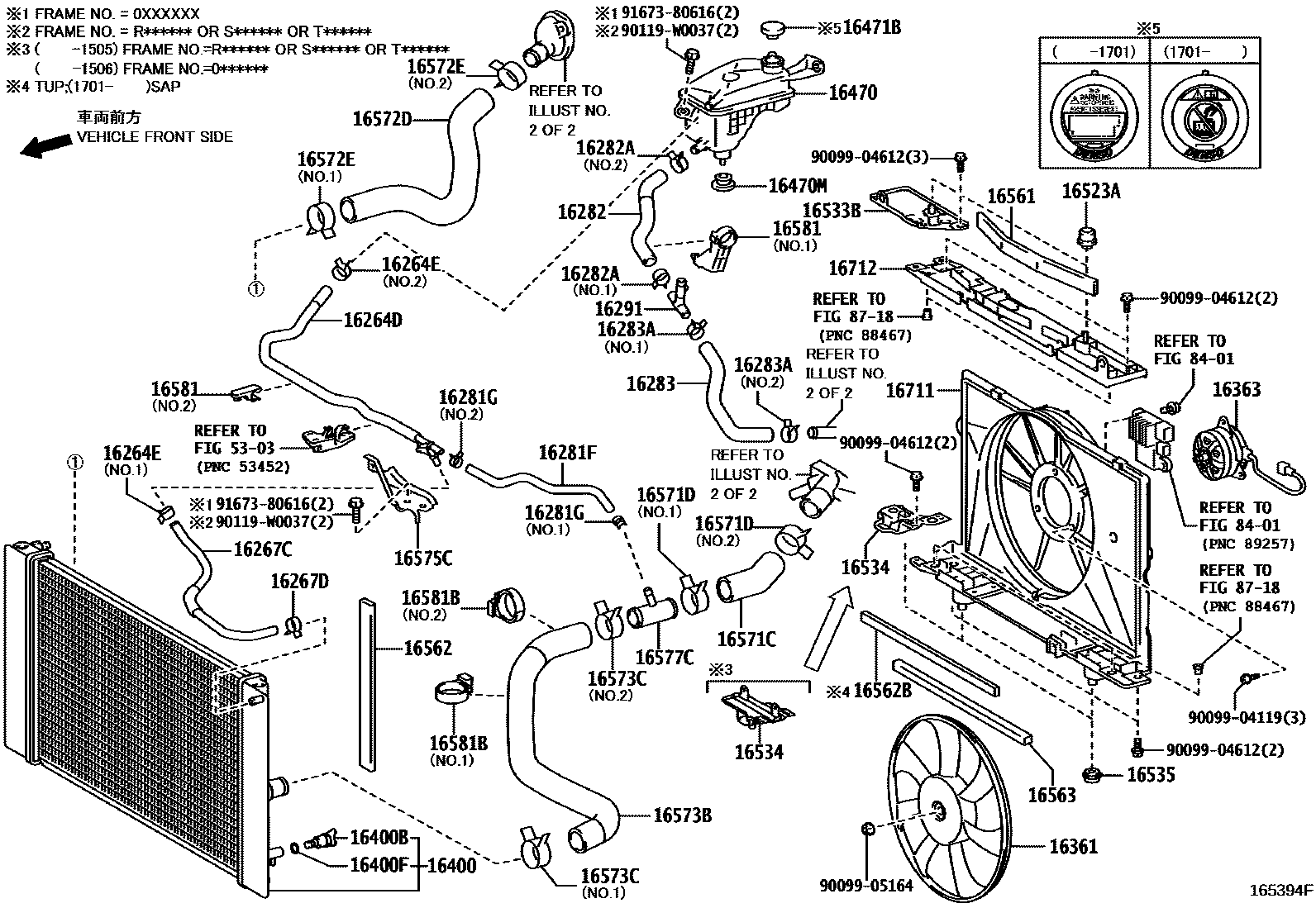

RADIATOR & WATER OUTLET
16264HOSE, WATER BY-PASS, NO.2
(L)
(J)
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16267HOSE, WATER BY-PASS, NO.3
(L)
(J)
16267CHOSE, WATER BY-PASS, NO.4
FRAME NO.=0XXXXXX
16267DCLIP(FOR WATER BY-PASS HOSE NO.4)
FRAME NO.=0XXXXXX
*154
16281HOSE, WATER BY-PASS, NO.4
(L)
(J)
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
NO.1:REFER ILLUST.
NO.1
NO.2:REFER ILLUST.
NO.2
NO.1:REFER ILLUST.
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
(L),NO.2:SEE ILLUST
(L),NO.2
(J),NO.2:SEE ILLUST,NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
(J),NO.2
NO.1
16283HOSE, WATER BY-PASS, NO.6
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
(L),NO.2:SEE ILLUST
NO.1:REFER ILLUST.
(J),NO.2:SEE ILLUST,NO.1:REFER ILLUST.
16361FAN
*154
FRAME NO.=0XXXXXX
FRAME NO.=0XXXXXX
*154
16363MOTOR, COOLING FAN
*154
FRAME NO.=0XXXXXX
16400RADIATOR ASSY
*154
FRAME NO.=0XXXXXX
*154
FRAME NO.=0XXXXXX
16400BPLUG, RADIATOR DRAIN COCK
FRAME NO.=0XXXXXX
*154
*154
16400FPACKING(FOR RADIATOR DRAIN COCK)
FRAME NO.=0XXXXXX
*154
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
(J)
(L)
16523ACUSHION, RADIATOR SUPPORT
16533BSUPPORT, RADIATOR, NO.1
*154
FRAME NO.=0XXXXXX
16534SUPPORT, RADIATOR, NO.2
*154
FRAME NO.=0XXXXXX
*154
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
*154
FRAME NO.=0XXXXXX
*154
16562SEAL, RADIATOR TO SUPPORT, NO.2
*154
AIR CONDITIONER-MANUAL AIR CONDITIONER
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16563SEAL, RADIATOR TO SUPPORT, NO.3
*154
16571DCLIP, RADIATOR HOSE, NO.1
(L),NO.1:SEE ILLUST
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(J),NO.1:SEE ILLUST
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
(L),NO.1:SEE ILLUST
NO.2:REFER ILLUST.
(J),NO.1:SEE ILLUST
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1
NO.2:REFER ILLUST.
(L),NO.1:SEE ILLUST
(L),NO.2
NO.2:REFER ILLUST.
(J),NO.1:SEE ILLUST
(J),NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
16577CPIPE, RADIATOR
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1:REFER ILLUST.
NO.1
TYPE A,NO.2
NO.2:REFER ILLUST.
TYPE B,NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16712SHROUD, FAN, NO.2
*154
FRAME NO.=0XXXXXX
*154
FRAME NO.=0XXXXXX
5303
8401
8718
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
90119W0037
main90119-W0037
9167380616
main91673-80616
50 parts on this diagram · 8 diagrams in section
