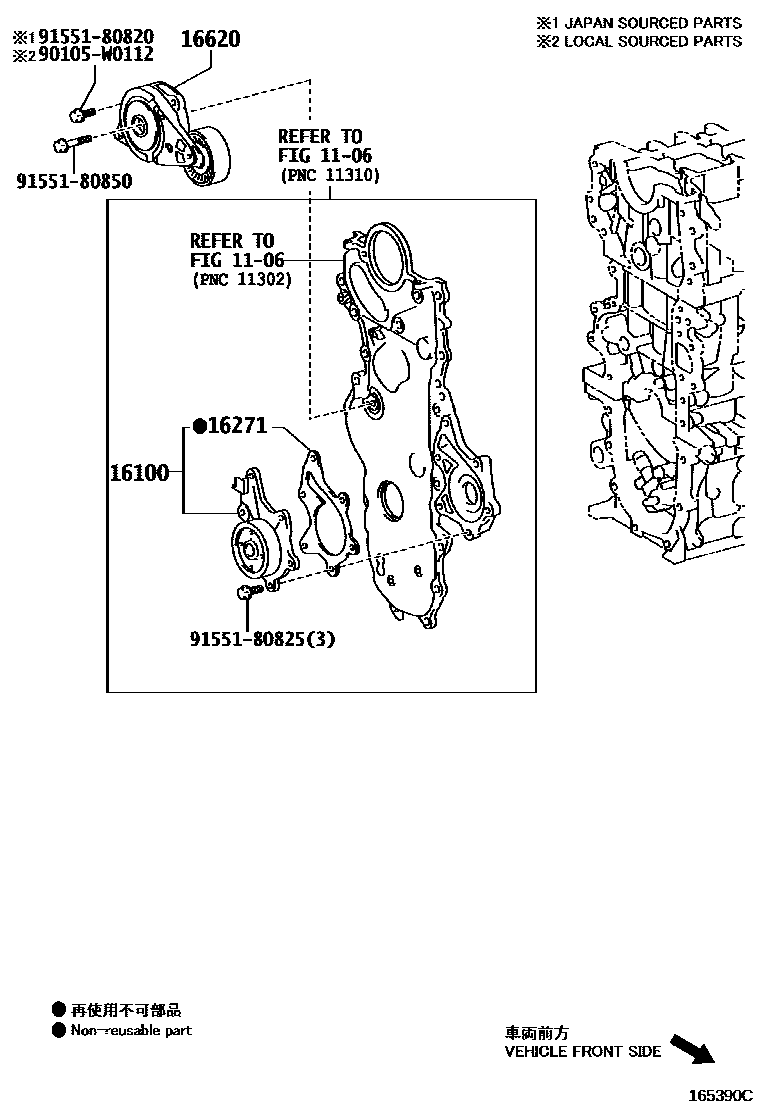

WATER PUMP

0001 1 0002 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09501i1ZRFE,2ZRFE..ZRE18#201401-202009

(L)

sub16100-09502

main16100-09502i2ZRFE..ZRE182202009

(L)

main16100-39466i2ZRFE..ZRE182201401-201912

(J)

main16100-39525i1NDTV..NDE180..TUP201306-201607

sub16100-39526

main16100-39526i1NDTV..NDE180201607-201912

main16100-80010i1NRFE..NRE180201401-201912

sub16100-80019

16271GASKET, WATER PUMP

main16271-33030i1NDTV..NDE180..SAP201306-201901

main16271-37010i1ZRFE,2ZRFE..ZRE18#..SAP201401-201912

main16271-47031i1NRFE..NRE180..TUP201401-201808

16620TENSIONER ASSY, V-RIBBED BELT

main16620-33021i1NDTV..NDE180201306-201411

sub16620-33022

main16620-33022i1NDTV..NDE180201412-201512

sub16620-33023

main16620-33023i1NDTV..NDE180..TUP201601-201703

sub16620-33024

main16620-33024i1NDTV..NDE180201704-201801

sub16620-33025

main16620-33025i1NDTV..NDE180201802-201912

main16620-47030i1NRFE..NRE180201401-201912

sub16620-47031

90105W0112

main90105-W0112

9155180820

main91551-80820

9155180825

main91551-80825

9155180850

main91551-80850

8 parts on this diagram · 3 diagrams in section
