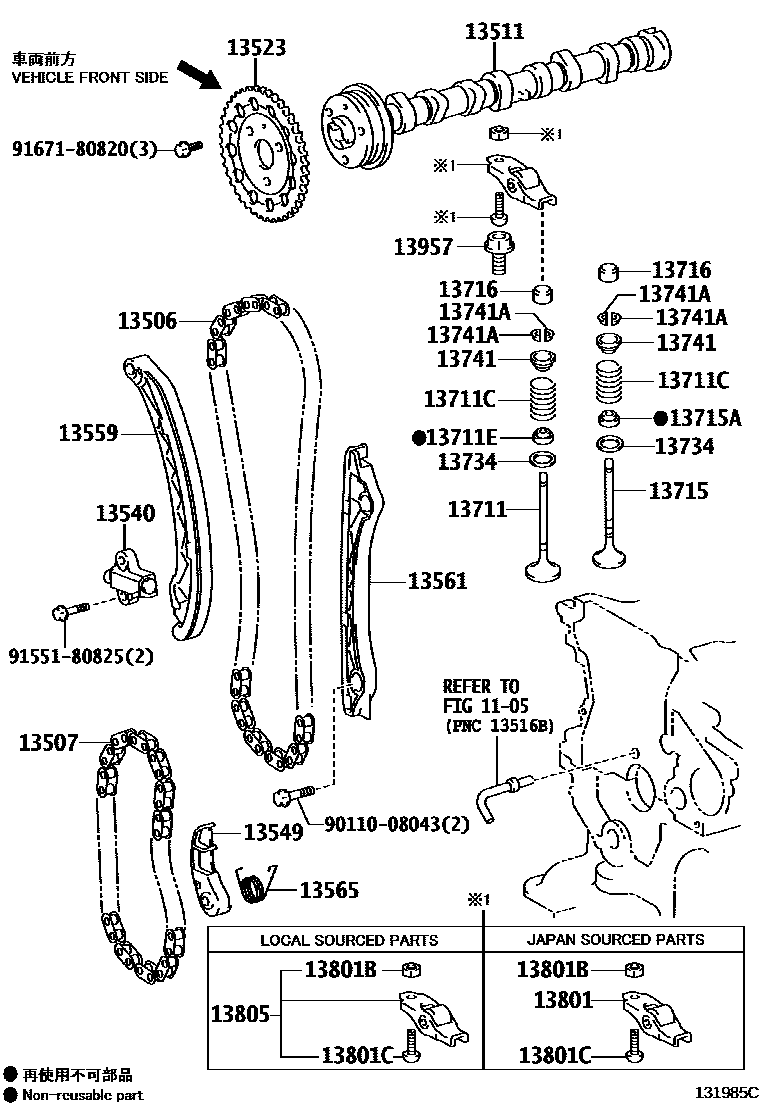

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13549PLATE, CHAIN TENSIONER
MARK UK
W/O MARK
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(L)
(J)
13565SPRING, CHAIN DAMPER
(L)
(J)
13711VALVE, INTAKE
(L)
(J)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13715VALVE, EXHAUST
(L)
(L)
(J)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
(J)
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
TYPE A:REFER ILLUST.
(J)
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(L)
(J)
(J)
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13805ARM SET, VALVE ROCKER
13957PIVOT, VALVE ROCKER ARM
9011008043
main90110-08043
9155180825
main91551-80825
9167180820
main91671-80820
26 parts on this diagram · 3 diagrams in section
