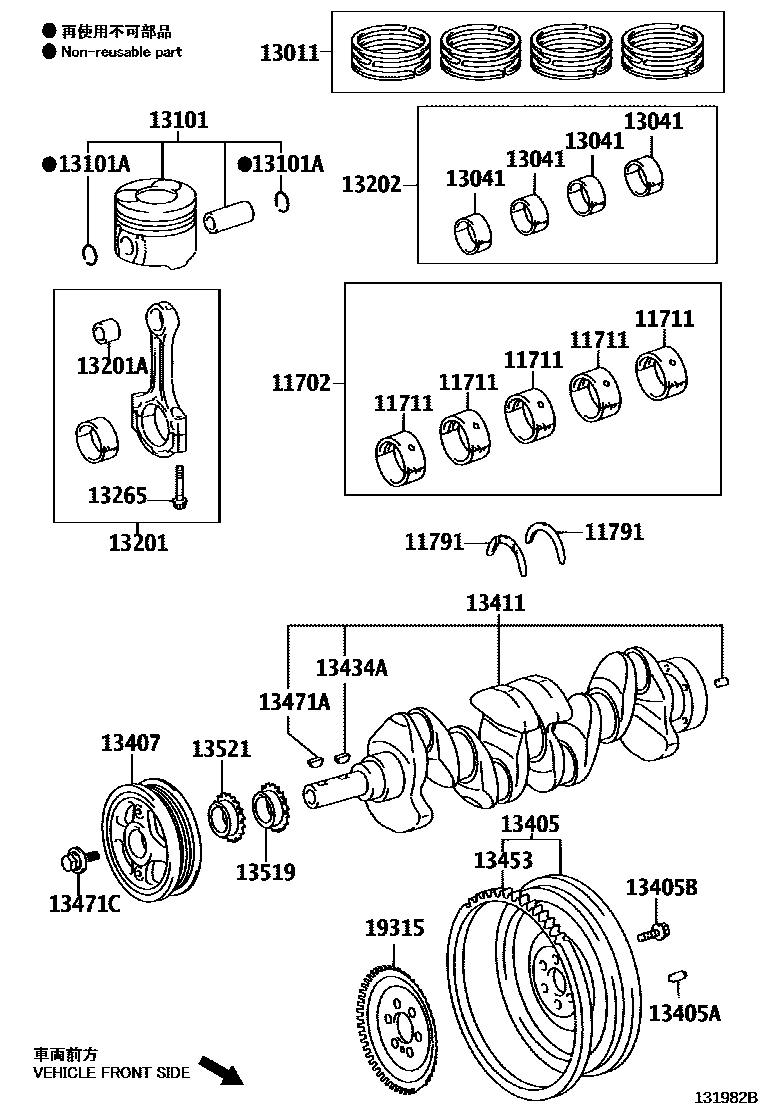

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 3,(L),REFER R/M
MARK 4,(L),REFER R/M
MARK 1,(L),NO.1,2 REFER R/M
MARK 2,(L),NO.1,2 REFER R/M
MARK 3,(L),NO.1,2 REFER R/M
MARK 4,(L),NO.1,2 REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK 1,(J),NO.1,2 REFER R/M
MARK 2,(J),NO.1,2 REFER R/M
MARK3,(J),REFER R/M
MARK 4,(J),NO.1,2 REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,NO.1,NO PAINTED
STD
STD,NO.2
STD
STD
O/S 0.125
O/S 0.25
13011RING SET, PISTON
STD,(L)
STD,(L)
STD
STD
STD,(J)
STD,(J)
STD
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD
STD
STD,(J)
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(L)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(L)
(L)
(J)
(J)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13407DAMPER SUB-ASSY, CRANKSHAFT
(L)
(J)
13411CRANKSHAFT
(L)
(L)
(L)
(L)
(J)
(J)
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13453GEAR, FLYWHEEL RING
(L)
(L)
(J)
(J)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
(L)
PNC 13521=TYPE A
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L),MADE IN TMMNA
(L),MADE IN EUROPE
TYPE A:REFER ILLUST.
(J)
(J)
19315PLATE, CRANK ANGLE SENSOR, NO.1
