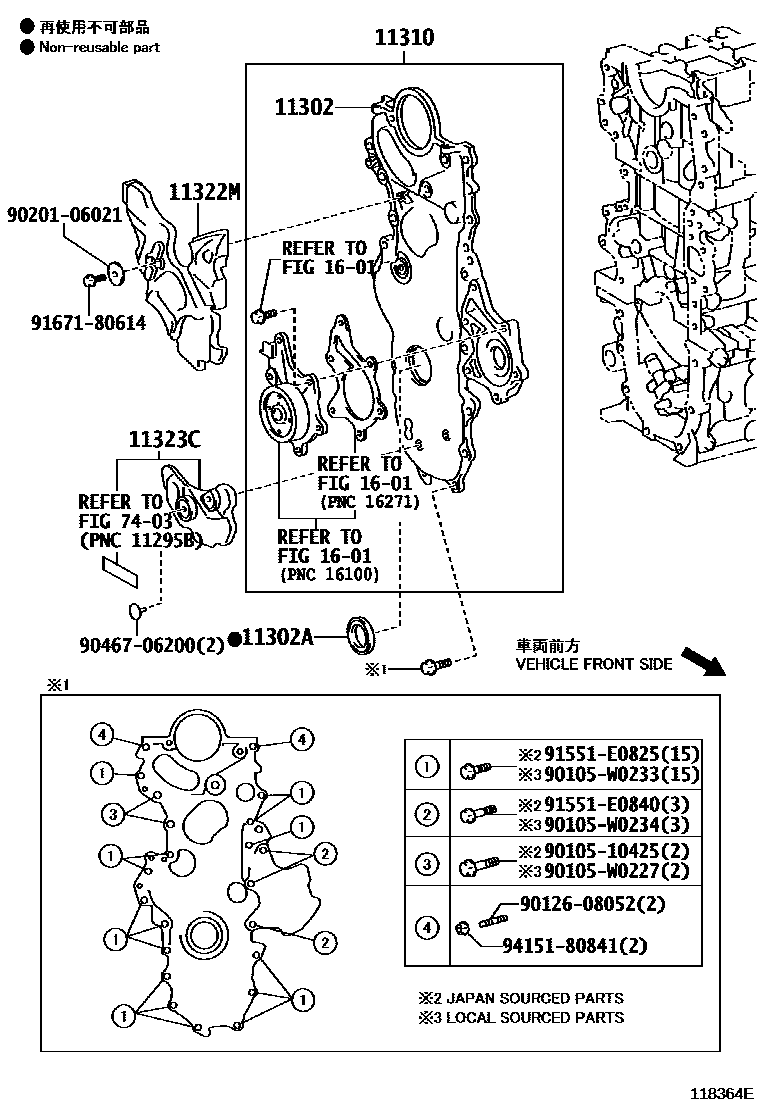

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T070i1ZRFE,2ZRFE..ZRE18#201401-201409

(L)

main11310-0T071i2ZRFE..ZRE182201912-202008

(L)

main11310-0T072i2ZRFE..ZRE182202009

(L)

main11310-37011i1ZRFE,2ZRFE..ZRE18#201606-201912

(J)

main11321-33020i1NDTV..NDE180201306-201507

sub13559-33021

main11321-33021i1NDTV..NDE180..SAP201606

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25032i1NRFE..NRE180..SAP201401-201701

main90311-38089i1ZRFE,2ZRFE..ZRE18#201401-201406

(J)

main90311-38096i1ZRFE,2ZRFE..ZRE18#..SAP201606-201912

main90311-40040i1NDTV..NDE180..TUP201306-201605

main90311-W0012i1ZRFE,2ZRFE..ZRE18#201401-201406

(L)

11310COVER ASSY, TIMING CHAIN

main11310-33011i1NDTV..NDE180201306-201411

main11310-33012i1NDTV..NDE180201412-201507

sub13559-33021

main11310-33013i1NDTV..NDE180..SAP201507-201701

main11310-47041i1NRFE..NRE180201401-201406

main11310-47042i1NRFE..NRE180..SAP201606

sub11310-47043

11322MCOVER, TIMING CHAIN, NO.2

main11322-33020i1NDTV..NDE180201306-201701

11323CCOVER, TIMING CHAIN, NO.3

main11323-33010i1NDTV..NDE180201306-201701

1601

7403

9010510425

main90105-10425

90105W0227

main90105-W0227

90105W0233

main90105-W0233

90105W0234

main90105-W0234

9012608052

main90126-08052

9020106021

main90201-06021

9046706200

main90467-06200

91551E0825

main91551-E0825

91551E0840

main91551-E0840

9167180614

main91671-80614

9415180841

main94151-80841

18 parts on this diagram · 3 diagrams in section
