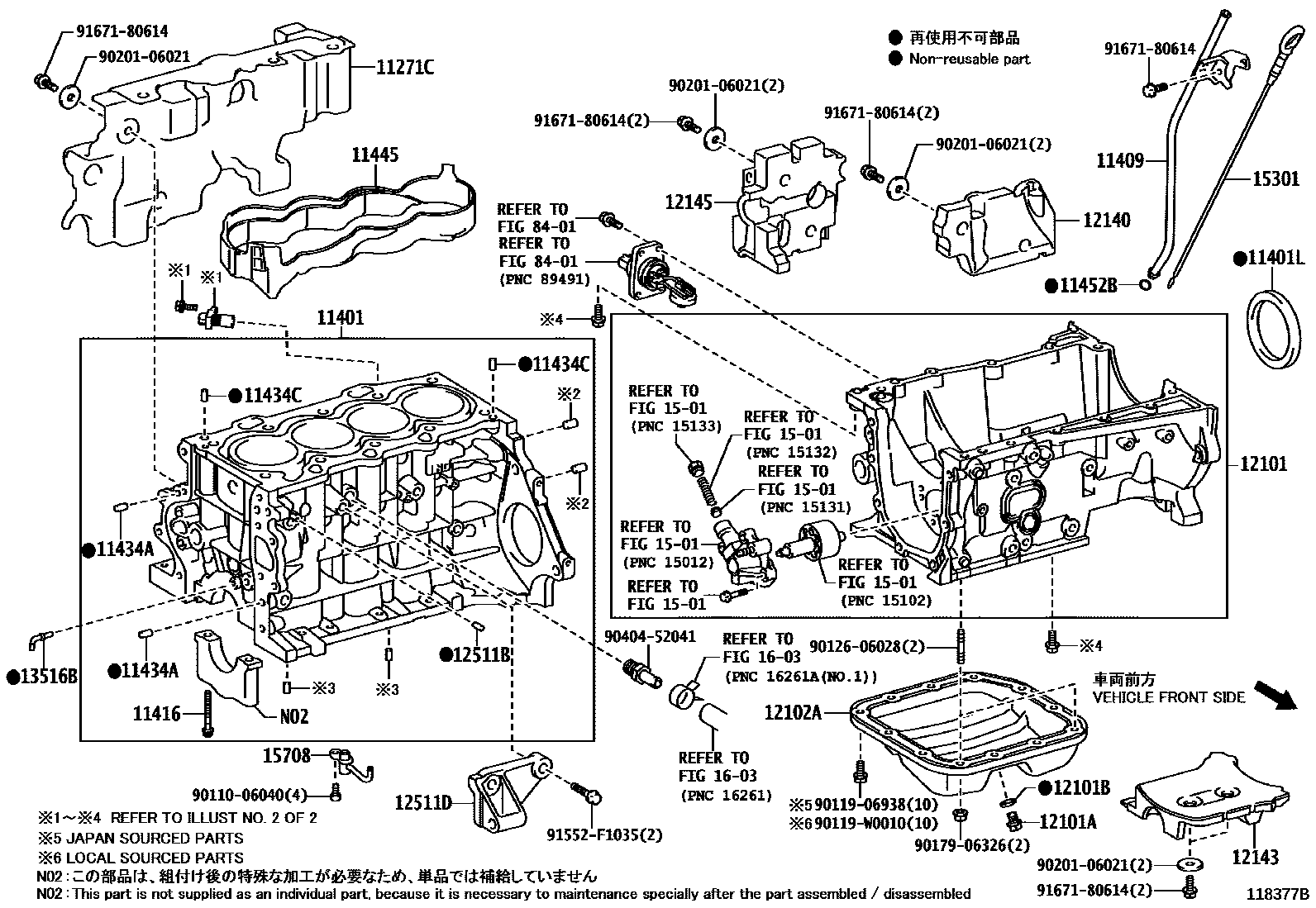

CYLINDER BLOCK
11271CCOVER, CYLIVDER BLOCK SIDE
11401BLOCK SUB-ASSY, CYLINDER
(L)
(L)
(L)
(J)
(J)
11401LSEAL, ENGINE REAR OIL
(J)
(L)
11409GUIDE SUB-ASSY, OIL LEVEL GAGE
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=18,OD=8
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=18,OD=8
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(J)
12140COVER, OIL PAN
(L)
(J)
12143COVER, OIL PAN
(L)
(J)
12145SILENCER, OIL PAN COVER, NO.2
(L)
(J)
12511BPIN, RING(FOR ALTERNATOR BRACKET)
12511DBRACKET, ALTERNATOR
13516BJET, OIL
1501
15301GAGE SUB-ASSY, OIL LEVEL
1603
8401
9011006040
main90110-06040
9011906938
main90119-06938
90119W0010
main90119-W0010
9012606028
main90126-06028
9017906326
main90179-06326
9020106021
main90201-06021
9040452041
main90404-52041
91552F1035
main91552-F1035
9167180614
main91671-80614
34 parts on this diagram · 6 diagrams in section
