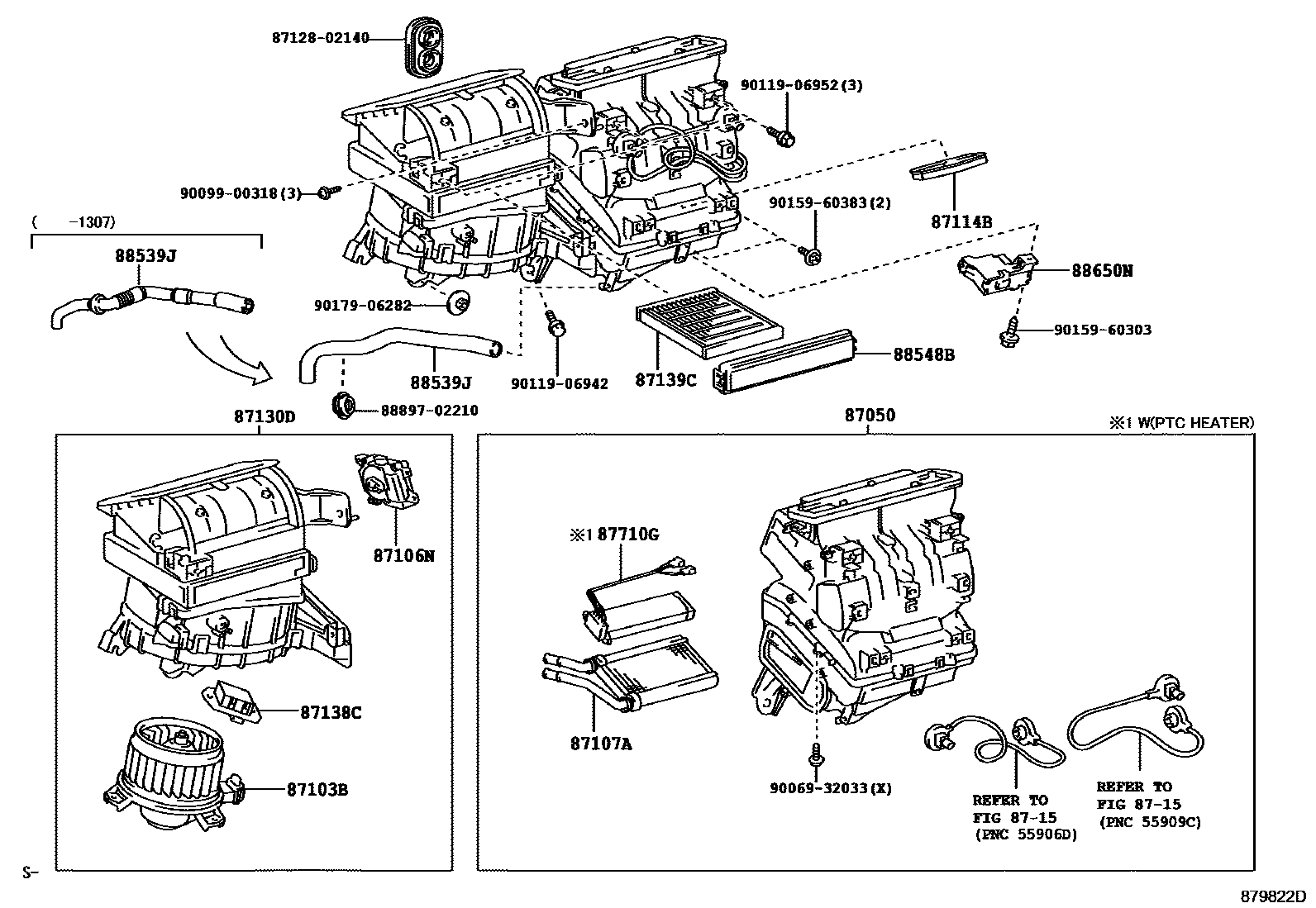

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL HEATER 0002 1MANUAL AIR CONDITIONER 0003 1AUTO AIR CONDITIONER 0004 1MANUAL HEATER 0005 1MANUAL AIR CONDITIONER 0006 1AUTO AIR CONDITIONER 0007 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02A30supersedes 87050-02A70iZRE152..RHD..N;ZRE151,ZZE150..SA;ZRE151,ZZE150..RHD..N..GEN200707-200902

main87050-02A50iZRE153..E201010-201401

main87050-02A60supersedes 87050-02A40iADE150..N..SA201006-201401

AIR CONDITIONER-AUTO AIR CONDITIONER

main87050-02A90supersedes 87050-02B30iZRE151..GEN201404

main87050-02B10supersedes 87050-02A90iZRE151,152..LHD..N201006-201401

AIR CONDITIONER-AUTO AIR CONDITIONER

main87050-02B20supersedes 87050-02B00iADE150..GEN;NDE150..(5F,5FS)..N200710-200903

AUTO AIR CONDITIONER

main87050-02E30supersedes 87050-02E20iNDE150..N200902-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02160iADE150,ZRE15#,ZZE150..RHD..(D,N)200707-200803

main87103-02170iADE150,NDE150,ZRE15#,ZZE150..LHD200710-200803

main87103-02300supersedes 87103-02460iZRE152..E200707-200902

AUTO AIR CONDITIONER

main87103-02460iZRE151..SA201404

main87103-02470iZRE151..GEN201404

main87103-02310supersedes 87103-02470iADE150..GEN200710-200903

AUTO AIR CONDITIONER

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-02350iZRE151..SA201404

main87106-02380supersedes 87106-02350iADE150,ZRE152..E200902-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

main87106-02390iNDE150,ZRE15#,ZZE150..LHD200710-200902

main87106-02400supersedes 87106-02390iADE150..GEN200710-200903

AUTO AIR CONDITIONER

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02210iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

87114BCOVER, HEATER

main87114-0K010iNDE150,ZRE15#,ZZE150200707-200902

87130DBLOWER ASSY

main87130-02390iZRE15#,ZZE150..RHD..(D,N)200707-200803

main87130-02391iZRE15#,ZZE150..RHD..(D,N)200804-200810

main87130-02392iZRE151..D..SA201006-201404

main87130-02410iZRE152..E200707-200810

AUTO AIR CONDITIONER

main87130-02411iZRE153..E201010-201401

main87130-02420iADE150..N..SA200707-200810

AUTO AIR CONDITIONER

main87130-02421supersedes 87130-02402iADE150..N..SA200811-200903

AUTO AIR CONDITIONER

main87130-02430iZRE15#,ZZE150..LHD200710-200803

main87130-02431iZRE15#,ZZE150..LHD200804-200810

main87130-02432iZRE151..GEN201404

main87130-02440iADE150,NDE150..GEN200710-200803

main87130-02441iADE150,NDE150..GEN200804-200810

main87130-02442iNDE150..6FS201006-201208

main87130-02450iZRE15#,ZZE150..LHD..N200710-200810

AUTO AIR CONDITIONER

main87130-02451iNRE150,ZRE15#..LHD..N200902-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

main87130-02460iADE150,NDE150..N..GEN200710-200810

AUTO AIR CONDITIONER

main87130-02461supersedes 87130-02442iADE150,NDE150..N..GEN200902-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

87138CRESISTOR, BLOWER

main87138-0K090iZRE15#,ZZE150..RHD..(D,N)200707-200902

sub87138-0K290

main87138-0K110iNDE150..6FS201006-201208

87139CFILTER, CLEAN AIR

main87139-02200iZRE151201701

POLLEN FILTER

main87139-30040iADE150200707-200903

MICRO DUST FILTER

main87139-52040iZRE151201404-201701

POLLEN FILTER

8715

87710GQUICK HEATER ASSY

main87710-02050iADE150..SA200707-200903

sub87710-02010

main87710-02060iNDE150200710-200902

main87710-02090iNDE150200902-201003

main87710-0K030iNDE150201004-201006

main87710-12020supersedes 87710-02060iADE150..GEN200903-201006

AIR CONDITIONER-WITHOUT

88539JHOSE, DRAIN COOLER

main88539-02130iZRE15#,ZZE150..RHD200707-200902

main88539-02140iNDE150..6F201006-201305

main88539-02280iZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..RHD201307-201401

main88539-02290iZRE151..LHD..N;ADE150,NRE150,ZRE152..LHD201307-201401

88548BCASE, AIR FILTER

main88548-02080iZRE151..D..SA201006-201404

main88548-02090iNDE150..6F201006-201305

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02400iZRE152..N;ZRE151,ZZE150..SA;ZRE151,ZZE150..N..GEN200707-200902

main88650-02410iNDE150200707-200902

main88650-02450iZRE15#,ZZE150..N200707-200902

AUTO AIR CONDITIONER

main88650-02460iADE150..N200707-200903

AUTO AIR CONDITIONER

main88650-02630iNRE150,ZRE15#..D..GEN200902-201006

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88650-02640iNDE150..6FS201006-201208

main88650-02670iNRE150,ZRE15#..N200902-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

main88650-02680supersedes 88650-02640iADE150..E200903-201006

main88650-02890supersedes 88650-02890iZRE151201404

main88650-02A00iZRE153..E201010-201401

8712802140GROMMET, HEATER

main87128-02140

8889702210VALVE, COOLER MAGNET

main88897-02210

9006932033

main90069-32033

9009900318

main90099-00318

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

22 parts on this diagram · 7 diagrams in section
