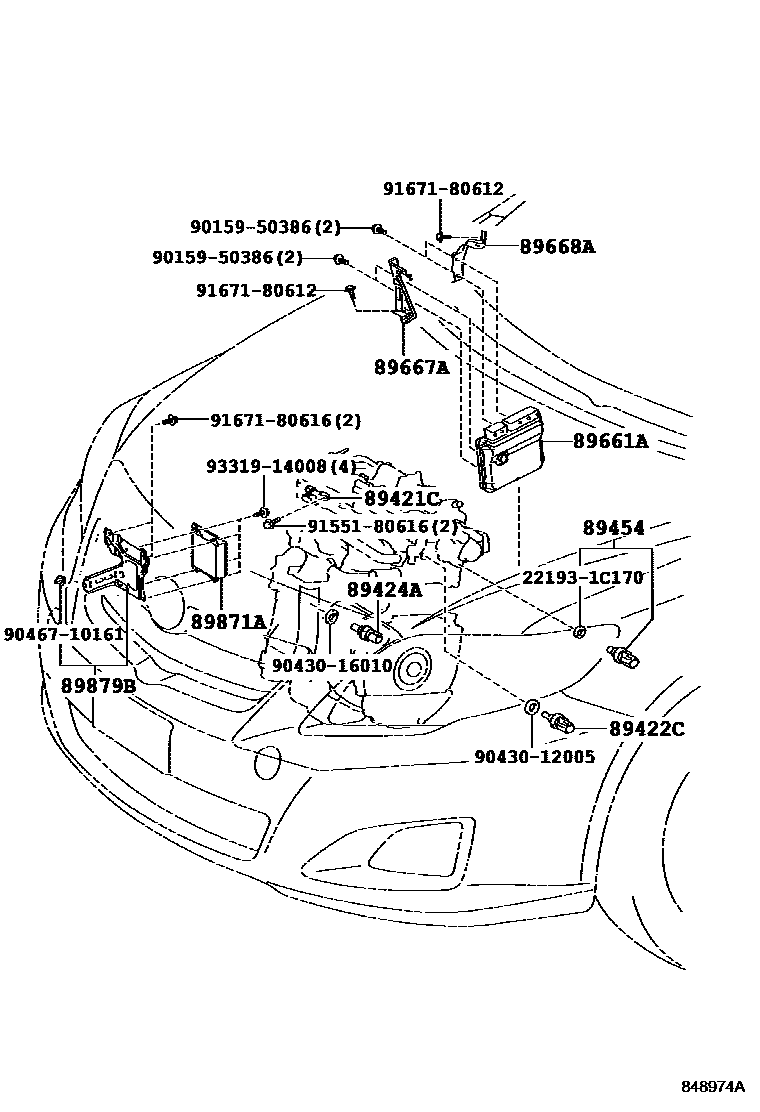

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-12220iNDE150200710-200902

main89421-20200iADE150200707-200903

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iADE150,NDE150201006

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iADE150200707-200903

89454SENSOR, FUEL TEMPERATURE

main89454-60020iADE150200707-200903

89661ACOMPUTER, ENGINE CONTROL

main89660-02L80iNDE150..5F200710-200902

sub89660-02L81

main89660-02L90iNDE150..5FS200710-200902

sub89660-02L91

main89660-02W80iNDE150..6F200902-200910

main89660-02W81iNDE150..6F201006-201211

main89660-02W90iNDE150..6FS200902-200910

main89660-02W91iNDE150..6FS201006-201208

main89660-0ZS50iNDE150201211-201306

main89661-02F61iADE150200707-200808

main89661-02F62iADE150200809-200903

main89661-02S40iADE150200903-201006

main89661-02S41iADE150201103

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02180iADE150200707-200903

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02170iADE150201006

89871ADRIVER, INJECTOR

main89871-20080iADE150200903-201006

main89871-71010iADE150200707-200903

89879BBRACKET, INJECTOR DRIVER

main89879-12060iADE150200707-200903

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

9015950386

main90159-50386

9043012005

main90430-12005

9043016010

main90430-16010

9046710161

main90467-10161

9155180616

main91551-80616

9167180612

main91671-80612

9167180616

main91671-80616

9331914008

main93319-14008

18 parts on this diagram · 4 diagrams in section
