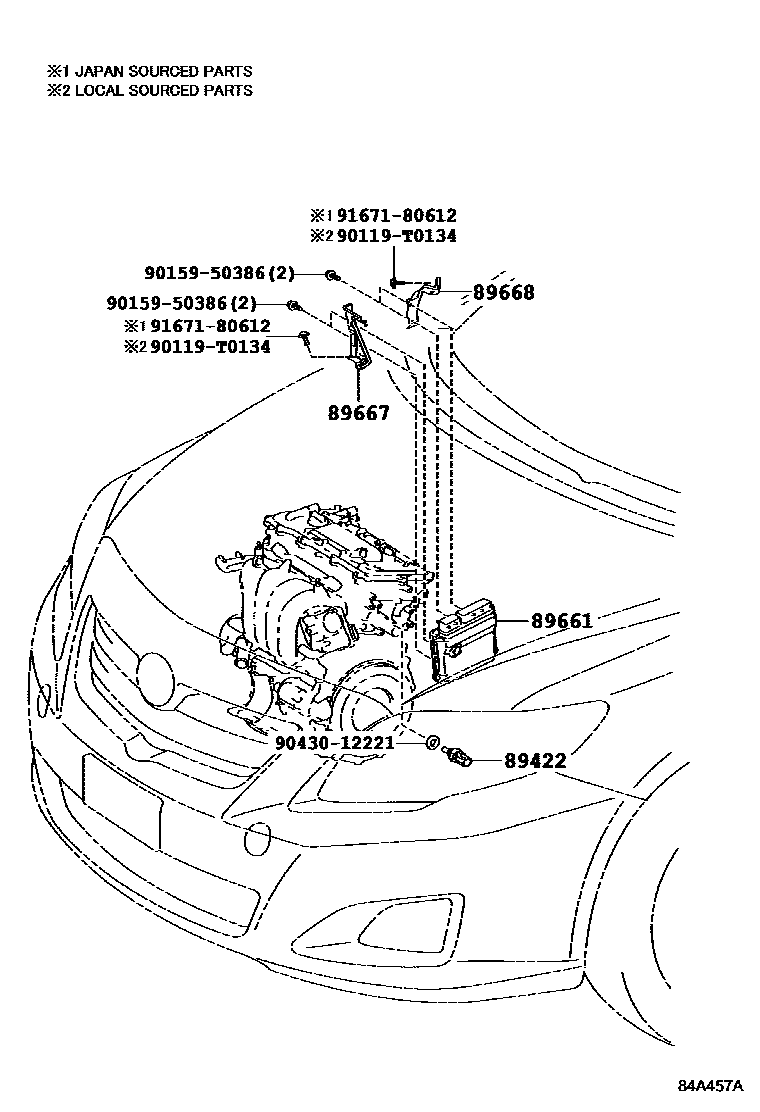

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE151..6F..N;ZRE151..RHD..4FC;NRE150,ZRE152,153;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN200707-201404

main89422-35010iZZE150200707-200902

89661COMPUTER, ENGINE CONTROL

main89660-02K60iZZE150200707-200902

main89661-02E61iZRE151..5F200707-200902

main89661-02E81iZRE151..5FS200707-200902

main89661-02F10iZRE152..6F200707-200902

main89661-02G60iZRE152..4FC200707-200902

main89661-02S70iNRE150200902-201103

sub89661-02S71

main89661-02S71iNRE150201104-201401

main89661-02U00iZRE151..6F200902-201103

sub89661-02U01

main89661-02U01iZRE151..6F201104-201404

main89661-02U10iZRE152..6F200902-201103

sub89661-02U11

main89661-02U11iZRE152..6F201104-201401

main89661-02U30iZRE151..4FC200902-201103

main89661-02U31iZRE151..RHD..4FC;ZRE151..LHD..4FC..N201104-201404

main89661-02U40iZRE152..4FC200902-201103

sub89661-02U41

main89661-02U41iZRE152..4FC201104-201401

main89661-02X90iZRE153..6F201010-201103

sub89661-02X91

main89661-02X91iZRE153..6F201104-201401

main89661-02Y00iZRE153..4FC201010-201103

sub89661-02Y01

main89661-02Y01iZRE153..4FC201104-201401

main89661-0Z610iZRE151..4FC201404

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02180iZRE152..4FC;NRE150,ZRE151200707-201404

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02140iZRE15#200707-201404

90119T0134

main90119-T0134

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

8 parts on this diagram · 3 diagrams in section
