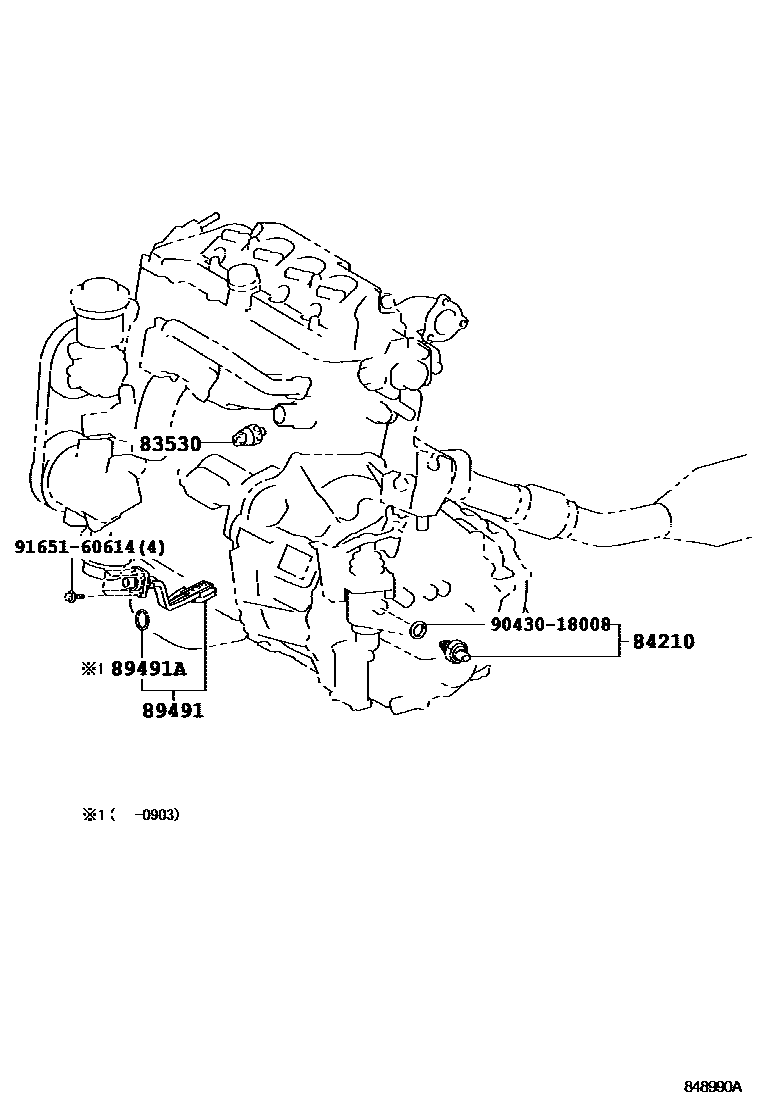

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZRE15#200707-201401

VALEO

main83530-05010iZRE151201404

(L)

main83530-12050iZRE15#201310-201402

sub83530-12060

main83530-12060iZRE151201402-201404

YAZAKI

main83530-12070iZRE151201402-201404

DENSO

sub83530-12060

main83530-28010iADE150200707-201401

DENSO

main83530-28020iZRE15#200707-201401

DENSO

main83530-28020iZRE151201404

(J),DENSO

main83530-60010iADE150,NDE150200707-201401

YAZAKI

main83530-60020iZRE151201404

(J),YAZAKI

main83530-60020iNRE150,ZRE15#200707-201401

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNDE150..6FS;ADE150,ZRE153..6F200707-201206

sub84210-52050

main84210-52010iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

main84210-52050iZRE151..6F201205-201404

89491SENSOR, ENGINE OIL LEVEL

main89491-12030iNDE150200710-200902

main89491-20120iADE150200707-201401

main89491-52030iNDE150201006-201112

*132

sub89491-52031

main89491-52030iNDE150201008-201202

*251

sub89491-52031

main89491-52030iNDE150200902-201006

sub89491-52031

main89491-52031iNDE150..6FS201112-201306

*132

main89491-52031iNDE150..6FS201202-201306

*251

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iNDE150200707-200903

main90430-36005iNDE150..6FS201008-201306

*251

main90430-36005iNDE150200902-201006

main90430-36005iNDE150..6FS201006-201306

*132

9043018008

main90430-18008

9165160614

main91651-60614
