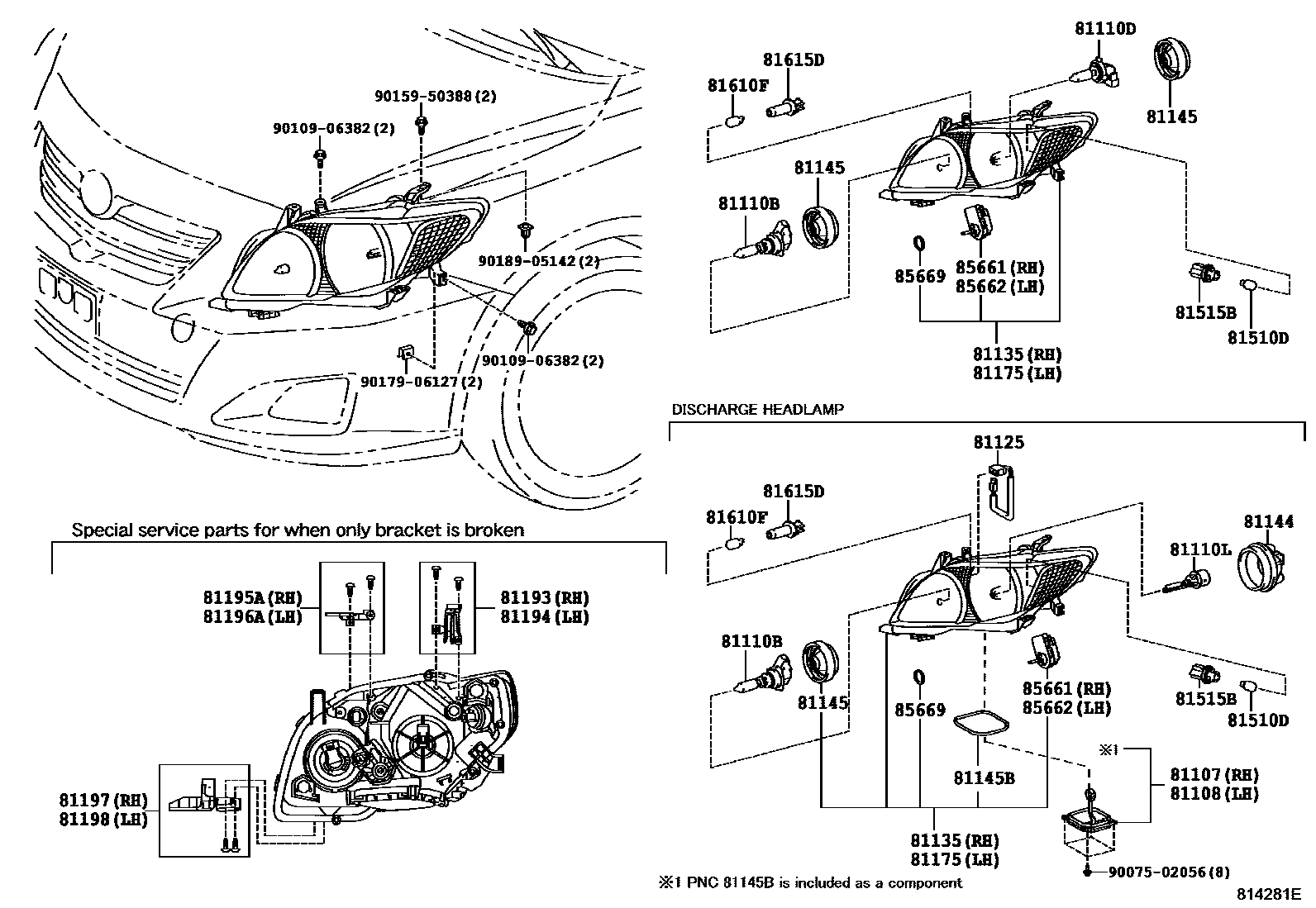

HEADLAMP

0001 1 0002 1

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-12A80iADE150,ZRE15#..E,N200902-201006

HEADLAMP-DISCHARGE

main81107-12A81iZRE151..4FC..SA201006-201208

HEADLAMP-DISCHARGE

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-12A80iZRE15#..E,N200707-200902

HEADLAMP-DISCHARGE

main81107-12A81iZRE151..4FC..SA201006-201208

HEADLAMP-DISCHARGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iADE150,NDE150,NRE150,ZRE15#200902-201006

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iADE150200707-200903

12V 51W,HALOGEN

81110LBULB, DISCHARGE HEADLAMP

main90981-20015×2iADE150,ZRE15#..E,N200707-200902

45V 35W,HEADLAMP-DISCHARGE

main90981-20029×2iADE150200902-200903

43V 35W,HEADLAMP-DISCHARGE

81125CORD, HEADLAMP

main81125-12A90×2iZRE151..4FC..SA201006-201208

HEADLAMP-DISCHARGE

81135UNIT ASSY, HEADLAMP, RH

main81130-02550iADE150,NDE150,NRE150,ZRE15#..LHD200902-201006

main81130-02560iZRE15#,ZZE150..RHD200707-200902

main81130-02B10iZRE151..LHD..D201006-201404

main81130-02B80iZRE151..D..SA201006-201404

main81130-02J40iZRE151..SA201404

main81130-02J50iZRE151..GEN201404

main81145-12A80supersedes 81130-02550iZRE15#..LHD..N200710-200902

HEADLAMP-DISCHARGE

main81145-12A90supersedes 81130-02560iADE150,ZRE15#..RHD..(E,N)200902-201006

HEADLAMP-DISCHARGE

main81145-12E00iZRE151..4FC..SA201006-201208

HEADLAMP-DISCHARGE

main81145-12E10iZRE151,152..LHD..4FC..N201006-201401

HEADLAMP-DISCHARGE

81144COVER, HEADLAMP, NO.1

main90075-66003×2iADE150,ZRE15#..E,N200902-201006

HEADLAMP-DISCHARGE

81145COVER, HEADLAMP, NO.2

main90075-65006×4supersedes 90075-65006iADE150,ZRE15#..E,N200902-201006

HEADLAMP-DISCHARGE

81145BGASKET, HEADLAMP COVER, NO.1

main90075-68007iADE150200707-200903

HEADLAMP-DISCHARGE

81175UNIT ASSY, HEADLAMP, LH

main81170-02550iNDE150,ZRE15#,ZZE150..LHD200710-200902

main81170-02560iZRE15#,ZZE150..RHD200707-200902

main81170-02B10iNDE150..6FS201006-201208

main81170-02B80iZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..RHD201006-201401

main81170-02J40iZRE151..SA201404

main81170-02J50iZRE151..GEN201404

main81185-12A80supersedes 81170-02550iADE150,ZRE15#..LHD..N200902-201006

HEADLAMP-DISCHARGE

main81185-12A90supersedes 81170-02560iADE150..SA200707-200903

HEADLAMP-DISCHARGE

main81185-12E00iADE150,ZRE153..SA201006-201401

HEADLAMP-DISCHARGE

main81185-12E10iZRE151,152..LHD..4FC..N201006-201401

HEADLAMP-DISCHARGE

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12050iADE150,NDE150,NRE150,ZRE15#200902-201006

main81193-12120iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12050iNDE150,ZRE15#,ZZE150200707-200902

main81194-12110iNDE150..6FS201006-201208

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12050iNDE150,ZRE15#,ZZE150200707-200902

main81195-12140iNDE150..6FS201006-201208

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12050iNDE150,ZRE15#,ZZE150200707-200902

main81196-12140iNDE150..6FS201006-201208

81197BRACKET, HEADLAMP, LOWER RH

main81197-12050iNDE150,ZRE15#,ZZE150200707-200902

main81197-12100iNDE150..6FS201006-201208

81198BRACKET, HEADLAMP, LWR LH

main81198-12050iNDE150,ZRE15#,ZZE150200707-200902

main81198-12110iNDE150..6FS201006-201208

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNDE150..6F201006-201304

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iADE150,NDE150,NRE150,ZRE15#200902-201006

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZRE151..D..SA;ZRE151..LHD..D201006-201404

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iNDE150,ZRE15#,ZZE150200707-200902

85661MOTOR, HEADLAMP LEVELING, RH

main85661-0P010iNDE150..6F201006-201304

main85661-12010iZRE151201404

main85661-12020supersedes 85661-12010iZRE151..4FC..SA201006-201208

HEADLAMP-DISCHARGE

85662MOTOR, HEADLAMP LEVELING, LH

main85661-0P010iNDE150..6F201006-201304

main85661-12010iADE150,NDE150,NRE150,ZRE15#200902-201006

main85661-12020supersedes 85661-12010iZRE15#..E,N200707-200902

HEADLAMP-DISCHARGE

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNDE150,ZRE15#,ZZE150200707-200902

9007502056

main90075-02056

9010906382

main90109-06382

9015950388

main90159-50388

9017906127

main90179-06127

9018905142

main90189-05142

29 parts on this diagram · 2 diagrams in section
