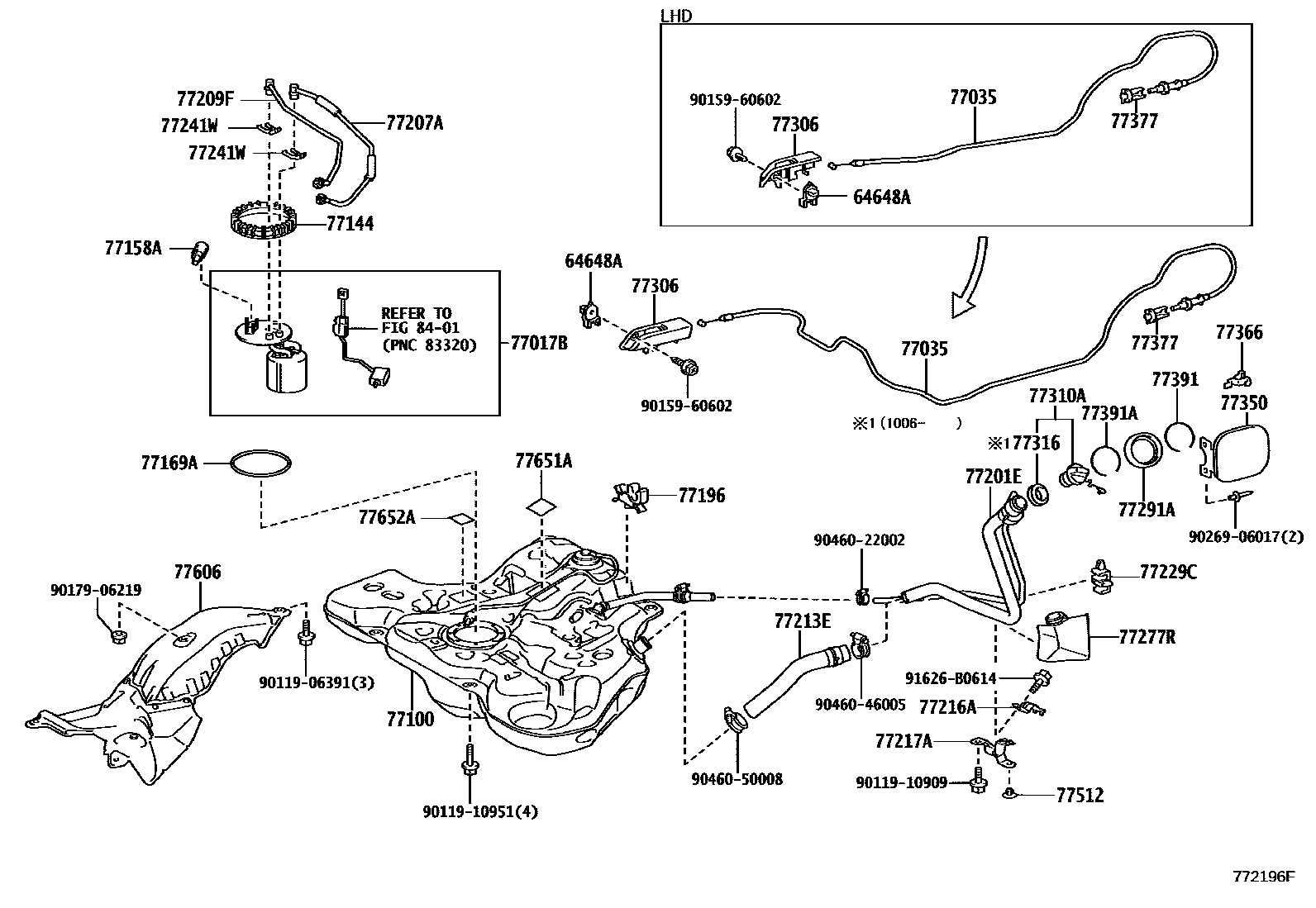

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iNDE150,ZRE15#,ZZE150¥210200707-201404

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-02020iADE150,NDE150200707-201212

sub77010-02080

main77010-02080iADE150,NDE150201212-201401

sub77010-02081

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02220iADE150,NRE150,ZRE15#..RHD200707-201209

sub77035-12630

main77035-02230iNDE150..6FS200710-201209

sub77035-12640

main77035-12630iZRE151..SA201209-201404

main77035-12640iZRE151..LHD..N;ADE150,NRE150,ZRE152..LHD201209-201404

77100TANK ASSY, FUEL

main77001-02290iZRE15#,ZZE150200707-200809

sub77001-02291¥34,900

main77001-02291iZRE15#,ZZE150¥34,900200810-201404

main77001-02300iADE150,NDE150200707-200809

sub77001-02301

main77001-02301iADE150200810-201401

77144RETAINER, FUEL PUMP GAUGE

main77144-02080iADE150¥2,490200707-201404

77158ASUPPORT, TANK SUCTION TUBE

main77158-0D020iNDE150¥380200707-201401

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02070iADE150200707-201404

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iADE150¥520200707-201404

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12680iZRE15#,ZZE150200707-200709

sub77201-12790¥11,300

main77201-12690iADE150200707-200709

sub77201-12800

main77201-12790iZRE15#,ZZE150¥11,300200710-201303

sub77201-12791¥11,300

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

main77201-12800iADE150200710-201401

sub77201-12801

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

main77201-12A40iZRE151..6F..N;ZRE151..RHD..4FC;NRE150,ZRE152,153;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN201304-201404

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-02060iNDE150200707-201401

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02140iADE150200707-201404

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12300iNDE150,ZRE15#,ZZE150200707-201404

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS¥350200707-201404

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS¥630200707-201404

77229CCLAMP, BREATHER TUBE

main77229-12070iNDE150,ZRE15#,ZZE150¥520200707-201404

77241WCLIP, TUBE JOINT

main77241-32060iZRE15#,ZZE150¥80200707-201404

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iNDE150,ZRE15#,ZZE150¥1,260200707-201404

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02090iZRE151..D..SA;ZRE151..LHD..D200707-201404

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-33020iZRE151..SA¥2,840200707-201404

main64606-33030iZRE151..GEN¥3,760200710-201404

77310ACAP ASSY, FUEL TANK

main77300-20020iNDE150..6FS¥2,200200901-201401

main77300-52030iNRE150,ZRE15#¥1,560200707-201404

77316GASKET, FUEL TANK CAP

main77316-52040iNDE150..6FS¥230201006-201404

77350LID ASSY, FUEL FILLER OPENING

main77350-12490iNDE150,ZRE15#,ZZE150200707-201404

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-02010iNDE150,ZRE15#,ZZE150200707-201404

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNDE150,ZRE15#,ZZE150¥300200707-201404

77391RING, FUEL INLET BOX

main77391-12020iNDE150,ZRE15#,ZZE150¥180200707-201404

77391ARING, FUEL INLET BOX

main77391-53010iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153¥300200707-201404

77512BRACKET, FUEL TANK, REAR

main77512-35140iADE150¥230200707-201404

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02040iNDE150,ZRE15#,ZZE150200707-201404

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iNDE150,ZRE15#,ZZE150¥230200707-201404

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iADE150,NDE150¥200200707-201404

8401

9011906391

main90119-06391¥100

9011910909

main90119-10909¥100

9011910951

main90119-10951¥160

9015960602

main90159-60602¥60

9017906219

main90179-06219¥70

9026906017

main90269-06017¥140

9046022002

main90460-22002¥530

9046046005

main90460-46005¥190

9046050008

main90460-50008¥240

91626B0614

main91626-B0614¥60
