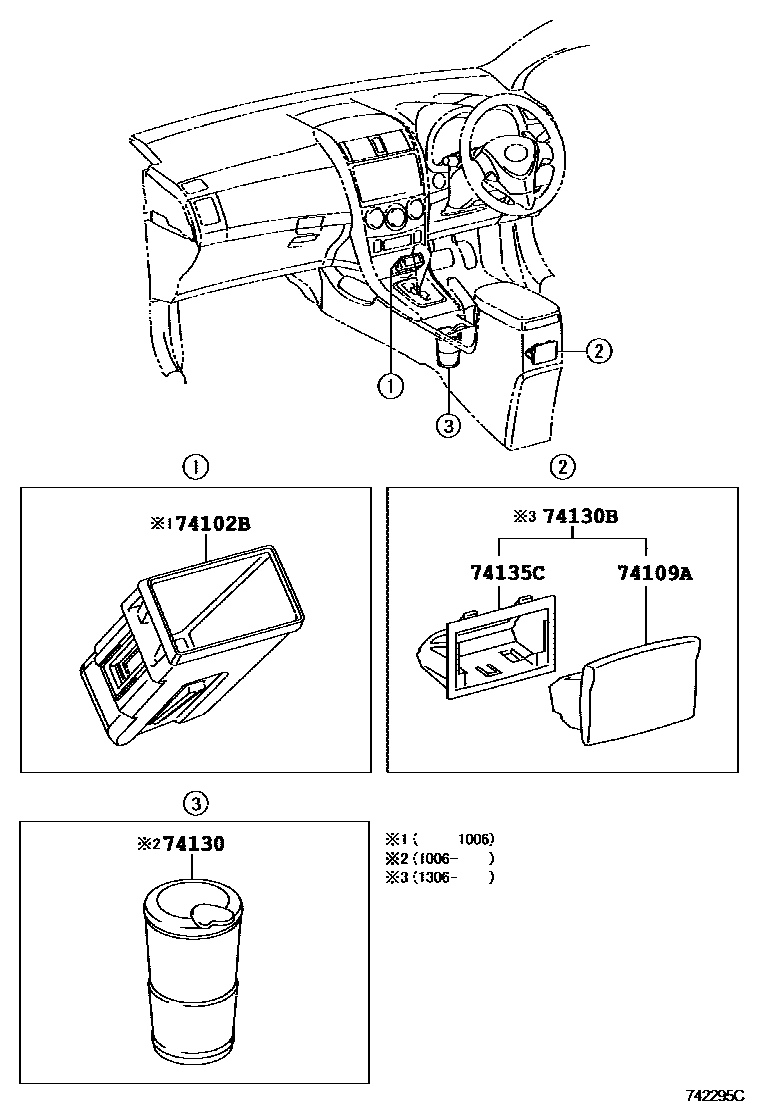

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12410iADE150,NDE150,NRE150,ZRE15#200707-201006

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-20100-B2iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-201404

DK.GRAY,TRIM1#

sub74109-20100

main74109-20100-E2iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

sub74109-20100

74130RECEPTACLE ASSY, REAR ASH

main74110-42010iZRE151..N;ZRE151..D..GEN;ZRE151..6F..D..SA;ADE150,NDE150,NRE150,ZRE152,153201203

main74130-12070iADE150,NDE150,NRE150,ZRE15#201006-201203

74130BRECEPTACLE ASSY, REAR ASH

main74130-20140-B2iADE150,NRE150,ZRE15#201306-201404

DK.GRAY,TRIM1#

main74130-20140-E2iADE150,NRE150,ZRE15#..E,N201306-201401

GREGE,TRIM4#

74135CRETAINER, ASH RECEPTACLE

main74135-20090iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-201006

5 parts on this diagram · 1 diagram in section
