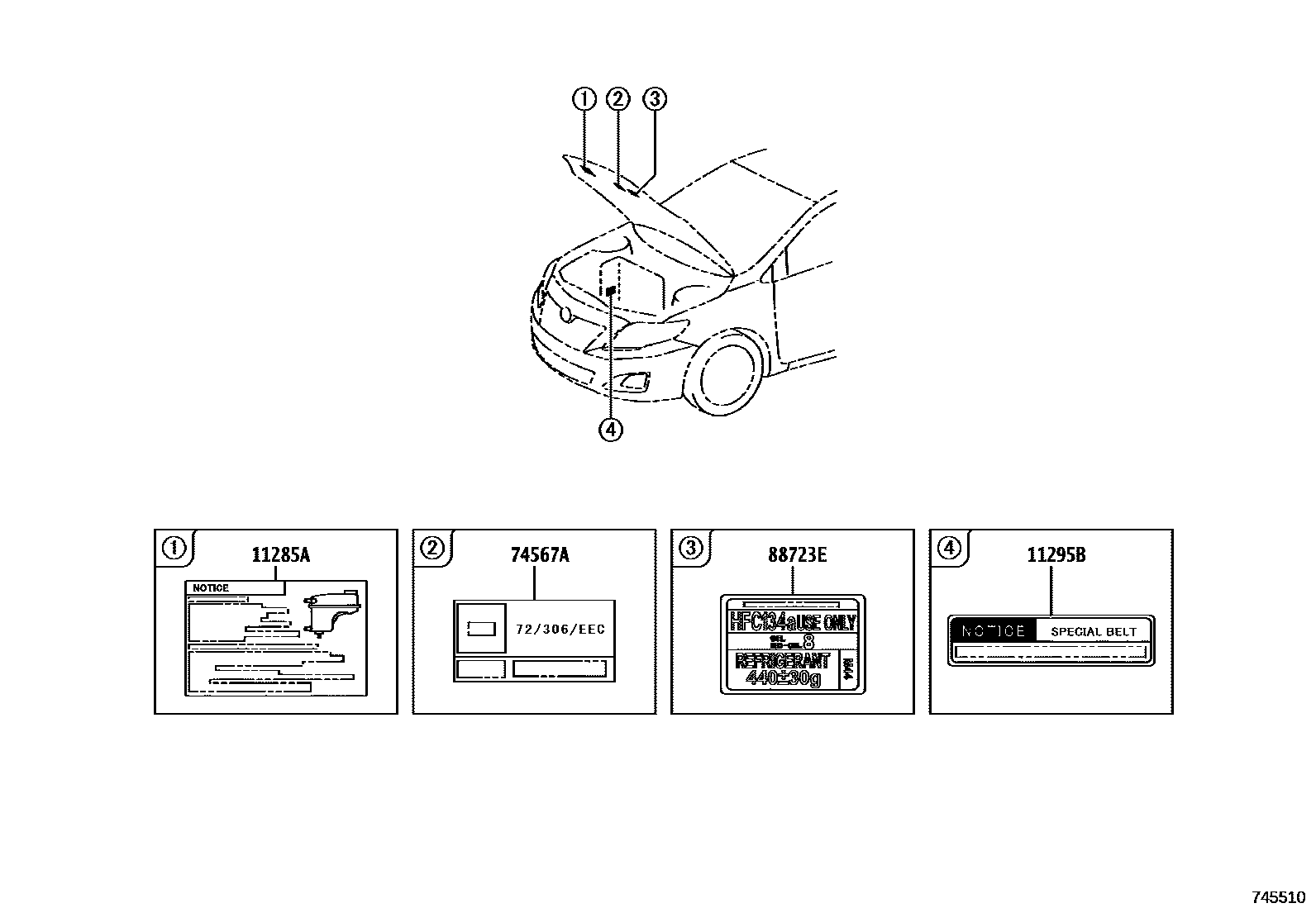

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR & INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-22080i1ZRFE,2ZRFE,4ZZFE..ZRE15#,ZZE150¥320200707-200902

main11285-26010i1ADFTV,1NDTV..ADE150,NDE150200707-200810

sub11285-33030¥200

main11285-33030i1ADFTV,1NRFE..ADE150,NRE150¥200200811-201401

main11285-33040i1NDTV..NDE150¥220200811-201211

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-33010i1NDTV..NDE150¥250200902-201306

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iADE150¥110200707-201401

main74567-26201iNDE150¥160200710-201306

88723ELABEL, COOLER SERVICE CAUTION

main88733-02010iZRE151..D..SA200902-201404

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88733-02010iZRE151..D..SA201006-201404

AIR CONDITIONER-WITHOUT

main88733-02010iZRE151200707-201208

4 parts on this diagram · 2 diagrams in section
